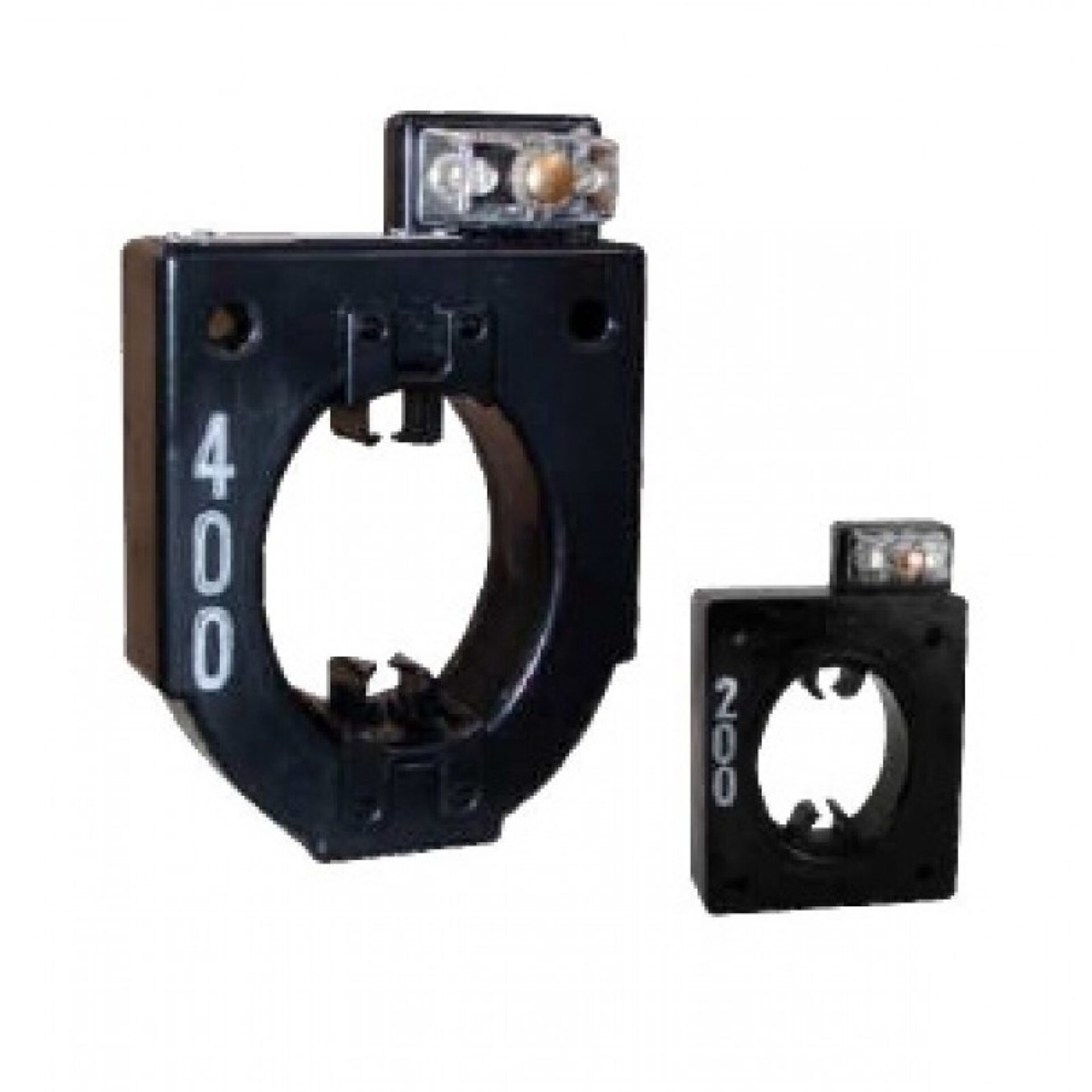

Model JAB-0C Indoor/Outdoor Current Transformer
Introducing the Model JAB-0C Indoor/Outdoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. This advanced current transformer is designed to provide accurate and reliable current measurement in a variety of electrical applications, making it an essential component for both industrial and commercial settings. Whether you need to monitor electrical systems indoors or outdoors, the Model JAB-0C offers versatile performance and durability to meet your specific needs.
Overview
Introducing the Model JAB-0C Indoor/Outdoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. This advanced current transformer is designed to provide accurate and reliable current measurement in a variety of electrical applications, making it an essential component for both industrial and commercial settings. Whether you need to monitor electrical systems indoors or outdoors, the Model JAB-0C offers versatile performance and durability to meet your specific needs.
a globally recognized leader in electrical equipment and innovation, this current transformer embodies the company's commitment to quality and precision. Spectrum Industries, a trusted provider of electrical instrumentation, ensures that this product adheres to the highest standards of performance and reliability. The Model JAB-0C is engineered to deliver precise readings while withstanding harsh environmental conditions, making it suitable for outdoor installations as well as indoor setups.
Designed with ease of installation and maintenance in mind, the Model JAB-0C features a robust construction that guarantees long-term durability. Its compact form factor allows for seamless integration into existing electrical systems, ensuring minimal disruption during setup. Whether for new installations or upgrades, this current transformer provides a dependable solution for accurate current measurement, helping you maintain optimal system performance and safety.
Request a Quote for Model JAB-0C Indoor/Outdoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 8.25 lbs
- Application
- Metering
- Window Size
- 4.50 in x 3.50 in
- Insulation Class
- 0.6 kV; BIL 10 kV full wave
- Case Material
- Valox thermoplastic polyester resin (standard case); polyurethane resin (cast units)
- Secondary Terminal
- Tin plated brass, compression type, 0.275 in diameter cross-hole, 1/4-28 clamp screw, interlocked shorting device under clear terminal cover
- Primary Current Range
- 200-3,000 A
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 200 | 5 | 200:5 | 0.3B0.1 | 4 | 2.9 |
| 200 | 5 | 200:5 | 0.3B0.1 | 4 | 2.9 |
| 300 | 5 | 300:5 | 0.3B0.2 | 4 | 2.9 |
| 300 | 5 | 300:5 | 0.3B0.2 | 4 | 2.9 |
| 400 | 5 | 400:5 | 0.3B0.2 | 4 | 2.9 |
| 400 | 5 | 400:5 | 0.3B0.2 | 4 | 2.9 |
| 500 | 5 | 500:5 | 0.3B0.5 | 3 | 2.2 |
| 500 | 5 | 500:5 | 0.3B0.5 | 3 | 2.2 |
| 600 | 5 | 600:5 | 0.3B0.5 | 3 | 2.2 |
| 600 | 5 | 600:5 | 0.3B0.5 | 3 | 2.2 |
| 800 | 5 | 800:5 | 0.3B0.5 | 3 | 2.2 |
| 800 | 5 | 800:5 | 0.3B0.5 | 3 | 2.2 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 2 | 1.5 |
| 1200 | 5 | 1200:5 | 0.3B0.5 | 2 | 1.5 |
| 1200 | 5 | 1200:5 | 0.3B0.5 | 2 | 1.5 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 2 | 1.5 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 2 | 1.5 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1.5 | 1.1 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1.5 | 1.1 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 1.33 | 1 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 1.33 | 1 |
| 4000 | 5 | 4000:5 | 0.3B1.8 | 1 | 0.7 |
| 4000 | 5 | 4000:5 | 0.3B1.8 | 1 | 0.7 |
| 200 | 5 | 200:5 | 0.3B0.2 | 4 | 4 |
| 300 | 5 | 300:5 | 0.3B0.5 | 3 | 2.2 |
| 400 | 5 | 400:5 | 0.3B0.5 | 4 | 2.9 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 3 | 2.4 |
