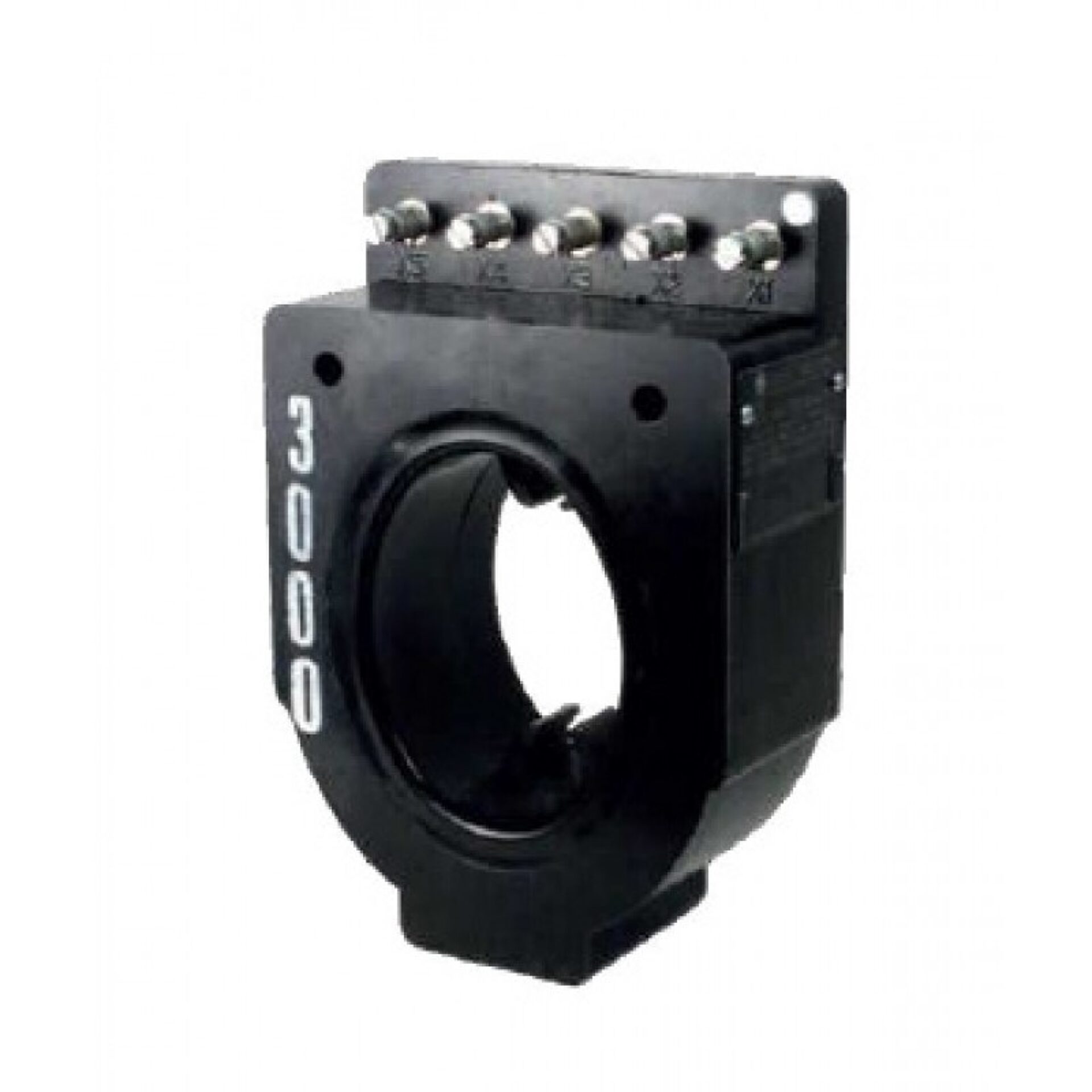

Model JAB-0C Multi-Tap Indoor Current Transformer
Introducing the Model JAB-0C Multi-Tap Indoor Current Transformer, a high-quality solution, distributed exclusively through Spectrum Industries. Engineered to provide precise current measurement in various electrical applications, this transformer ensures reliable performance in indoor environments where accurate monitoring is essential.
Overview
Introducing the Model JAB-0C Multi-Tap Indoor Current Transformer, a high-quality solution, distributed exclusively through Spectrum Industries. Engineered to provide precise current measurement in various electrical applications, this transformer ensures reliable performance in indoor environments where accurate monitoring is essential.
a global leader in electrical and electronic manufacturing, the Model JAB-0C embodies advanced technology and robust construction. Its multi-tap design allows for flexible voltage and current configurations, making it suitable for a wide range of industrial, commercial, and utility applications. The transformer’s compact and durable construction ensures it can withstand the demands of indoor settings, providing consistent and accurate readings over time.
Spectrum Industries is proud to offer this innovative product to meet the needs of engineers, technicians, and electrical professionals seeking dependable current measurement solutions. The Model JAB-0C’s ease of installation and maintenance, combined with ’s renowned quality standards, make it an excellent choice for enhancing electrical system performance and safety. Whether used in new installations or as part of an existing system upgrade, this current transformer delivers precision, reliability, and peace of mind for your electrical measurement needs.
Request a Quote for Model JAB-0C Multi-Tap Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 8.25 lbs
- Mounting
- Indoor
- Application
- Metering, Distribution
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- Window Size
- 4.50" x 3.50"
- Case Material
- Molded thermoplastic polyester resin case (standard); polyurethane resin cast case for rectangular/cast catalog numbers, slightly larger dimensions.
- Terminals
- Tin plated brass, compression type, 0.275" diameter cross-hole, 1/4-28 clamp screw; shorting device interlocked to terminal cover.
- High-Temperature Option
- Version available for unusually high ambient temperatures (no numeric limits given).
- Style Option
- Grecian Urn style available, cast version only.
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 200 | 5 | 200:5 | 0.3B0.2 | 4 | 4 |
| 200 | 5 | 200:5 | 0.3B0.1 | 4 | 2.9 |
| 200 | 5 | 200:5 | 0.3B0.1 | 4 | 2.9 |
| 300 | 5 | 300:5 | 0.3B0.5 | 3 | 2.2 |
| 300 | 5 | 300:5 | 0.3B0.2 | 4 | 2.9 |
| 300 | 5 | 300:5 | 0.3B0.2 | 4 | 2.9 |
| 400 | 5 | 400:5 | 0.3B0.2 | 4 | 2.9 |
| 400 | 5 | 400:5 | 0.3B0.2 | 4 | 2.9 |
| 400 | 5 | 400:5 | 0.3B0.5 | 4 | 2.9 |
| 500 | 5 | 500:5 | 0.3B0.5 | 3 | 2.2 |
| 500 | 5 | 500:5 | 0.3B0.5 | 3 | 2.2 |
| 600 | 5 | 600:5 | 0.3B0.5 | 3 | 2.2 |
| 600 | 5 | 600:5 | 0.3B0.5 | 3 | 2.2 |
| 800 | 5 | 800:5 | 0.3B0.5 | 3 | 2.2 |
| 800 | 5 | 800:5 | 0.3B0.5 | 3 | 2.2 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 2 | 1.5 |
| 1200 | 5 | 1200:5 | 0.3B0.5 | 2 | 1.5 |
| 1200 | 5 | 1200:5 | 0.3B0.5 | 2 | 1.5 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 2 | 1.5 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 2 | 1.5 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 3 | 2.4 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1.5 | 1.1 |
| 2000 | 5 | 2000:5 | 0.3B1.8 | 1.5 | 1.1 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 1.33 | 1 |
| 3000 | 5 | 3000:5 | 0.3B1.8 | 1.33 | 1 |
| 4000 | 5 | 4000:5 | 0.3B1.8 | 1 | 0.7 |
| 4000 | 5 | 4000:5 | 0.3B1.8 | 1 | 0.7 |
