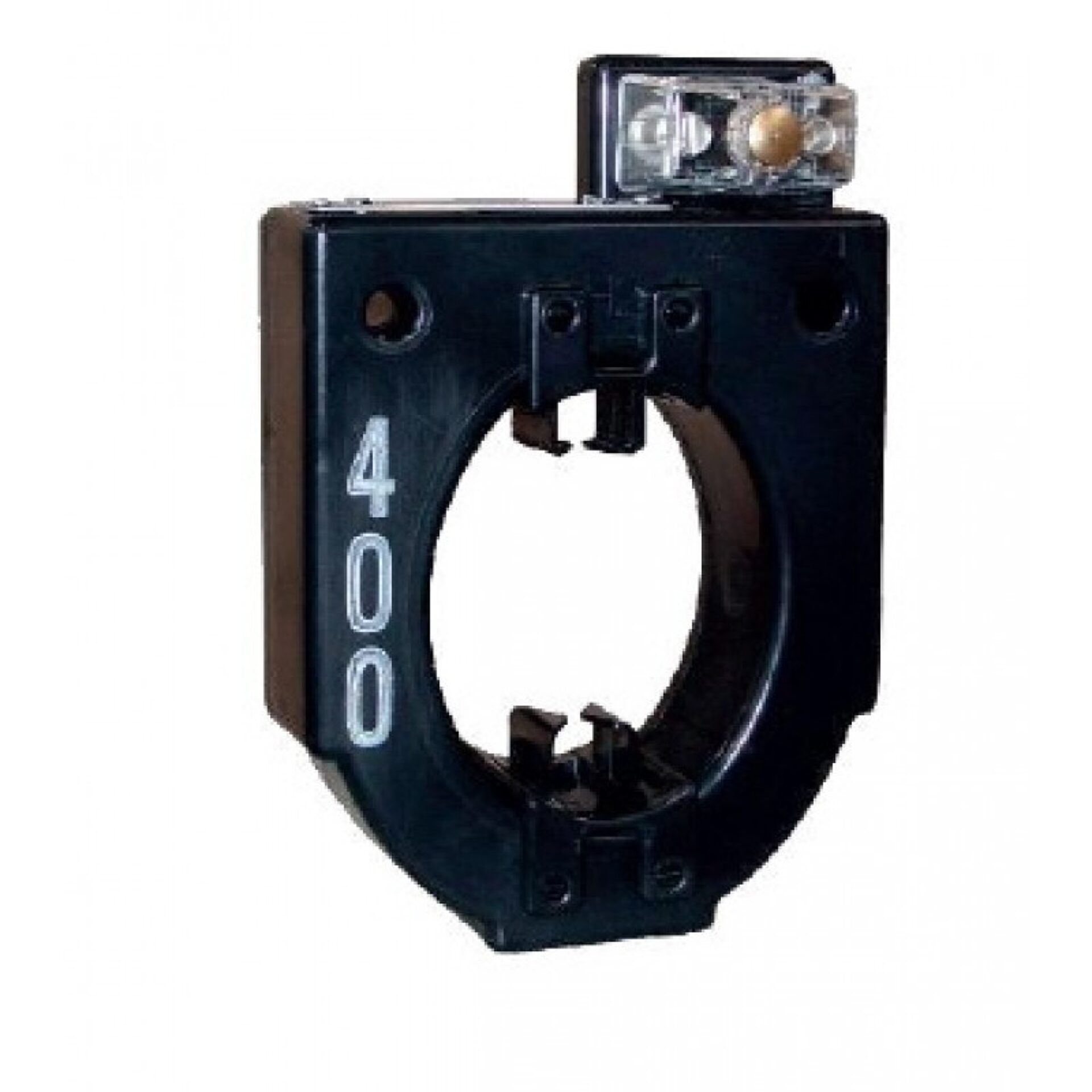

Model JAB-0CV Indoor Current Transformer
Introducing the Model JAB-0CV Indoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer offers reliable performance and precise readings essential for ensuring the safety and efficiency of electrical systems. Whether used in industrial, commercial, or residential settings, the Model JAB-0CV provides accurate current measurement, helping engineers and technicians maintain optimal system operation.
Overview
Introducing the Model JAB-0CV Indoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer offers reliable performance and precise readings essential for ensuring the safety and efficiency of electrical systems. Whether used in industrial, commercial, or residential settings, the Model JAB-0CV provides accurate current measurement, helping engineers and technicians maintain optimal system operation.
a global leader in electrical and electronic manufacturing, this current transformer benefits from years of engineering expertise and innovative design. Its indoor configuration makes it suitable for installation in a variety of controlled environments, providing consistent and dependable performance. The robust construction and attention to detail ensure durability and long-term stability, even in demanding conditions.
Spectrum Industries is proud to offer this advanced current transformer as part of its extensive range of electrical measurement products. The Model JAB-0CV is designed to seamlessly integrate into existing systems, providing precise data to facilitate effective decision-making and system management. Whether for new installations or maintenance of existing infrastructure, this product stands out as a reliable choice for professionals seeking accuracy and durability in current measurement solutions.
Request a Quote for Model JAB-0CV Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Operating Temperature
- °C to 85°C
- Insulation BIL
- 10 kV
- Weight
- 8.25 lbs
- Mounting
- Indoor
- Application
- Metering, Distribution
- Window Size
- 4.50" x 3.50"
- Reference Drawing (Outline)
- 0121C33851
- Secondary Terminal Type
- Tin plated brass, compression type, 0.275" diameter cross-hole, 1/4-28 clamp screw
- Polarity / Secondary Terminal Labels
- H1 and X1 identified by white dots; secondary terminals labeled X5, X4, X3, X2, X1
- Core/Coil Encapsulation
- Encapsulated and cast in polyurethane resin, UV resistant
- Pad-Mount Transformer Compatibility
- Installs over secondary bushings of pad mounted transformers from 75 kVA to 3,000 kVA
- Continuous Thermal Current Rating Factor (@85 C ambient)
- 200:5=4.0, 300:5=4.0, 400:5=4.0, 500:5=3.0, 600:5=3.0, 800:5=3.0, 1000:5=2.0, 1200:5=2.0, 1500:5=2.0, 2000:5=1.5, 3000:5=1.33
Specification Table
| Primary V | Primary A | Secondary A | Ratio (display) | ANSI Metering Class |
|---|---|---|---|---|
| 600 | 200 | 5 | 200:5 | 0.3B0.1 |
| 600 | 300 | 5 | 300:5 | 0.3B0.2 |
| 600 | 400 | 5 | 400:5 | 0.3B0.2 |
| 600 | 500 | 5 | 500:5 | 0.3B0.5 |
| 600 | 600 | 5 | 600:5 | 0.3B0.5 |
| 600 | 800 | 5 | 800:5 | 0.3B0.5 |
| 600 | 1000 | 5 | 1000:5 | 0.3B0.5 |
| 600 | 1200 | 5 | 1200:5 | 0.3B0.5 |
| 600 | 1500 | 5 | 1500:5 | 0.3B0.9 |
| 600 | 2000 | 5 | 2000:5 | 0.3B1.8 |
| 600 | 3000 | 5 | 3000:5 | 0.3B1.8 |
