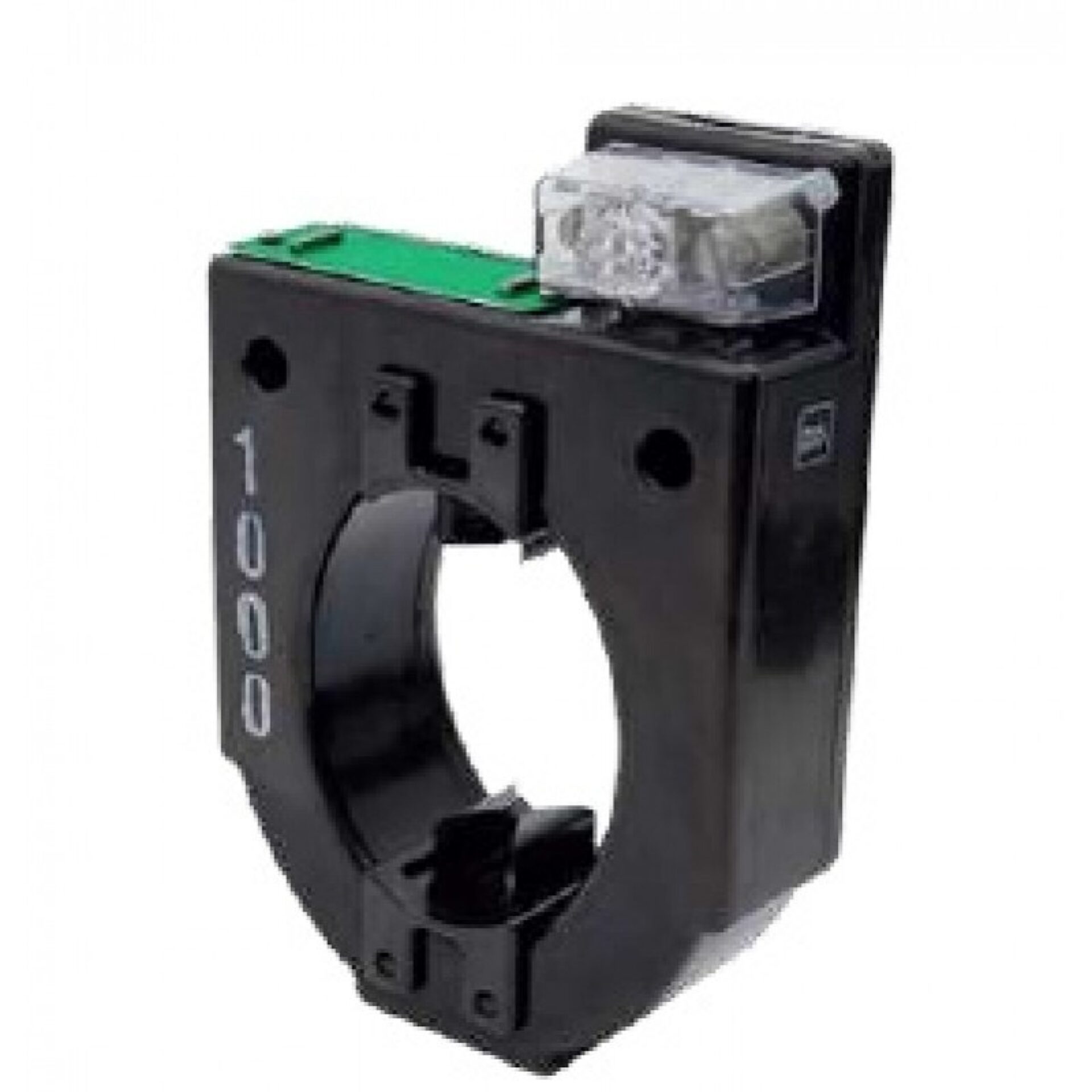

Model JAB-0S RevenueSense
Introducing the Model JAB-0S high-accuracy revenue metering a cutting-edge product, brought to you through Spectrum Industries. Designed with precision and innovation in mind, this device offers an advanced solution for revenue management and data analysis, making it an essential tool for businesses seeking to optimize their financial operations.
Overview
Introducing the Model JAB-0S high-accuracy revenue metering a cutting-edge product, brought to you through Spectrum Industries. Designed with precision and innovation in mind, this device offers an advanced solution for revenue management and data analysis, making it an essential tool for businesses seeking to optimize their financial operations.
a global leader in technology and engineering, the high-accuracy revenue metering system combines sophisticated hardware with intuitive software to deliver accurate, real-time insights into revenue streams. Its robust design ensures durability and reliability, making it suitable for a variety of industrial and commercial environments. Whether you're managing a large-scale enterprise or a smaller operation, the Model JAB-0S high-accuracy revenue metering provides the flexibility and performance needed to streamline your revenue collection processes.
Spectrum Industries has partnered with to bring this state-of-the-art product to market, ensuring that users benefit from the highest standards of quality and innovation. The system’s user-friendly interface allows for easy setup and operation, reducing training time and increasing efficiency. With features tailored to meet the demands of modern revenue management, the Model JAB-0S high-accuracy revenue metering is an invaluable asset for organizations aiming to enhance accuracy, reduce errors, and maximize profitability. Trust in ’s expertise and Spectrum Industries’ commitment to excellence with the high-accuracy revenue metering system—your solution for smarter revenue management.
Request a Quote for Model JAB-0S RevenueSense
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 8.25 lbs
- Mounting
- Indoor
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Voltage Class
- 0.6 kV
- Window Size
- 4.5" x 3.5"
- Case Material
- Valox thermoplastic polyester resin, encapsulated core/coil with polyurethane resin fill
- Secondary Terminals
- Tin plated brass, compression type, 0.275" diameter cross-hole, 1/4-28 clamp screw, interlocked shorting device, clear plastic terminal cover
- Reference Drawing
- Outline 0121C33851
- Mounting Method
- Mounts in any position, typically on pad-mount transformer terminal blade via removable Valox grabbers; two mounting holes for bracket attachment
- Nameplate
- Laser engraved aluminum, attached to top of unit, nominal current rating shown in large numerals on both faces
- Overall Accuracy — Accuracy
- 0.15
- Overall Accuracy — Condition
- 0.15S special-high-accuracy class maintained from 1% of rated current through rating factor
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 500 | 5 | 500:5 | 4 | 3 |
| 600 | 5 | 600:5 | 2 | 1.5 |
| 800 | 5 | 800:5 | 3 | 3 |
| 1000 | 5 | 1000:5 | 2 | 1.5 |
| 2000 | 5 | 2000:5 | 2 | 1.5 |
| 500 | 5 | 500:5 | — | — |
| 600 | 5 | 600:5 | — | — |
| 800 | 5 | 800:5 | — | 3 |
| 1000 | 5 | 1000:5 | — | — |
| 2000 | 5 | 2000:5 | — | — |
