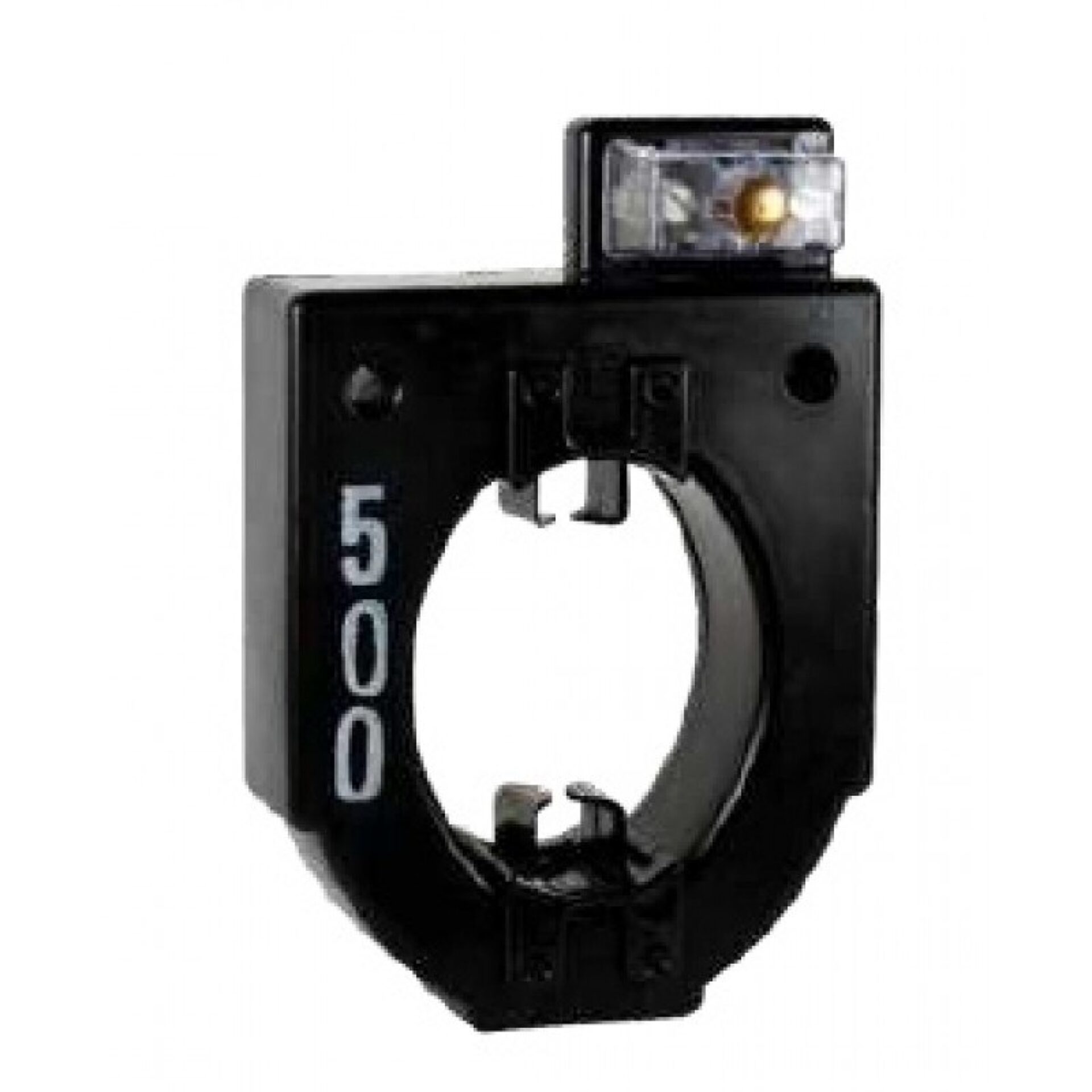

MODEL JAB-0W Encompass
Introducing the Model JAB-0W metering, a state-of-the-art product, brought to you by Spectrum Industries. Designed with precision and innovation, this advanced device is tailored to meet the demanding needs of modern professionals and organizations seeking reliable and efficient performance. Whether you're working in a laboratory, industrial setting, or research environment, the metering offers a versatile solution that seamlessly integrates into your workflow.
Overview
Introducing the Model JAB-0W metering, a state-of-the-art product, brought to you by Spectrum Industries. Designed with precision and innovation, this advanced device is tailored to meet the demanding needs of modern professionals and organizations seeking reliable and efficient performance. Whether you're working in a laboratory, industrial setting, or research environment, the metering offers a versatile solution that seamlessly integrates into your workflow.
a global leader in technology and manufacturing, the Model JAB-0W metering embodies the company's commitment to quality, durability, and cutting-edge engineering. Its robust construction ensures long-lasting performance, while its sophisticated features provide accurate and consistent results. The device's user-friendly interface makes operation straightforward, reducing training time and increasing productivity.
Spectrum Industries is proud to distribute this exceptional product, ensuring that it reaches users who demand excellence. The metering is designed to deliver precise measurements and reliable data, making it an invaluable tool for professionals who require dependable performance in their daily operations. With our renowned reputation for innovation and Spectrum Industries' dedication to customer satisfaction, the Model JAB-0W metering stands out as a top-tier choice for those seeking advanced technological solutions.
Request a Quote for MODEL JAB-0W Encompass
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Mounting
- Indoor
- Application
- Metering
- Voltage Class
- 0.6 kV
- Window Size
- 4.5" x 3.5"
- Secondary Terminals
- Tin plated brass, compression type, 0.275" diameter cross-hole for wiring, 1/4-28 clamp screw; shorting device interlocked to terminal cover; clear plastic terminal cover with provision for sealing.
- Case Material
- Molded Valox thermoplastic polyester resin case; core and coil encapsulated in polyurethane resin for a waterproof unit.
- Accuracy Class Detail
- Exceeds IEEE standard revenue metering accuracy: maintains 0.6 Accuracy Class from 4% to 40% of rated current, and 0.3 Accuracy Class from 40% through Rating Factor.
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 500 | 5 | 500:5 | 4 | 3 |
| 1500 | 5 | 1500:5 | 2 | 1.5 |
| 500 | 5 | 500:5 | — | — |
| 1500 | 5 | 1500:5 | — | — |
