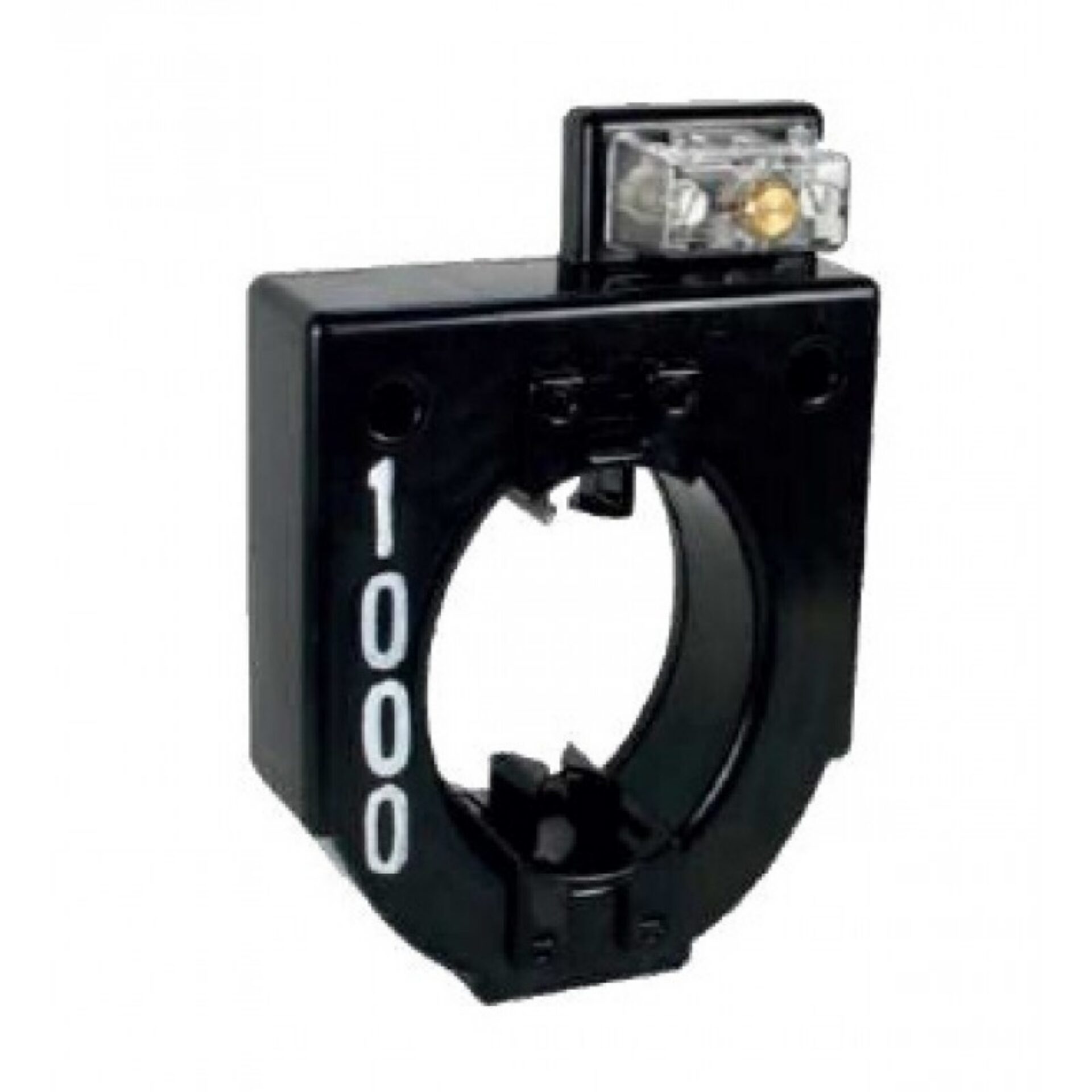

Model JAB-AC Indoor Current Transformer
Introducing the Model JAB-AC Indoor Current Transformer, a high-quality solution to meet the demanding needs of modern electrical systems. Designed with precision and reliability in mind, this current transformer is ideal for accurately monitoring and measuring AC currents within indoor environments. Whether used in industrial, commercial, or residential applications, the Model JAB-AC provides consistent performance and durability, ensuring your electrical infrastructure operates efficiently and safely.
Overview
Introducing the Model JAB-AC Indoor Current Transformer, a high-quality solution to meet the demanding needs of modern electrical systems. Designed with precision and reliability in mind, this current transformer is ideal for accurately monitoring and measuring AC currents within indoor environments. Whether used in industrial, commercial, or residential applications, the Model JAB-AC provides consistent performance and durability, ensuring your electrical infrastructure operates efficiently and safely.
a globally recognized leader in electrical manufacturing and innovation, this product benefits from decades of expertise and technological advancement. The Model JAB-AC is crafted to deliver precise current readings, facilitating effective system management and fault detection. Its robust construction ensures long-term durability, even in demanding indoor conditions, making it a dependable choice for professionals seeking dependable measurement tools.
Spectrum Industries is proud to distribute this advanced current transformer, offering customers a reliable component that seamlessly integrates into existing electrical systems. With its straightforward installation and accurate performance, the Model JAB-AC enhances your ability to monitor electrical currents effectively, helping prevent potential issues before they escalate. Trust in ’s legacy of quality and Spectrum Industries’ commitment to excellence with this exceptional current transformer, designed to support your electrical measurement needs now and into the future.
Request a Quote for Model JAB-AC Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 8.25 lbs
- Mounting
- Indoor
- Application
- Metering, Distribution
- Window Size
- 4.50" x 3.50"
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- Secondary Terminals
- Tin plated brass, compression type, 0.275" dia. cross-hole, 1/4-28 clamp screw, shorting device interlocked to terminal cover
- Reference Drawing
- Outline 0121C33851
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 800 | 5 | 800:5 | 0.3B0.5 | 3 | 2.2 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 2 | 1.5 |
| 1200 | 5 | 1200:5 | 0.3B0.5 | 1.5 | 1.1 |
| 1500 | 5 | 1500:5 | 0.3B0.5 | 2 | 1.5 |
| 2000 | 5 | 2000:5 | — | 1 | 0.7 |
| 3000 | 5 | 3000:5 | — | 1 | 0.7 |
