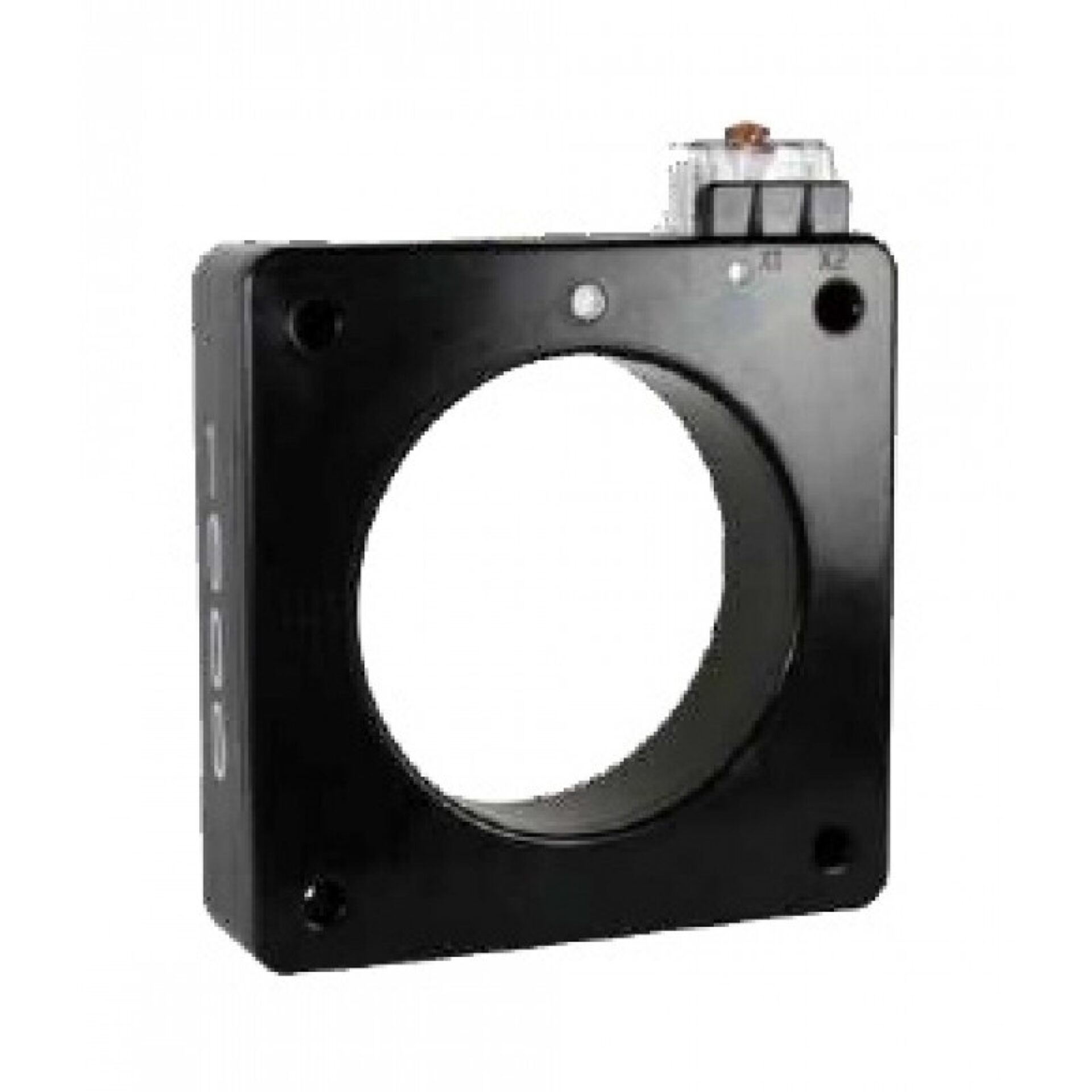

Model JAD-0S RevenueSense
Introducing the Model JAD-0S high-accuracy revenue metering a state-of-the-art revenue management solution, brought to you by Spectrum Industries. Designed with precision and innovation in mind, this advanced device offers a comprehensive approach to tracking and optimizing revenue streams across various industries. Whether you operate in retail, hospitality, or entertainment, the high-accuracy revenue metering provides reliable, real-time data that empowers your business to make informed decisions and maximize profitability.
Overview
Introducing the Model JAD-0S high-accuracy revenue metering a state-of-the-art revenue management solution, brought to you by Spectrum Industries. Designed with precision and innovation in mind, this advanced device offers a comprehensive approach to tracking and optimizing revenue streams across various industries. Whether you operate in retail, hospitality, or entertainment, the high-accuracy revenue metering provides reliable, real-time data that empowers your business to make informed decisions and maximize profitability.
a global leader in technology and engineering, the Model JAD-0S high-accuracy revenue metering exemplifies cutting-edge design and functionality. Its sophisticated features include high-accuracy data collection, seamless integration capabilities, and user-friendly interfaces that simplify complex revenue analysis. The product’s robust construction ensures durability and long-term performance, making it a valuable asset for businesses seeking reliable revenue management tools.
Spectrum Industries is proud to distribute this innovative solution, ensuring that clients receive top-tier support and service. The high-accuracy revenue metering versatile design allows it to adapt to various operational environments, providing flexibility and efficiency. By leveraging the power of ’s technological expertise, Spectrum Industries offers a product that not only meets but exceeds industry standards, helping your business stay competitive and thrive in today’s dynamic market landscape.
Request a Quote for Model JAD-0S RevenueSense
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 13 lbs
- Mounting
- Indoor
- Application
- Metering
- Voltage Class
- 0.6 kV
- Window Size
- 5.75 in
- Design Types Available
- Bar-type or window-type
- Case Material
- Molded Valox thermoplastic polyester resin, polyurethane resin encapsulated core/coil, waterproof
- Secondary Terminals
- Tin plated brass, compression type, 0.275 in diameter cross-hole, 1/4-28 clamp screw, shorting device interlocked to terminal cover
- Primary Bar Option Weight
- +4 lbs (add-on for removable primary bar)
- Mounting Base Option Weight
- +2 lbs (add-on for stainless steel mounting base)
- Overall Accuracy — Accuracy
- 0.15
- Overall Accuracy — Condition
- Special high accuracy (0.15S class), maintained from 1% of rated current through rating factor, 60 Hz
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 600 | 5 | 600:5 | 3.2 | 2.4 |
| 600 | 5 | 600:5 | 3.2 | 2.4 |
| 800 | 5 | 800:5 | 3 | 2 |
| 800 | 5 | 800:5 | 3 | 2 |
| 1200 | 5 | 1200:5 | 2 | 1.5 |
| 1200 | 5 | 1200:5 | 2 | 1.5 |
| 1500 | 5 | 1500:5 | 2 | 1.5 |
| 1500 | 5 | 1500:5 | 2 | 1.5 |
| 2000 | 5 | 2000:5 | 2 | 1.5 |
| 2000 | 5 | 2000:5 | 2 | 1.5 |
| 3000 | 5 | 3000:5 | 1.5 | 1 |
| 3000 | 5 | 3000:5 | 1.5 | 1 |
