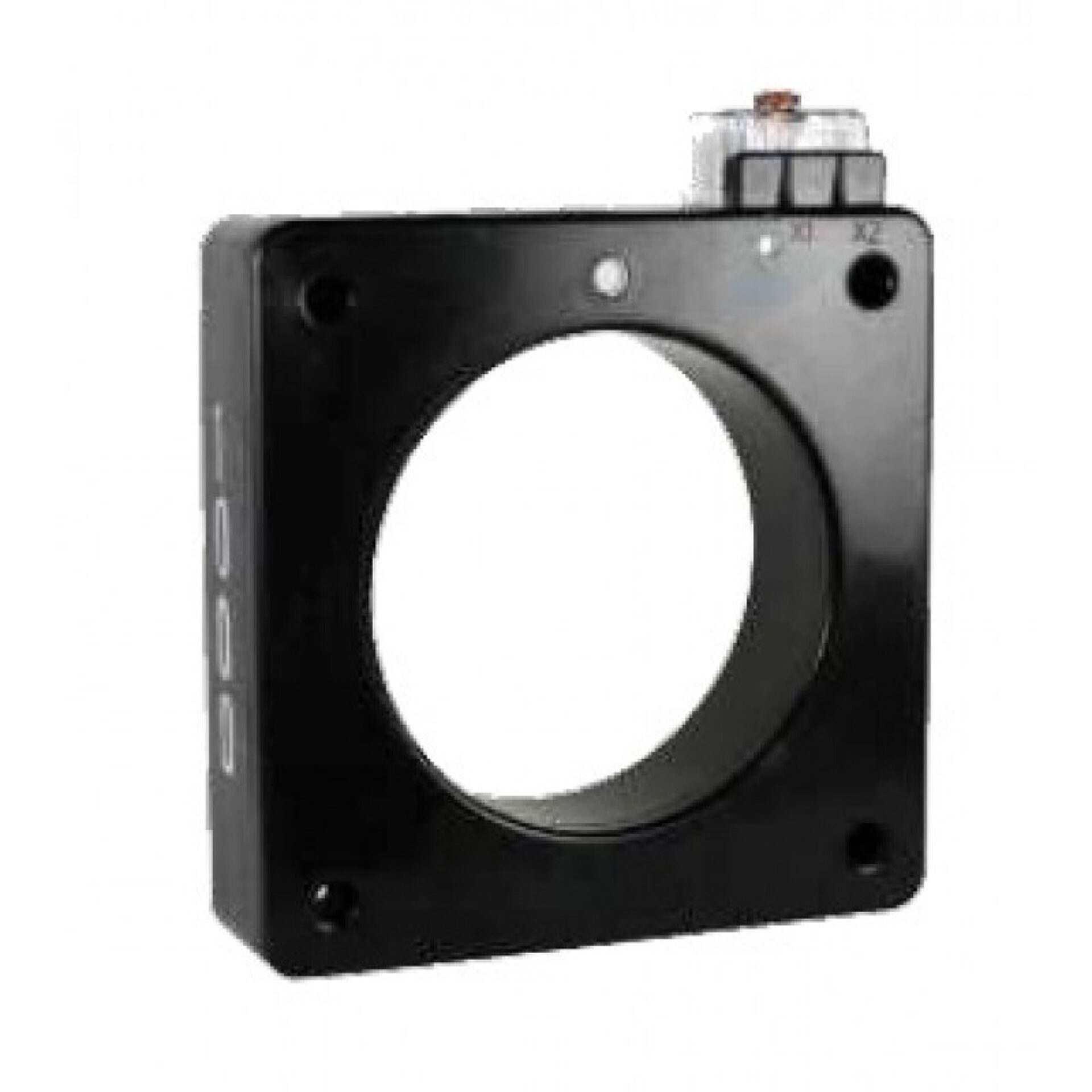

MODEL JAD-0W Encompass
Introducing the Model JAD-0W metering, a cutting-edge solution, brought to you by Spectrum Industries. Designed with precision and innovation in mind, this product is engineered to meet the demanding needs of modern industrial and commercial environments. Whether you are looking to enhance your operational efficiency, improve safety standards, or streamline your processes, the metering offers a versatile and reliable platform to achieve your goals.
Overview
Introducing the Model JAD-0W metering, a cutting-edge solution, brought to you by Spectrum Industries. Designed with precision and innovation in mind, this product is engineered to meet the demanding needs of modern industrial and commercial environments. Whether you are looking to enhance your operational efficiency, improve safety standards, or streamline your processes, the metering offers a versatile and reliable platform to achieve your goals.
a globally recognized leader in technology and engineering, the Model JAD-0W metering embodies the company's commitment to quality, durability, and advanced functionality. Its robust construction ensures long-lasting performance even in challenging conditions, making it an ideal choice for a wide range of applications. The device features intuitive controls and a user-friendly interface, enabling seamless integration into existing systems and easy operation for personnel at all levels.
Furthermore, the metering is designed with flexibility in mind, allowing for customization to suit specific operational requirements. Its sophisticated features facilitate real-time monitoring, data collection, and analysis, empowering users to make informed decisions swiftly. With its innovative design and reliable performance, the Model JAD-0W metering by, distributed by Spectrum Industries, stands out as a superior solution that combines technological excellence with practical usability.
Request a Quote for MODEL JAD-0W Encompass
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 13 lbs
- Mounting
- Indoor
- Application
- Metering
- Voltage Class
- 0.6 kV
- Window Size
- 5.75"
- Case / Encapsulation Material
- Valox thermoplastic polyester resin case; polyurethane resin encapsulation of winding, leads and terminals (waterproof).
- Core Material
- High quality grain-oriented silicon steel, annealed under controlled factory conditions.
- Secondary Terminals
- Tin-plated brass, compression type, 0.275" diameter cross-hole, 1/4-28 clamp screw; shorting device interlocked to terminal cover.
- Primary Conductor / Bar Options
- Removable 1/4" x 4" tin-plated flat copper bars, available in 11 7/8" and 14 1/4" lengths; primary bar option adds 4 lbs.
- Mounting Base Option
- Optional stainless steel base plate, attached with two bolts; adds 2 lbs.
- Reference Drawings
- Outline 0121C34994; Primary Bar Assembly 0821C35021; Base Assembly 0221A36647
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 1000 | 5 | 1000:5 | 0.3B0.5 | 4 | 3 |
| 1000 | 5 | 1000:5 | 0.3B0.5 | 4 | 3 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 3 | 2 |
| 1500 | 5 | 1500:5 | 0.3B0.9 | 3 | 2 |
