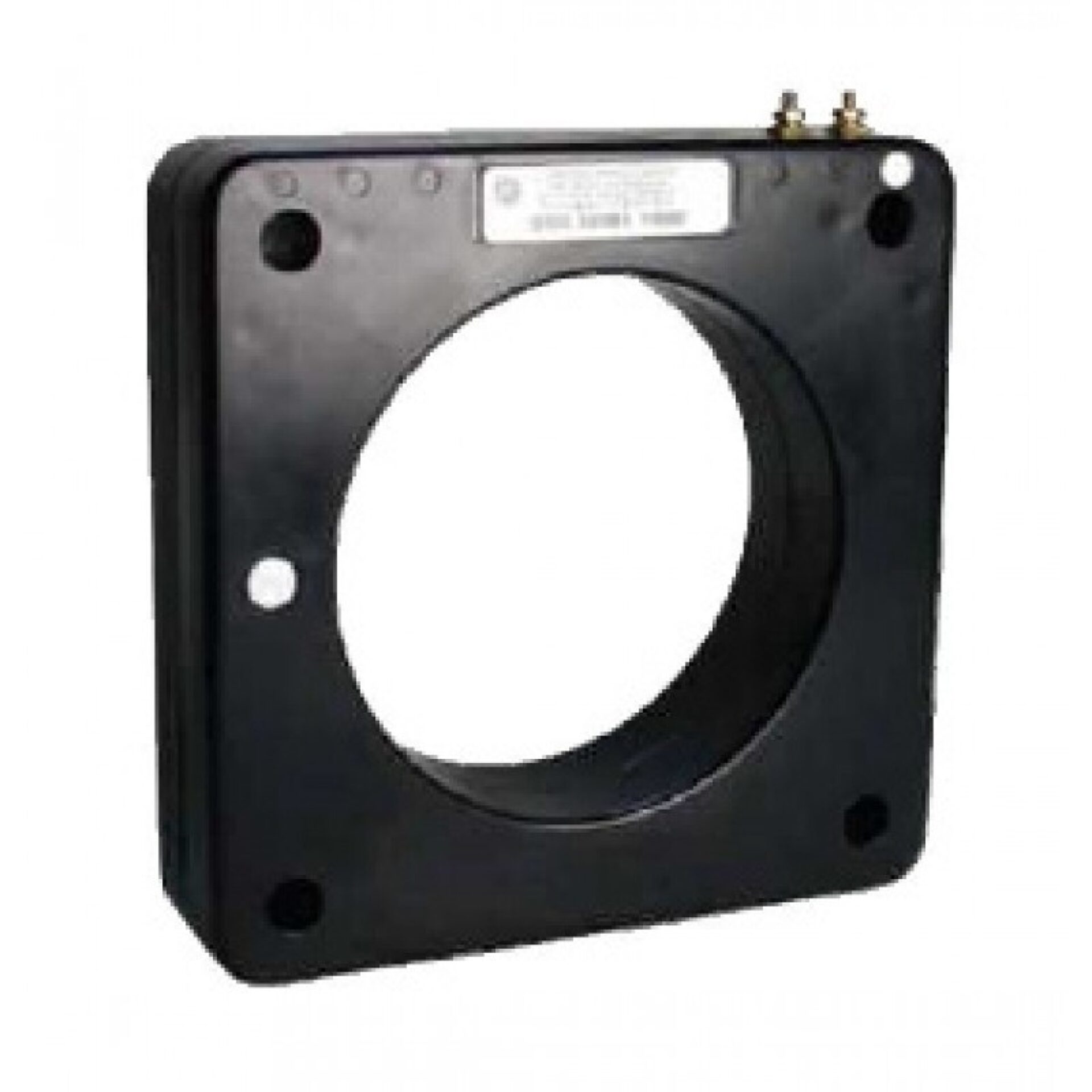

Model JAH-0C Indoor Current Transformer
Introducing the Model JAH-0C Indoor Current Transformer, a high-quality electrical component. Designed to provide precise current measurement in various electrical systems, this transformer is an essential tool for engineers, technicians, and professionals seeking reliable performance and durability., a globally renowned leader in electrical and electronic solutions, the Model JAH-0C reflects a commitment to excellence and innovation.
Overview
Introducing the Model JAH-0C Indoor Current Transformer, a high-quality electrical component. Designed to provide precise current measurement in various electrical systems, this transformer is an essential tool for engineers, technicians, and professionals seeking reliable performance and durability., a globally renowned leader in electrical and electronic solutions, the Model JAH-0C reflects a commitment to excellence and innovation.
This indoor current transformer is engineered to seamlessly integrate into your electrical infrastructure, offering accurate readings while maintaining safety and efficiency. Its compact design makes it suitable for indoor installations where space is limited, without compromising on performance. The robust construction ensures long-term reliability, even in demanding environments, making it a dependable choice for both industrial and commercial applications.
Spectrum Industries, the official distributor of this -produced product, ensures that each unit meets stringent quality standards. Whether you're monitoring power consumption, protecting equipment, or performing system diagnostics, the Model JAH-0C delivers consistent and precise measurements. Its ease of installation and compatibility with various systems make it a versatile addition to your electrical toolkit. Trust in the legacy of and Spectrum Industries to provide you with a top-tier current transformer that enhances the safety, efficiency, and accuracy of your electrical operations.
Request a Quote for Model JAH-0C Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Mounting
- Indoor
- Application
- Metering, Protection
- Standards
- UL
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- Window Diameter
- 4.00 in (200:5–800:5 ratios) or 5.75 in (1,000:5–4,000:5 ratios)
- Weight
- 11 lbs (4.00 in window models); 9.5 lbs (5.75 in window models)
- Regulatory Approval
- UL Recognized File E93779
- Terminals
- No. 8-32 brass studs with one flatwasher, one lockwasher and a regular nut
- Mounting Bracket Kit
- Optional kit, part number 0021B00185, ordered separately
- Case Material
- Valox thermoplastic polyester resin
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 200 | 5 | 200:5 | C10 | 2 | 2 |
| 250 | 5 | 250:5 | C10 | 2 | 2 |
| 300 | 5 | 300:5 | C10 | 2 | 2 |
| 400 | 5 | 400:5 | C20 | 2 | 2 |
| 500 | 5 | 500:5 | C20 | 2 | 1.5 |
| 600 | 5 | 600:5 | C20 | 2 | 1.5 |
| 800 | 5 | 800:5 | C20 | 1.5 | 1.33 |
| 1000 | 5 | 1000:5 | C20 | 1.5 | 1.5 |
| 1200 | 5 | 1200:5 | C20 | 1.5 | 1.33 |
| 1500 | 5 | 1500:5 | C50 | 1.5 | 1 |
| 2000 | 5 | 2000:5 | C50 | 1.33 | 1 |
| 2500 | 5 | 2500:5 | C50 | 1 | 0.8 |
| 3000 | 5 | 3000:5 | C50 | 1 | 0.8 |
| 4000 | 5 | 4000:5 | C50 | 1 | 0.8 |
