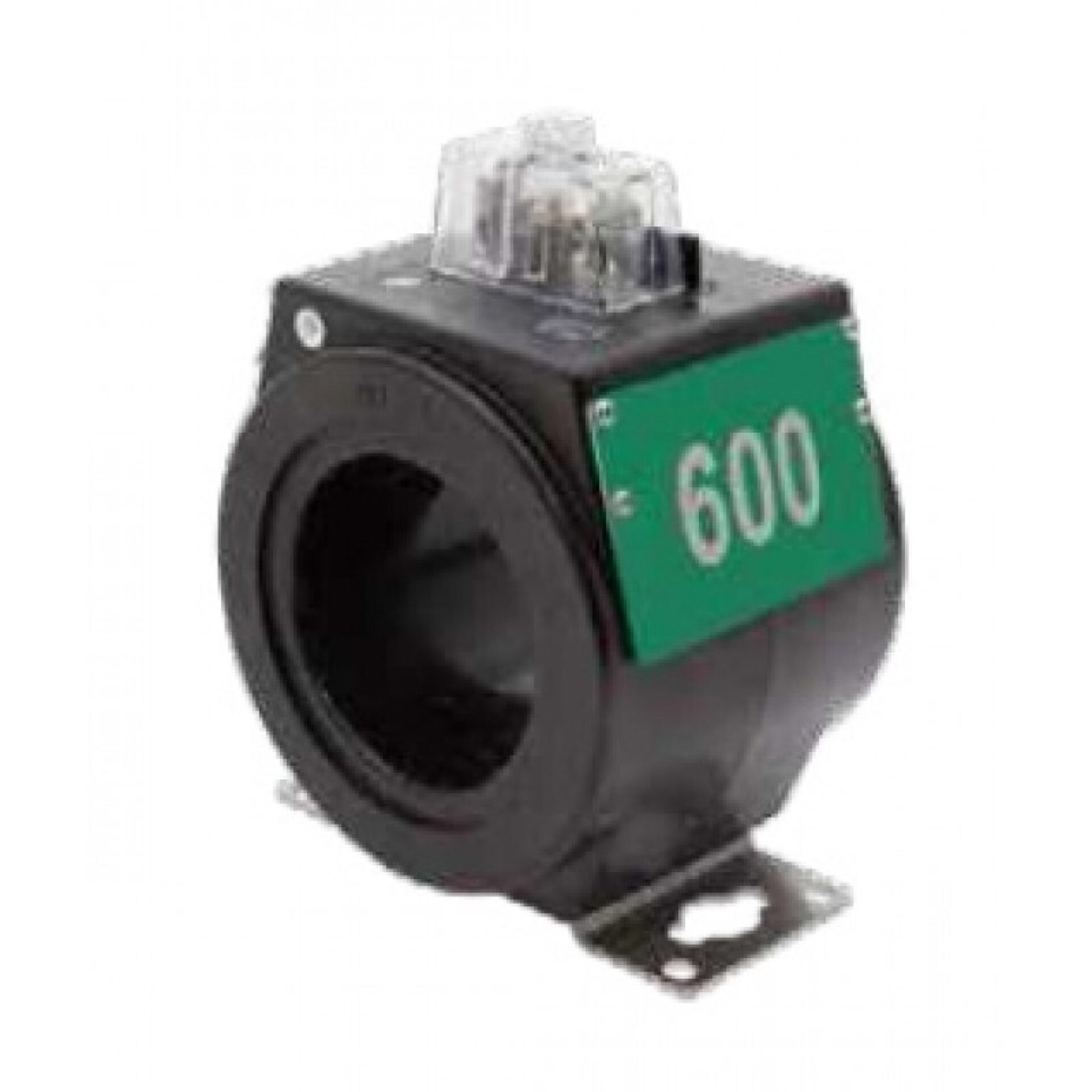

Model JAK-0S RevenueSense
Introducing the Model JAK-0S high-accuracy revenue metering a cutting-edge solution, brought to you by Spectrum Industries. Designed to optimize revenue management and streamline operational efficiency, this innovative product leverages advanced technology to deliver precise and reliable performance in various industrial and commercial settings.
Overview
Introducing the Model JAK-0S high-accuracy revenue metering a cutting-edge solution, brought to you by Spectrum Industries. Designed to optimize revenue management and streamline operational efficiency, this innovative product leverages advanced technology to deliver precise and reliable performance in various industrial and commercial settings.
The Model JAK-0S high-accuracy revenue metering stands out with its sophisticated features, including high-accuracy measurement capabilities and user-friendly interface. Its robust construction ensures durability and long-term reliability, making it an ideal choice for demanding environments. Whether used in retail, manufacturing, or utility sectors, this product provides real-time data collection and analysis, empowering businesses to make informed decisions that enhance profitability.
a global leader in technology and engineering solutions, the high-accuracy revenue metering exemplifies quality and innovation. Spectrum Industries, a trusted provider of industrial equipment, has integrated ’s expertise into this product, ensuring it meets the highest standards of performance and reliability. Its seamless integration into existing systems allows for efficient deployment and minimal downtime, helping organizations maximize their revenue potential.
In summary, the Model JAK-0S high-accuracy revenue metering by and Spectrum Industries is a powerful tool designed to improve revenue tracking and operational efficiency. Its advanced features, durability, and ease of use make it an essential asset for businesses seeking to stay competitive and optimize their revenue streams.
Request a Quote for Model JAK-0S RevenueSense
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 12 lbs
- Application
- Metering
- Voltage class
- 0.6 kV
- Window size
- 3.062 in
- Secondary terminals
- Tin-plated brass, compression type, 0.275 in cross-hole, 1/4-28 clamp screw; shorting device interlocked to terminal cover.
- Case / encapsulation material
- Thermoplastic polyester resin case; polyurethane resin fill fully encapsulating winding, leads, and terminals.
- Core material
- Amorphous core material, minimizes electrical core losses for extended accuracy range.
- Weight adders
- Primary bar +3 lbs; low base +0.7 lbs; high base +1 lbs (base transformer 12 lbs).
- Regulatory approval
- Measurement Canada Approval: AE-2421
- Mounting / installation
- Indoor/outdoor service, bar-type or window-type designs, mountable in any position, suspendable from bus bar or cable.
- Overall Accuracy — Accuracy
- 0.15
- Overall Accuracy — Condition
- IEEE 0.15S special high accuracy, maintained from 1% of rated current through rating factor at 60 Hz
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 400 | 5 | 400:5 | 3 | 2 |
| 400 | 5 | 400:5 | 3 | 2 |
| 400 | 5 | 400:5 | 3 | 2 |
| 400 | 5 | 400:5 | 3 | 2 |
| 400 | 5 | 400:5 | 3 | 2 |
| 400 | 5 | 400:5 | 3 | 2 |
| 500 | 5 | 500:5 | 4 | 3 |
| 500 | 5 | 500:5 | 4 | 3 |
| 500 | 5 | 500:5 | 4 | 3 |
| 500 | 5 | 500:5 | 3 | 2 |
| 500 | 5 | 500:5 | 3 | 2 |
| 500 | 5 | 500:5 | 3 | 2 |
| 600 | 5 | 600:5 | 3 | 2 |
| 600 | 5 | 600:5 | 3 | 2 |
| 600 | 5 | 600:5 | 3 | 2 |
| 600 | 5 | 600:5 | 3 | 2 |
| 600 | 5 | 600:5 | 3 | 2 |
| 600 | 5 | 600:5 | 3 | 2 |
| 600 | 5 | 600:5 | 2 | 1.5 |
| 600 | 5 | 600:5 | 2 | 1.5 |
| 600 | 5 | 600:5 | 2 | 1.5 |
| 600 | 5 | 600:5 | 2 | 1.5 |
| 600 | 5 | 600:5 | 2 | 1.5 |
| 600 | 5 | 600:5 | 2 | 1.5 |
| 800 | 5 | 800:5 | 2 | 1.5 |
| 800 | 5 | 800:5 | 2 | 1.5 |
| 800 | 5 | 800:5 | 2 | 1.5 |
| 800 | 5 | 800:5 | 2 | 1.5 |
| 800 | 5 | 800:5 | 2 | 1.5 |
| 800 | 5 | 800:5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 2 | 1.5 |
| 1000 | 5 | 1000:5 | 2 | 1.5 |
