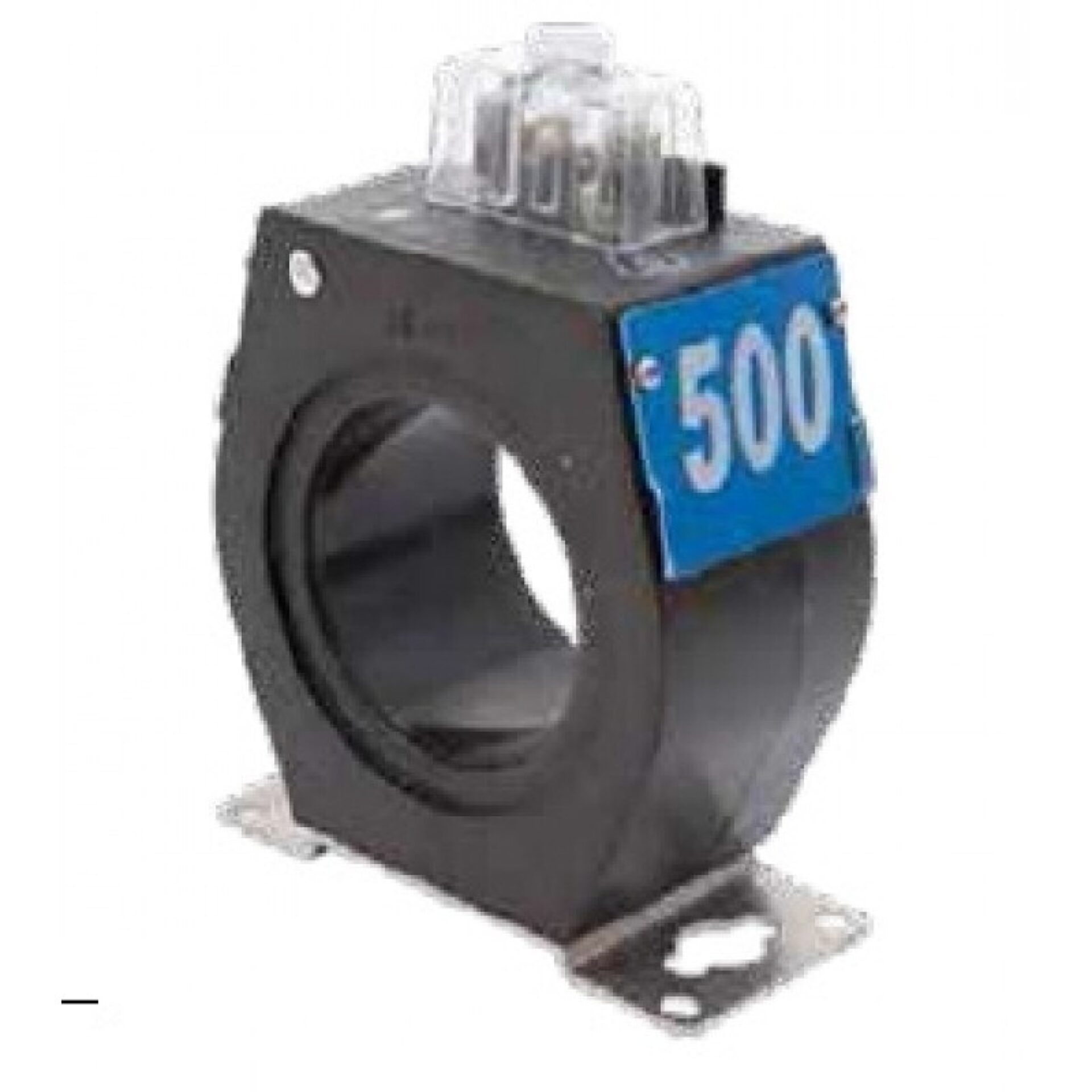

Model JAK-0W Encompass
Introducing the Model JAK-0W metering, a cutting-edge product, brought to you by Spectrum Industries. Designed with precision and innovation in mind, this advanced device offers reliable performance for a wide range of applications. Whether you're working in industrial settings, research laboratories, or technical environments, the metering provides the versatility and accuracy needed to meet demanding requirements.
Overview
Introducing the Model JAK-0W metering, a cutting-edge product, brought to you by Spectrum Industries. Designed with precision and innovation in mind, this advanced device offers reliable performance for a wide range of applications. Whether you're working in industrial settings, research laboratories, or technical environments, the metering provides the versatility and accuracy needed to meet demanding requirements.
a global leader in technology and engineering, the Model JAK-0W metering benefits from decades of expertise and commitment to quality. Spectrum Industries ensures that this product adheres to the highest standards, delivering durability and consistent results. Its thoughtfully engineered features make it an essential tool for professionals seeking dependable measurement and testing solutions.
The metering stands out for its user-friendly design, robust construction, and innovative functionalities. It integrates seamlessly into existing workflows, helping users achieve precise data collection and analysis efficiently. With its reliable performance and advanced capabilities, the Model JAK-0W metering by, distributed by Spectrum Industries, is an excellent choice for those who demand excellence and dependability in their equipment. Whether for routine tasks or complex projects, this product is engineered to support your success.
Request a Quote for Model JAK-0W Encompass
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 12 lbs
- Application
- Metering
- Voltage Class
- 0.6 kV
- Window Size
- 3.062 in
- Accuracy Class Range
- 0.6 Class from 4% to 40% of rated current; 0.3 Class from 40% through Rating Factor
- Terminals
- Tin-plated brass compression terminals, 0.275 in cross-hole, 1/4-28 clamp screw, shorting device interlocked to terminal cover
- Accessory Weight Adders
- Primary bar +3 lbs; Low base +0.7 lbs; High base +1 lbs
- Mounting / Environment
- Indoor/Outdoor, mountable in any position, may be suspended from bus-bar or cable
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 100 | 5 | 100:5 | 4 | 3 |
| 100 | 5 | 100:5 | 4 | 3 |
| 100 | 5 | 100:5 | 4 | 3 |
| 200 | 5 | 200:5 | 4 | 3 |
| 200 | 5 | 200:5 | 4 | 3 |
| 200 | 5 | 200:5 | 4 | 3 |
| 500 | 5 | 500:5 | 4 | 3 |
| 500 | 5 | 500:5 | 4 | 3 |
| 500 | 5 | 500:5 | 4 | 3 |
| 500 | 5 | 500:5 | 4 | 3 |
| 500 | 5 | 500:5 | 4 | 3 |
| 500 | 5 | 500:5 | 4 | 3 |
