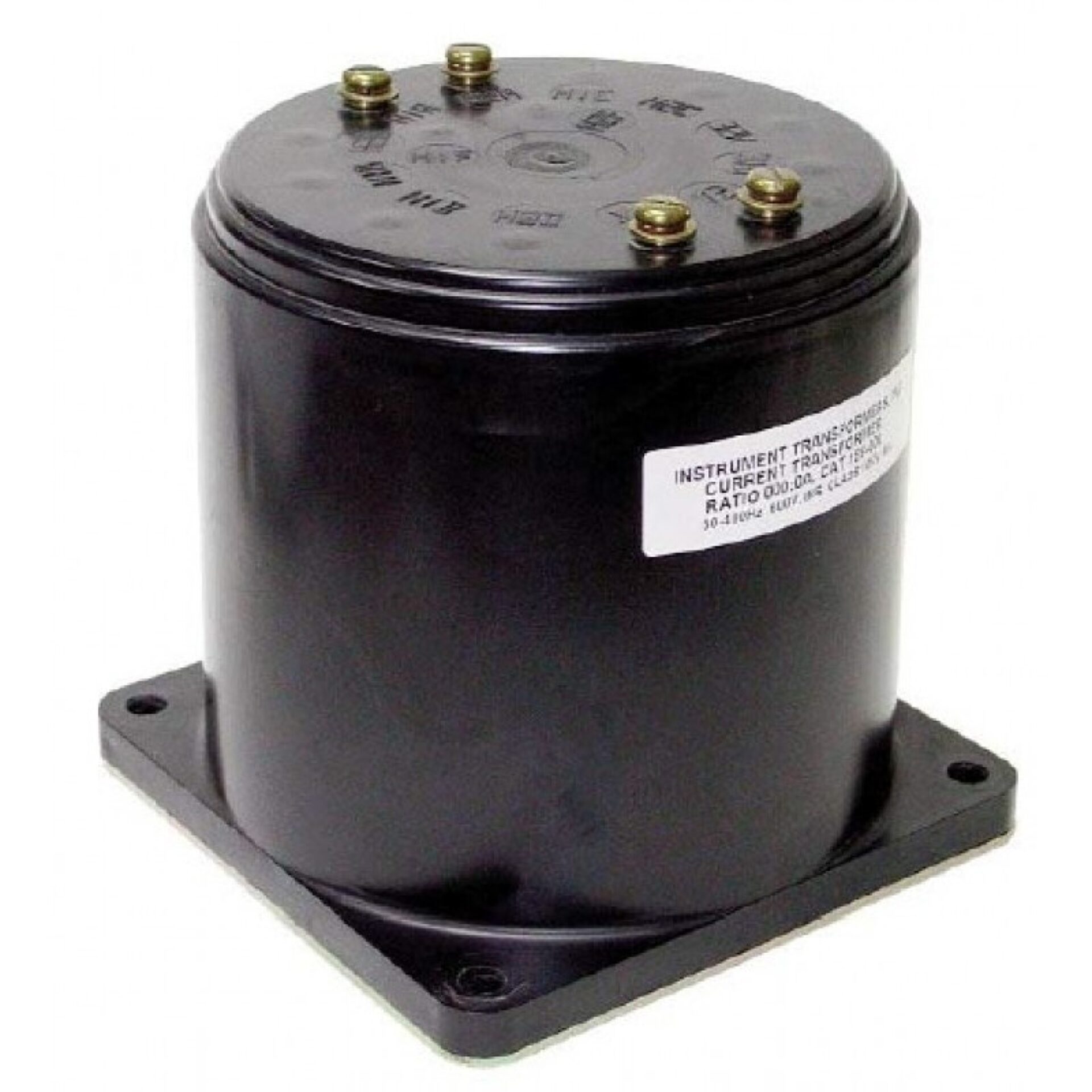

Model JAR-0C 600V Indoor Current Transformer
Introducing the Model JAR-0C-600V Indoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to provide precise and reliable current measurement within various electrical systems, this current transformer is an essential component for ensuring safety, accuracy, and efficiency in electrical applications. Whether used in industrial, commercial, or residential settings, the Model JAR-0C-600V offers dependable performance that meets demanding standards.
Overview
Introducing the Model JAR-0C-600V Indoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to provide precise and reliable current measurement within various electrical systems, this current transformer is an essential component for ensuring safety, accuracy, and efficiency in electrical applications. Whether used in industrial, commercial, or residential settings, the Model JAR-0C-600V offers dependable performance that meets demanding standards.
a globally recognized leader in electrical and electronic products, this current transformer benefits from advanced engineering and rigorous quality control. Spectrum Industries, a trusted distributor, ensures that customers receive authentic, top-grade equipment that adheres to strict specifications. The Model JAR-0C-600V is specifically designed for indoor use, making it suitable for installation in control panels, distribution boards, and other enclosed environments where space and safety are priorities.
This current transformer features a robust construction capable of handling up to 600V, providing accurate current measurement across a wide range of applications. Its ease of installation, combined with its durable design, makes it an ideal choice for professionals seeking a reliable solution for their electrical measurement needs. With the backing of ’s reputation for quality and Spectrum Industries’ commitment to customer satisfaction, the Model JAR-0C-600V Indoor Current Transformer is a dependable choice for your electrical infrastructure.
Request a Quote for Model JAR-0C 600V Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Weight
- 10 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Standards
- UL
- Continuous Thermal Current Rating Factor
- 1.5 @ 30 C ambient; 1.1 @ 55 C ambient
- Voltage Rating
- None (secondary-circuit auxiliary transformer)
- Construction
- Encapsulated in polyurethane resin; molded thermoplastic polyester case
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- ANSI Meter Accuracy Class 0.3 at B0.1 and B0.2, 60 Hz (all models except noted exceptions)
- Dielectric Test — Voltage
- 2.5
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 5 | 0.1 | 5:0.100 | 1.5 | 1.1 |
| 5 | 0.2 | 5:0.200 | 1.5 | 1.1 |
| 5 | 0.25 | 5:0.250 | 1.5 | 1.1 |
| 5 | 0.5 | 5:0.500 | 1.5 | 1.1 |
| 5 | 0.63 | 5:0.625 | 1.5 | 1.1 |
| 5 | 1 | 5:1.000 | 1.5 | 1.1 |
| 5 | 1.25 | 5:1.250 | 1.5 | 1.1 |
| 5 | 1.67 | 5:1.667 | 1.5 | 1.1 |
| 5 | 2 | 5:2.000 | 1.5 | 1.1 |
| 5 | 2.4 | 5:2.395 | 1.5 | 1.1 |
| 5 | 2.5 | 5:2.500 | 1.5 | 1.1 |
| 5 | 2.89 | 5:2.890 | 1.5 | 1.1 |
| 5 | 3 | 5:3.000 | 1.5 | 1.1 |
| 5 | 3.33 | 5:3.330 | 1.5 | 1.1 |
| 5 | 3.75 | 5:3.750 | 1.5 | 1.1 |
| 5 | 4 | 5:4.000 | 1.5 | 1.1 |
| 5 | 5 | 5:5.000 | 1.5 | 1.1 |
| 5 | 5.33 | 5:5.330 | 1.5 | 1.1 |
| 5 | 6.25 | 5:6.250 | 1.5 | 1.1 |
| 5 | 7.5 | 5:7.500 | 1.5 | 1.1 |
| 5 | 8 | 5:8.000 | 1.5 | 1.1 |
| 5 | 10 | 5:10.000 | 1.5 | 1.1 |
| 5 | 12.5 | 5:12.500 | 1.5 | 1.1 |
| 5 | 15 | 5:15.000 | 1.5 | 1.1 |
| 1 | 5 | 1.000:5 | 1.5 | 1.1 |
| 1.67 | 5 | 1.667:5 | 1.5 | 1.1 |
| 2.5 | 5 | 2.500:5 | 1.5 | 1.1 |
| 2.88 | 5 | 2.875:5 | 1.5 | 1.1 |
| 7.5 | 5 | 7.500:5 | 1.5 | 1.1 |
| 10 | 5 | 10.000:5 | 1.5 | 1.1 |
| 0.5 | 1 | 0.500:1 | 1.5 | 1.1 |
| 0.92 | 1 | 0.923:1 | 1.5 | 1.1 |
| 4 | 10 | 4.000:10 | 1.5 | 1.1 |
| — | 5 | 5&5:5 | 1.5 | 1.1 |
| — | 5 | 5&5&5&5:5 | 1.5 | 1.1 |
| — | 5 | 5&5&5&5&5&5 | 1.5 | 1.1 |
