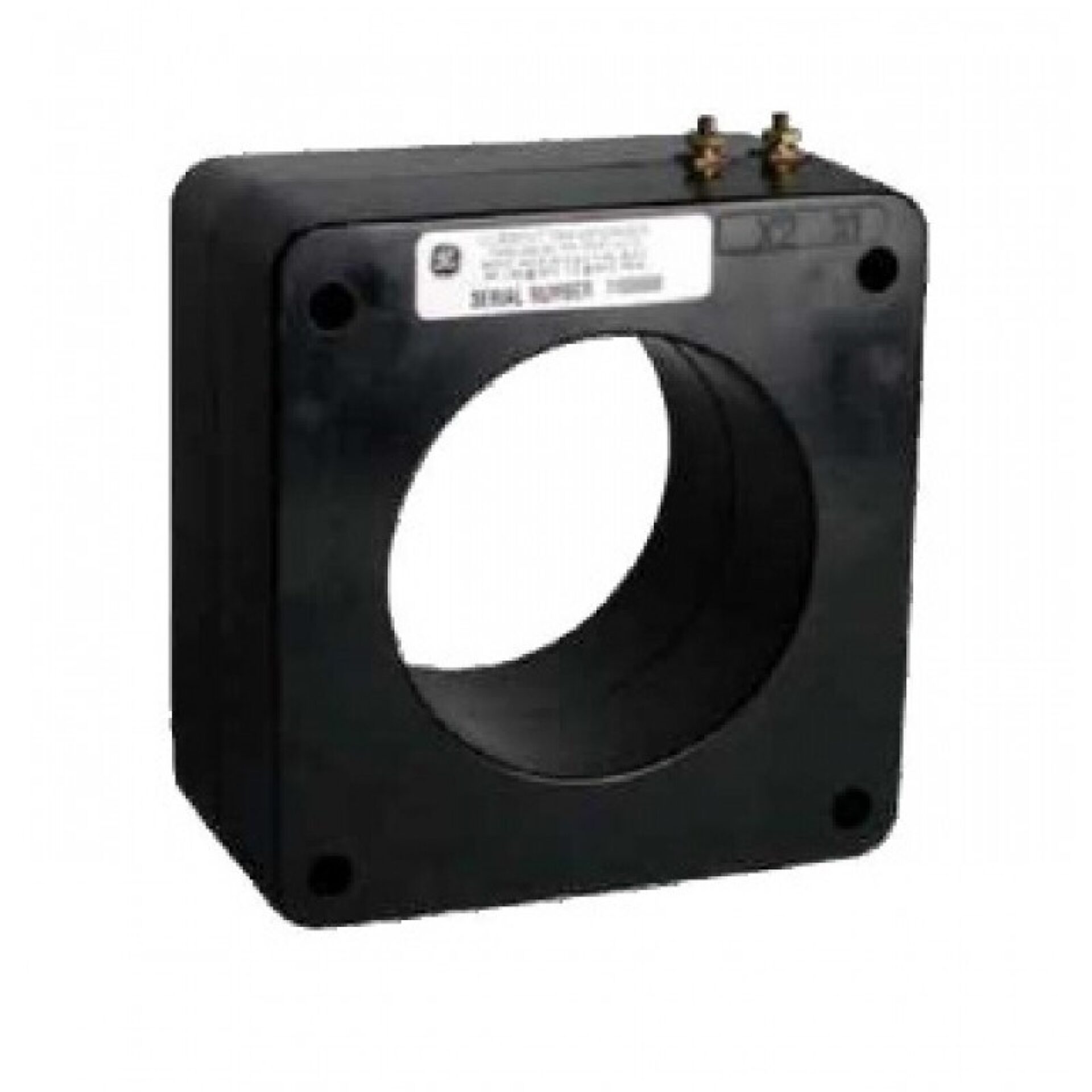

Model JAS-0C Indoor Current Transformer
Introducing the Model JAS-0C Indoor Current Transformer, a reliable and precise solution for electrical measurement and monitoring, proudly. Designed to meet the demanding needs of modern electrical systems, this current transformer offers accurate current measurement in indoor environments, ensuring safety and efficiency across a variety of applications. Whether used in industrial, commercial, or institutional settings, the Model JAS-0C provides dependable performance for both installation and maintenance tasks.
Overview
Introducing the Model JAS-0C Indoor Current Transformer, a reliable and precise solution for electrical measurement and monitoring, proudly. Designed to meet the demanding needs of modern electrical systems, this current transformer offers accurate current measurement in indoor environments, ensuring safety and efficiency across a variety of applications. Whether used in industrial, commercial, or institutional settings, the Model JAS-0C provides dependable performance for both installation and maintenance tasks.
a global leader in electrical and electronic products, this current transformer benefits from advanced engineering and rigorous quality standards. Its compact design allows for easy integration into existing electrical systems, while its robust construction ensures durability and long-lasting operation. The Model JAS-0C is specifically engineered to deliver precise readings, helping technicians and engineers monitor electrical loads, diagnose issues, and optimize system performance with confidence.
With its user-friendly features and high accuracy, the Model JAS-0C Indoor Current Transformer is an essential tool for professionals seeking dependable electrical measurement solutions. Backed by ’s reputation for innovation and quality, this product exemplifies excellence in electrical instrumentation. Whether for new installations or system upgrades, the Model JAS-0C provides the performance and reliability needed to support safe and efficient electrical system management.
Request a Quote for Model JAS-0C Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 9 lbs
- Mounting
- Indoor
- Application
- Metering, Protection, Switchgear
- Standards
- UL
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- Window Diameter
- 4.00 in
- Regulatory Agency Approval
- UL Recognized File E93779
- Continuous Thermal Current Rating Factor
- 30 C Ambient: 1.33; 55 C Ambient: 1.00
- Secondary Terminals
- No. 8-32 brass studs with flatwasher, lockwasher, and nut
- Outline Drawing
- 0121C33703
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C | Secondary Resistance |
|---|---|---|---|---|---|---|
| 150 | 5 | 150:5 | C10 | 1.33 | 1 | 0.085 |
| 200 | 5 | 200:5 | — | 1.33 | 1 | 0.113 |
| 300 | 5 | 300:5 | — | 1.33 | 1 | 0.17 |
| 400 | 5 | 400:5 | — | 1.33 | 1 | 0.227 |
| 500 | 5 | 500:5 | — | 1.33 | 1 | 0.195 |
| 600 | 5 | 600:5 | C50 | 1.33 | 1 | 0.34 |
| 800 | 5 | 800:5 | — | 1.33 | 1 | 0.374 |
| 1000 | 5 | 1000:5 | — | 1.33 | 1 | 0.45 |
| 1200 | 5 | 1200:5 | C50 | 1.33 | 1 | 0.68 |
| 1500 | 5 | 1500:5 | C20 | 1.33 | 1 | 0.487 |
| 1600 | 5 | 1600:5 | C20 | 1.33 | 1 | 0.519 |
| 2000 | 5 | 2000:5 | C20 | 1.33 | 1 | 0.649 |
