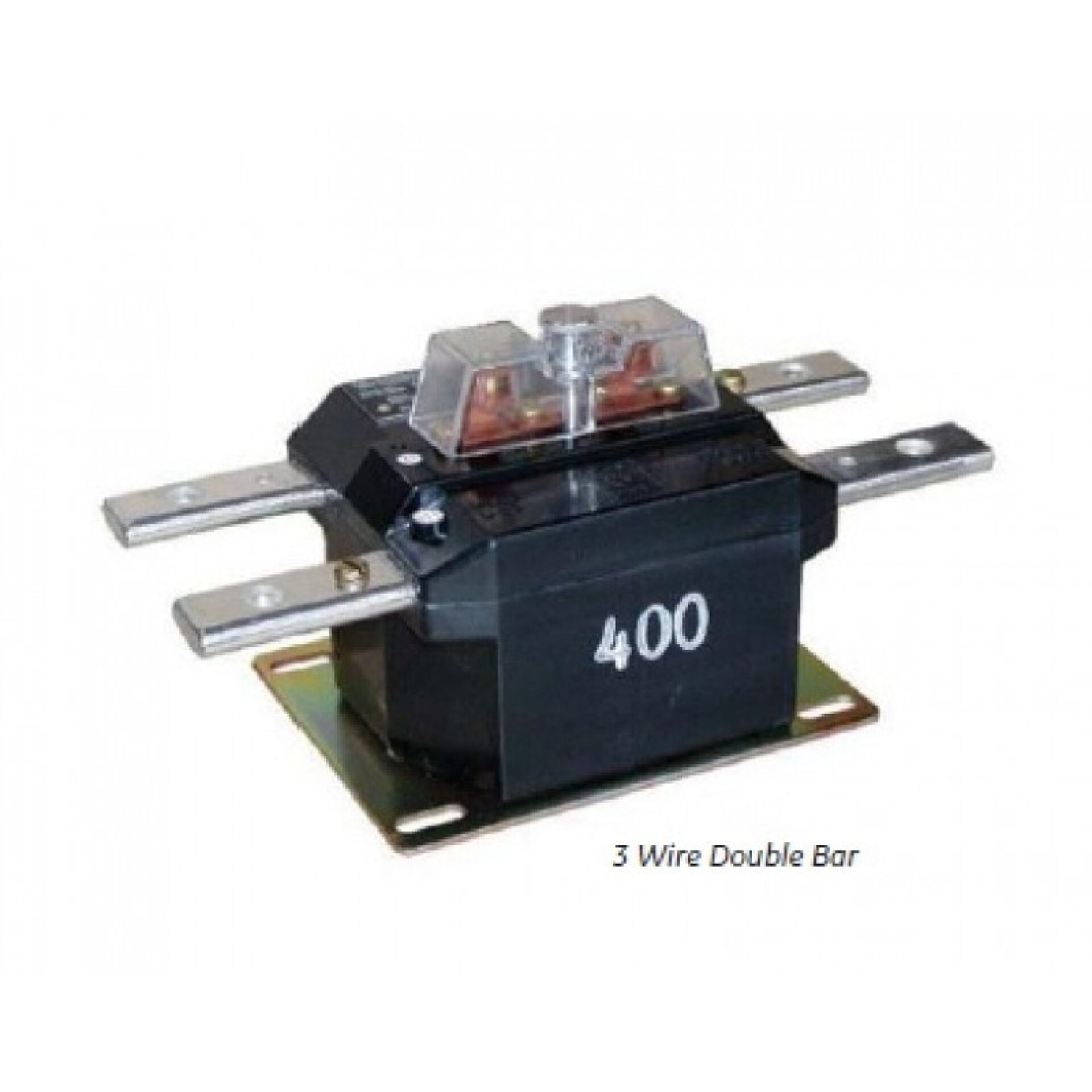

Model JCA-0C Indoor Current Transformer
Introducing the Model JCA-0C Indoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise current measurements within electrical systems, this current transformer is an essential component for professionals seeking reliable and accurate data collection in various applications. Whether used in industrial, commercial, or residential settings, the JCA-0C is engineered to meet demanding performance standards, ensuring consistent operation and dependable results.
Overview
Introducing the Model JCA-0C Indoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise current measurements within electrical systems, this current transformer is an essential component for professionals seeking reliable and accurate data collection in various applications. Whether used in industrial, commercial, or residential settings, the JCA-0C is engineered to meet demanding performance standards, ensuring consistent operation and dependable results.
a globally recognized leader in electrical and electronic products, this current transformer benefits from advanced manufacturing processes and rigorous quality control. Spectrum Industries, a trusted provider of electrical instrumentation, offers this product to help technicians and engineers optimize their systems. The JCA-0C is designed for indoor use, featuring a compact and durable construction that facilitates easy installation and maintenance.
With its precise current transformation capabilities, the Model JCA-0C enables accurate monitoring and control of electrical currents, contributing to enhanced system efficiency and safety. Its versatile design makes it suitable for various measurement and protection applications, supporting the seamless integration into existing electrical infrastructure. Trust in the quality and reliability of the -produced Model JCA-0C Indoor Current Transformer, available through Spectrum Industries, to meet your current measurement needs with confidence.
Request a Quote for Model JCA-0C Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 9 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated Voltage / Insulation Level
- 0.6 kV, BIL 10 kV full wave
- Primary Type
- Wound primary, 600 V, 10 kV BIL, 50-1,200 A
- Construction and Insulation
- Core and coil encapsulated in polyurethane resin within a molded case; low water absorption; resistant to oil and chemicals
- Core and Coils
- Grain-oriented silicon steel core, annealed under controlled factory conditions; secondary winding of heavy enameled copper wire, evenly distributed for accuracy
- Secondary Terminals
- Tin-plated brass, compression type; interlocked shorting device prevents connection error; clear plastic terminal cover, sealable
- Primary Bars
- Tin-plated copper bars; 3/8" bolts for 400:5 and below, 1/2" bolts for 500:5 and above
- Polarity Marking
- Primary and secondary polarity marks H1, H2 and X1, X2 molded into case
- Nameplate
- Laser engraved aluminum, nominal current rating marked in large numerals
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- ANSI metering accuracy class 0.3B-0.1 and 0.3B-0.2, 60 Hz (all ratios)
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|
| 50 | 5 | 50:5 | 0.3B0.2 | 1.5 |
| 100 | 5 | 100:5 | 0.3B0.2 | 1.5 |
| 150 | 5 | 150:5 | 0.3B0.2 | 1.5 |
| 200 | 5 | 200:5 | 0.3B0.2 | 1.5 |
| 300 | 5 | 300:5 | 0.3B0.2 | 1.5 |
| 400 | 5 | 400:5 | 0.3B0.2 | 1.5 |
| 500 | 5 | 500:5 | 0.3B0.2 | 1.5 |
| 600 | 5 | 600:5 | 0.3B0.2 | 1.5 |
| 800 | 5 | 800:5 | 0.3B0.2 | 1.5 |
| 1000 | 5 | 1000:5 | 0.3B0.2 | 1.2 |
| 1200 | 5 | 1200:5 | 0.3B0.2 | 1 |
