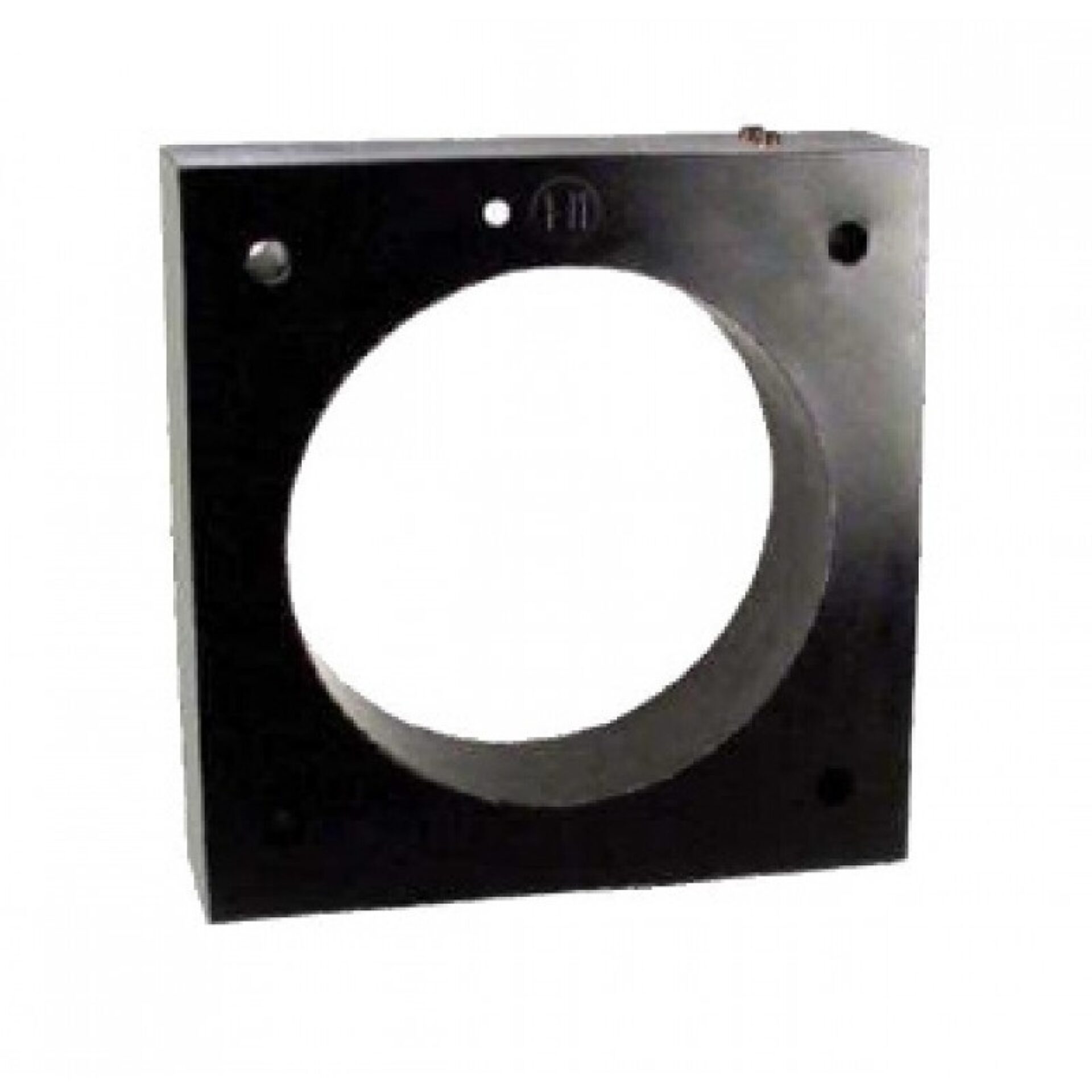

Model JCB-0CC Indoor Current Transformer
Introducing the Model JCB-0CC Indoor Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement within indoor electrical systems, this current transformer is an essential component for professionals seeking reliable and accurate data. Whether used in industrial, commercial, or residential applications, the JCB-0CC ensures optimal performance and safety by providing accurate current readings that facilitate effective monitoring and control.
Overview
Introducing the Model JCB-0CC Indoor Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement within indoor electrical systems, this current transformer is an essential component for professionals seeking reliable and accurate data. Whether used in industrial, commercial, or residential applications, the JCB-0CC ensures optimal performance and safety by providing accurate current readings that facilitate effective monitoring and control.
a globally recognized leader in electrical and electronic manufacturing, this current transformer benefits from decades of innovation and expertise. Its robust construction and advanced design make it suitable for demanding environments, offering durability and consistent performance over time. The JCB-0CC is engineered to seamlessly integrate into existing electrical setups, providing a straightforward installation process and dependable operation.
Spectrum Industries proudly offers this product as part of their extensive range of electrical measurement solutions. With a focus on quality and precision, the JCB-0CC Indoor Current Transformer is an excellent choice for engineers, technicians, and maintenance professionals who require accurate current measurement tools. Trust in the combined expertise of and Spectrum Industries to deliver products that meet the highest standards of performance, safety, and reliability.
Request a Quote for Model JCB-0CC Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Mounting
- Indoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- Window Diameter
- 7.25 in to 8.125 in
- Weight (by ratio)
- 50:5 and 100:5 ratios: 60 lbs; 400:5 to 600:5 ratios: 25 lbs; all other ratios: 20 lbs
- Secondary Terminals
- 10-32 brass inserts
- Optional Mounting Base
- Part number 1321B34149
- Reference Outline Drawing
- 0121C33807
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 50 | 5 | 50:5 | C10 | 1.5 | 1 |
| 100 | 5 | 100:5 | C10 | 1.5 | 1 |
| 400 | 5 | 400:5 | C10 | 1.5 | 1 |
| 500 | 5 | 500:5 | C20 | 1.5 | 1 |
| 600 | 5 | 600:5 | C20 | 1.5 | 1 |
| 800 | 5 | 800:5 | C50 | 1.5 | 1 |
| 1000 | 5 | 1000:5 | C50 | 1.5 | 1 |
| 1200 | 5 | 1200:5 | C50 | 1.5 | 1 |
| 1500 | 5 | 1500:5 | C100 | 1.5 | 1 |
| 2000 | 5 | 2000:5 | C100 | 1.5 | 1 |
| 2500 | 5 | 2500:5 | C100 | 1.5 | 1 |
| 3000 | 5 | 3000:5 | C100 | 1.5 | 1 |
| 4000 | 5 | 4000:5 | C100 | 1.5 | 1 |
| 5000 | 5 | 5000:5 | C100 | 1.33 | 1 |
| 6000 | 5 | 6000:5 | C100 | 1 | 0.75 |
| 1200 | 5 | 1200:5MR | C50 | 1.5 | 1 |
| 2000 | 5 | 2000:5MR | C100 | 1.5 | 1 |
| 3000 | 5 | 3000:5MR | C100 | 1.5 | 1 |
| 4000 | 5 | 4000:5MR | C100 | 1.5 | 1 |
