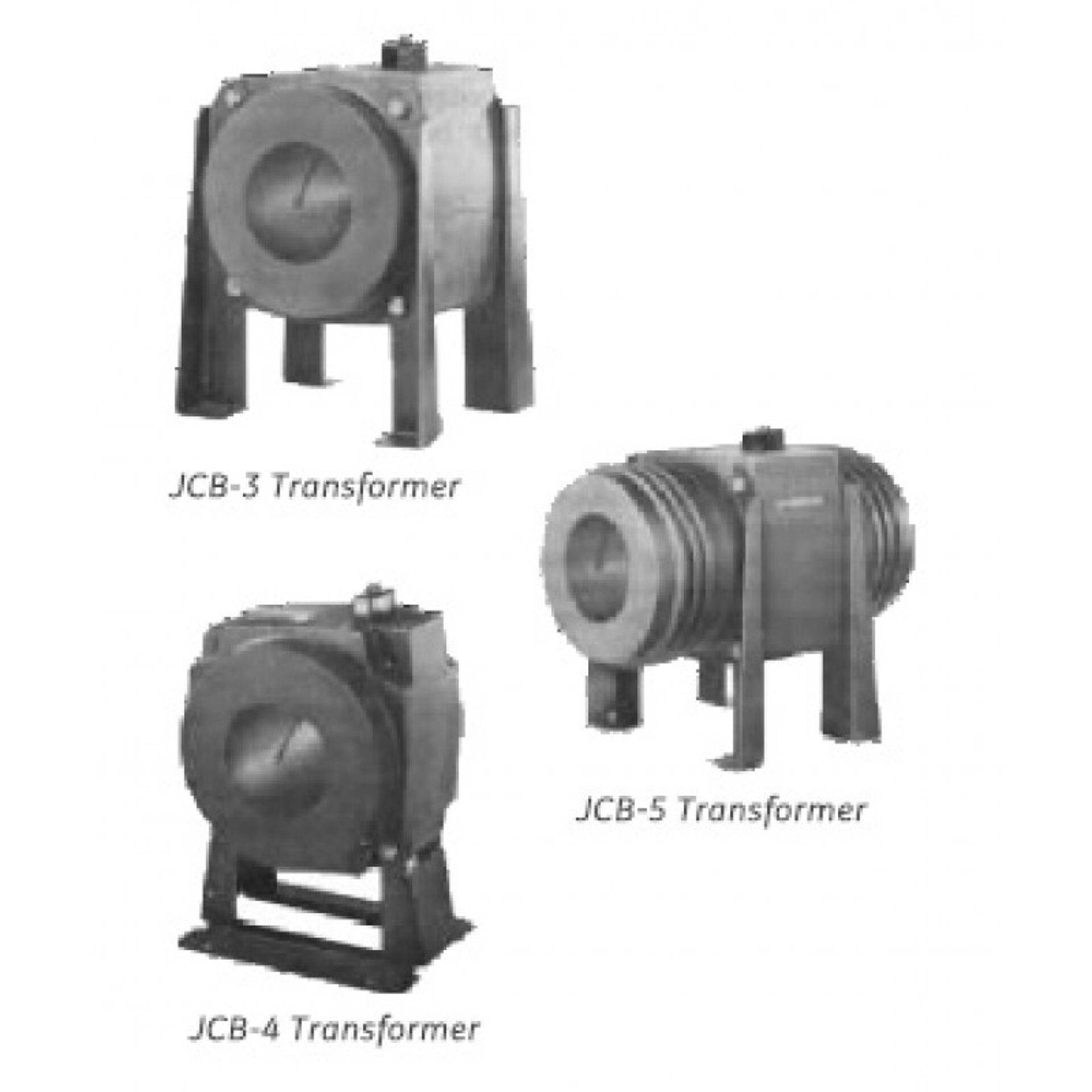

Model JCB-4 Indoor Current Transformer
Introducing the Model JCB-4 Indoor Current Transformer, a high-quality measurement solution, distributed by Spectrum Industries. Designed to provide precise current measurement in various electrical applications, this current transformer is an essential tool for engineers, technicians, and maintenance professionals seeking reliable and accurate data. With its robust construction and advanced engineering, the JCB-4 ensures consistent performance even in demanding indoor environments.
Overview
Introducing the Model JCB-4 Indoor Current Transformer, a high-quality measurement solution, distributed by Spectrum Industries. Designed to provide precise current measurement in various electrical applications, this current transformer is an essential tool for engineers, technicians, and maintenance professionals seeking reliable and accurate data. With its robust construction and advanced engineering, the JCB-4 ensures consistent performance even in demanding indoor environments.
a global leader in electrical and electronic equipment, the Model JCB-4 embodies the company's commitment to innovation and quality. It features a compact, durable design that facilitates easy installation and integration into existing electrical systems. The transformer is engineered to deliver accurate readings across a wide range of currents, making it suitable for both monitoring and testing purposes. Its indoor use capability ensures it is well-suited for use in control panels, switchgear, and other indoor electrical infrastructure.
Spectrum Industries, a trusted distributor of electrical measurement products, offers the Model JCB-4 to meet the needs of professionals requiring dependable current measurement solutions. Whether for routine maintenance, system upgrades, or detailed analysis, this current transformer provides the precision and reliability necessary to ensure electrical systems operate safely and efficiently. With our reputation for quality and Spectrum Industries' dedicated support, the Model JCB-4 is an excellent choice for your indoor current measurement needs.
Request a Quote for Model JCB-4 Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 75 kV
- Weight
- 85 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated Voltage
- 8,700 V
- Window Diameter
- 5.56 in
- Primary Current Range
- 600 A to 4,000 A
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 95 / 85 lbs
- Mechanical Rating
- Not specified
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | C200 | 1.33 | 1 |
| 2000 | 5 | 2000:5 | C400 | 1.33 | 1 |
| 3000 | 5 | 3000:5 | C400 | 1.33 | 1 |
| 4000 | 5 | 4000:5 | C200 | 1.33 | 1 |
| 1200 | 5 | 600/1200:5 | C100 | 2 | 1.5 |
| 1500 | 5 | 750/1500:5 | C100 | 2 | 1.5 |
| 2000 | 5 | 1000/2000:5 | C200 | 2 | 1.5 |
| 3000 | 5 | 1500/3000:5 | C200 | 2 | 1.5 |
| 4000 | 5 | 2000/4000:5 | C100 | 2 | 1.5 |
