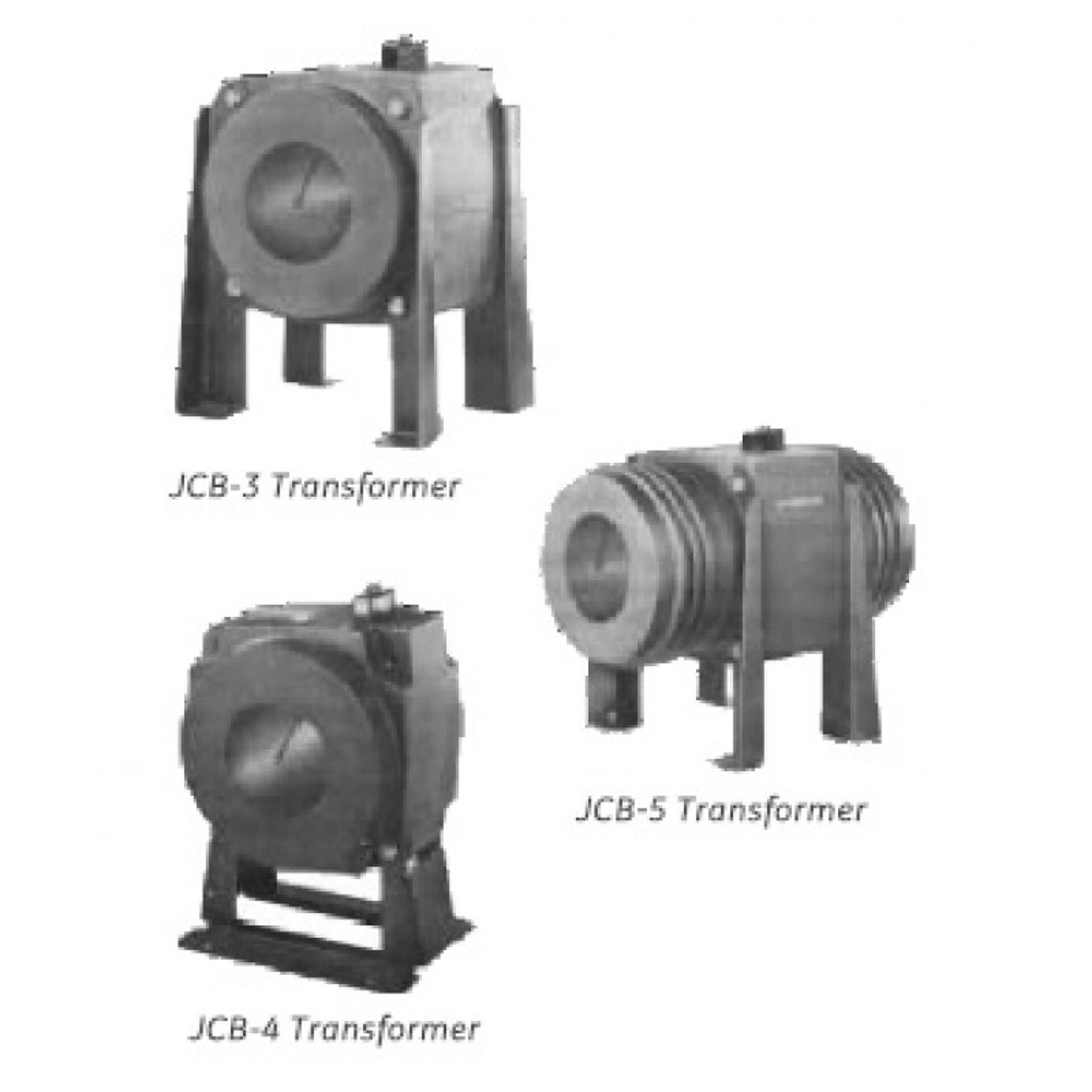

Model JCB-5 Indoor Current Transformer
Introducing the Model JCB-5 Indoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer is engineered to deliver precise and reliable performance in indoor environments. Whether used in industrial, commercial, or residential settings, the JCB-5 provides accurate current readings essential for effective system management and safety.
Overview
Introducing the Model JCB-5 Indoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical measurement and monitoring applications. and distributed by Spectrum Industries, this current transformer is engineered to deliver precise and reliable performance in indoor environments. Whether used in industrial, commercial, or residential settings, the JCB-5 provides accurate current readings essential for effective system management and safety.
The JCB-5 is built with durability and ease of use in mind. Its compact design allows for seamless installation within existing electrical systems, minimizing space requirements while maximizing functionality. The transformer features a robust construction that ensures long-term stability and resistance to environmental factors, making it suitable for continuous operation in indoor conditions. Its high accuracy and consistent output make it an ideal choice for professionals who require dependable current measurement for monitoring, control, and protection purposes.
a global leader in electrical equipment manufacturing, the Model JCB-5 benefits from advanced engineering and quality assurance standards. Spectrum Industries ensures that this product is readily available to meet the needs of various industries, providing a trusted component for electrical systems. Whether upgrading existing infrastructure or designing new installations, the JCB-5 Indoor Current Transformer offers a reliable and efficient solution for precise current measurement.
Request a Quote for Model JCB-5 Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 110 kV
- Weight
- 110 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated Voltage
- 15,000 V
- Window Diameter
- 5.56 in
- Primary Current Range
- 600 A to 4,000 A
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 120 / 110 lbs
- Mechanical Rating
- Not specified
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | C200 | 1.33 | 1 |
| 2000 | 5 | 2000:5 | C400 | 1.33 | 1 |
| 3000 | 5 | 3000:5 | C400 | 1.33 | 1 |
| 4000 | 5 | 4000:5 | C200 | 1.33 | 1 |
| 1200 | 5 | 600/1200:5 | C100 | 2 | 1.5 |
| 1500 | 5 | 750/1500:5 | C100 | 2 | 1.5 |
| 2000 | 5 | 1000/2000:5 | C200 | 2 | 1.5 |
| 3000 | 5 | 1500/3000:5 | C200 | 2 | 1.5 |
| 4000 | 5 | 2000/4000:5 | C100 | 2 | 1.5 |
