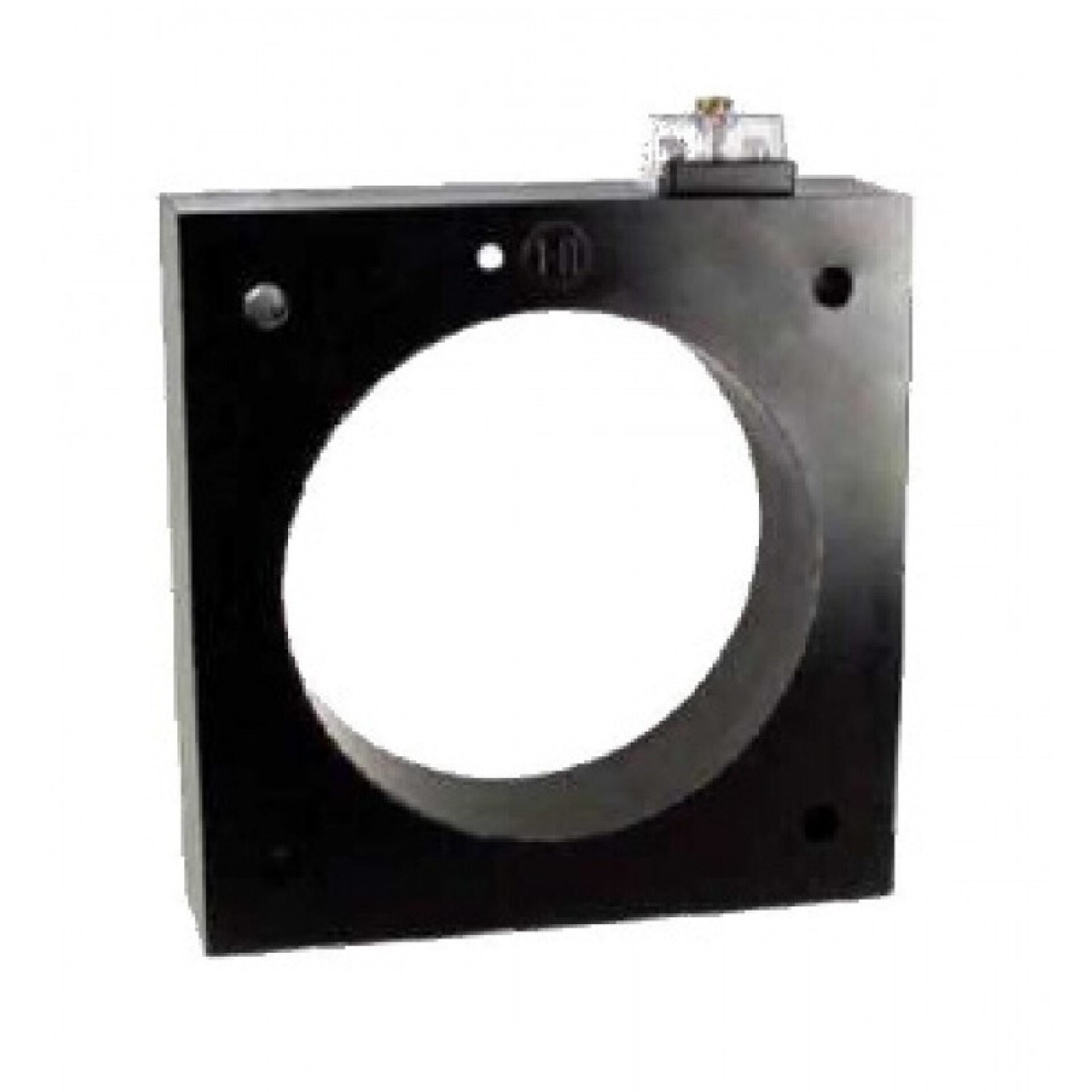

Model JCD-0C Indoor/Outdoor Current Transformer
Introducing the Model JCD-0C Indoor/Outdoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate electrical measurement and monitoring in a variety of applications. Whether you need to measure current in indoor or outdoor environments, the Model JCD-0C offers robust performance and durability to meet your specific needs.
Overview
Introducing the Model JCD-0C Indoor/Outdoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed with precision and reliability in mind, this current transformer is an essential component for accurate electrical measurement and monitoring in a variety of applications. Whether you need to measure current in indoor or outdoor environments, the Model JCD-0C offers robust performance and durability to meet your specific needs.
a globally recognized leader in electrical equipment and technology, this current transformer benefits from decades of engineering expertise and innovation. Its sturdy construction ensures dependable operation even under harsh conditions, making it suitable for installation in diverse settings. The design emphasizes ease of installation and maintenance, allowing technicians to efficiently integrate it into existing systems without hassle.
The Spectrum Industries Model JCD-0C is engineered to deliver precise current readings, which are crucial for system monitoring, fault detection, and energy management. Its versatility and high performance make it an ideal choice for utility companies, industrial facilities, and commercial buildings. With Spectrum Industries' commitment to quality and our trusted manufacturing standards, this current transformer guarantees long-lasting, accurate performance that you can rely on for your electrical measurement needs.
Request a Quote for Model JCD-0C Indoor/Outdoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 20 lbs
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13
- Window Diameter
- 8.13 in
- Rated Voltage
- 600 V
- UL File Number
- E93779
- Construction / Insulation
- Core and coil encapsulated in polyurethane resin, UV resistant for outdoor use
- Secondary Terminals
- Tin plated brass, compression type, 0.275in cross-hole, 1/4-28 clamp screw, shorting device interlocked to terminal cover
- Mounting Base (optional, add)
- 2 lbs
- Outline Drawing
- 0121C33762
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 1500 | 5 | 1500:5 | C50 | 0.3B0.9 | 3 | 2.2 |
| 1500 | 5 | 1500:5 | C50 | 0.3B0.9 | 3 | 2.2 |
| 2000 | 5 | 2000:5 | C100 | 0.3B1.8 | 2 | 1.5 |
| 2000 | 5 | 2000:5 | C100 | 0.3B1.8 | 2 | 1.5 |
| 3000 | 5 | 3000:5 | C100 | 0.3B1.8 | 2 | 1.5 |
| 3000 | 5 | 3000:5 | C100 | 0.3B1.8 | 2 | 1.5 |
| 4000 | 5 | 4000:5 | C100 | 0.3B1.8 | 1.5 | 1.2 |
| 4000 | 5 | 4000:5 | C100 | 0.3B1.8 | 1.5 | 1.2 |
| 5000 | 5 | 5000:5 | C100 | 0.3B1.8 | 1 | — |
| 5000 | 5 | 5000:5 | C100 | 0.3B1.8 | 1 | — |
| 6000 | 5 | 6000:5 | C100 | 0.3B1.8 | 1 | — |
| 6000 | 5 | 6000:5 | C100 | 0.3B1.8 | 1 | — |
| 8000 | 5 | 8000:5 | C100 | 0.3B1.8 | 1 | — |
| 8000 | 5 | 8000:5 | C100 | 0.3B1.8 | 1 | — |
| — | 5 | 1000/2000:5 | — | 0.3B1.8 | 2 | — |
| — | 5 | 1000/2000:5 | — | 0.3B1.8 | 2 | — |
| — | 5 | 1500/3000:5 | — | 0.3B1.8 | 2 | — |
| — | 5 | 1500/3000:5 | — | 0.3B1.8 | 2 | — |
| — | 5 | 2000/4000:5 | — | 0.3B1.8 | 2 | — |
| — | 5 | 2000/4000:5 | — | 0.3B1.8 | 2 | — |
| — | 5 | 3000/6000:5 | — | 0.3B1.8 | 1.33 | — |
| — | 5 | 3000/6000:5 | — | 0.3B1.8 | 1.33 | — |
