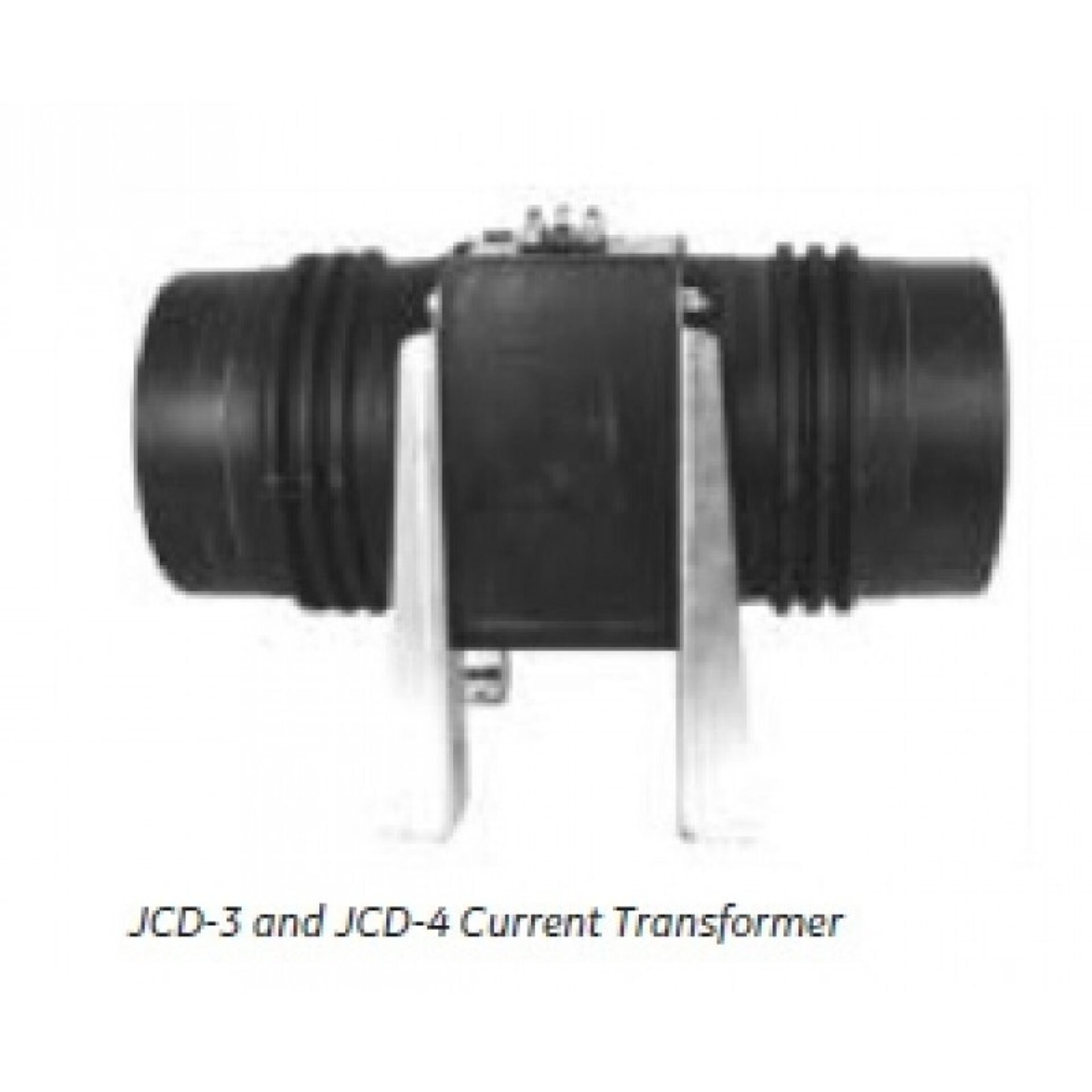

Model JCD-3 Outdoor Current Transformer - 5kV Class
Introducing the Model JCD-3 Outdoor Current Transformer, a high-performance solution designed to meet the demanding needs of electrical systems operating at 5kV class. and brought to you by Spectrum Industries, this current transformer exemplifies reliability, durability, and precision in outdoor electrical applications. Engineered to deliver accurate current measurements while withstanding harsh environmental conditions, the JCD-3 is an essential component for utility companies, industrial facilities, and electrical infrastructure projects.
Overview
Introducing the Model JCD-3 Outdoor Current Transformer, a high-performance solution designed to meet the demanding needs of electrical systems operating at 5kV class. and brought to you by Spectrum Industries, this current transformer exemplifies reliability, durability, and precision in outdoor electrical applications. Engineered to deliver accurate current measurements while withstanding harsh environmental conditions, the JCD-3 is an essential component for utility companies, industrial facilities, and electrical infrastructure projects.
Constructed with robust materials and adhering to stringent quality standards, the Model JCD-3 offers superior performance in outdoor settings. Its design ensures excellent insulation and resistance to weather elements such as rain, snow, and extreme temperatures, making it suitable for long-term deployment in diverse environments. The transformer’s compact form factor allows for easy installation without compromising on safety or functionality.
a global leader in electrical equipment manufacturing, this current transformer benefits from decades of innovation and expertise. Spectrum Industries, as the trusted distributor, ensures that customers receive a product that meets the highest standards of quality and reliability. Whether for new installations or upgrades to existing systems, the Model JCD-3 Outdoor Current Transformer is a dependable choice for accurately monitoring electrical currents at the 5kV class, helping to maintain safety, efficiency, and system integrity.
Request a Quote for Model JCD-3 Outdoor Current Transformer - 5kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 110 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Rated Voltage
- 5,000 V
- Window Diameter
- 5.56 in
- Primary Current Range
- 1,200 A to 4,000 A
- ANSI Meter Accuracy Class
- 0.3 at B-0.1 through B-1
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 120 / 110 lbs
- Revenue Metering Approval
- Measurement Canada AE-0840 or AE-1447
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 0.3B0.9 | 1.33 |
| 1500 | 5 | 1500:5 | C200 | 0.3B0.9 | 1.33 |
| 2000 | 5 | 2000:5 | C400 | 0.3B0.9 | 1.33 |
| 3000 | 5 | 3000:5 | C400 | 0.3B0.9 | 1.33 |
| 4000 | 5 | 4000:5 | C200 | 0.3B0.9 | 1.33 |
| 1200 | 5 | 600/1200:5 | C100 | 0.3B0.9 | 2 |
| 1500 | 5 | 750/1500:5 | C100 | 0.3B0.9 | 2 |
| 2000 | 5 | 1000/2000:5 | C200 | 0.3B0.9 | 2 |
| 3000 | 5 | 1500/3000:5 | C200 | 0.3B0.9 | 2 |
| 4000 | 5 | 2000/4000:5 | C100 | 0.3B0.9 | 2 |
