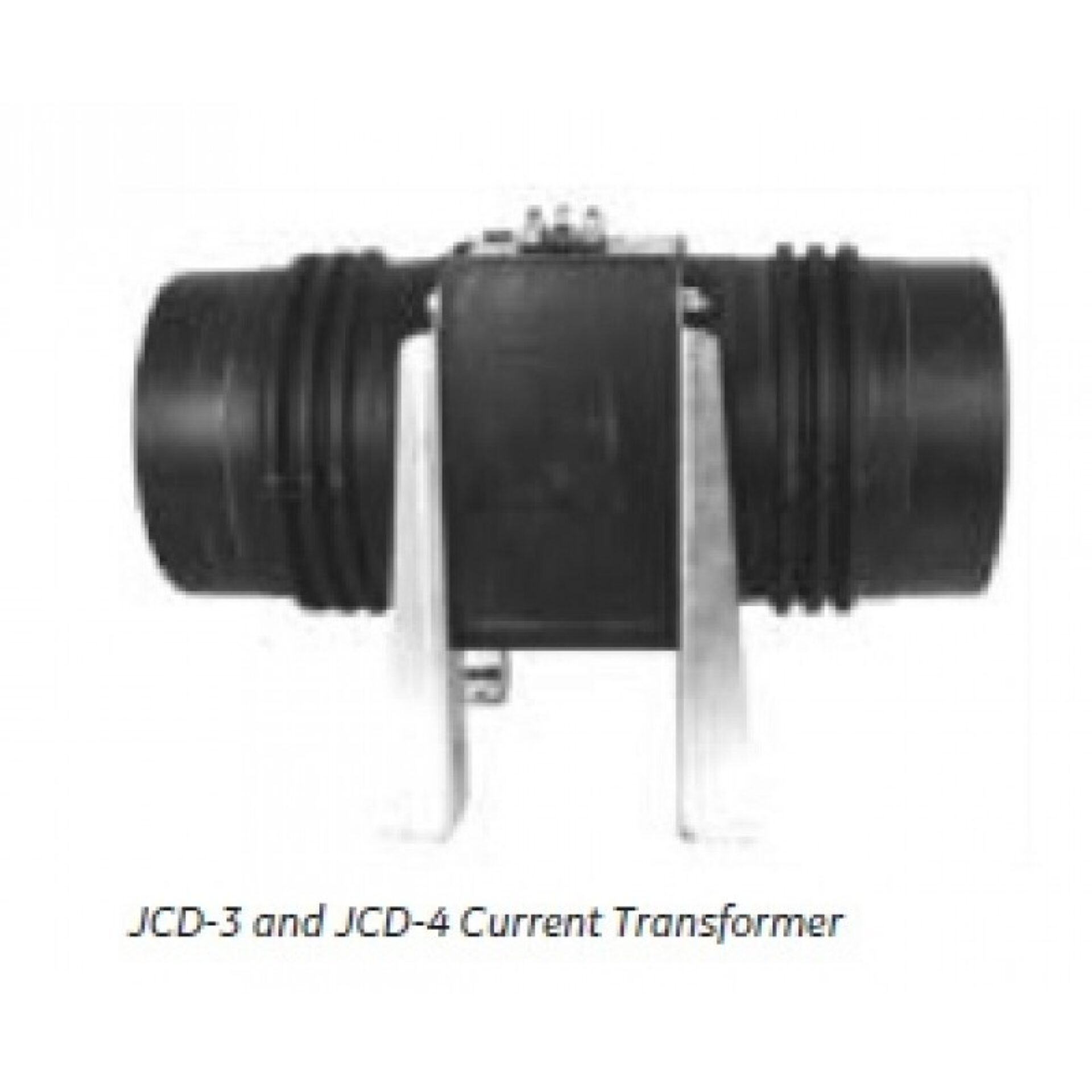

Model JCD-4 Outdoor Current Transformer - 8.7kV Class
Introducing the Model JCD-4 Outdoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical utilities and industrial applications. and brought to you by Spectrum Industries, this current transformer exemplifies precision, durability, and reliability. Engineered specifically for outdoor environments, the JCD-4 is built to withstand harsh weather conditions while providing accurate current measurement essential for system monitoring and protection.
Overview
Introducing the Model JCD-4 Outdoor Current Transformer, a high-quality solution designed to meet the demanding needs of electrical utilities and industrial applications. and brought to you by Spectrum Industries, this current transformer exemplifies precision, durability, and reliability. Engineered specifically for outdoor environments, the JCD-4 is built to withstand harsh weather conditions while providing accurate current measurement essential for system monitoring and protection.
The Model JCD-4 features an 87kV class rating, making it suitable for high-voltage applications where safety and performance are paramount. Its rugged construction ensures long-term performance in outdoor settings, reducing maintenance costs and downtime. The transformer’s design emphasizes safety, ease of installation, and consistent accuracy, making it an ideal choice for utility companies, substations, and industrial facilities seeking dependable current measurement solutions.
a leader in electrical equipment manufacturing, the JCD-4 embodies decades of expertise in power systems. Spectrum Industries’ distribution of this product ensures that customers receive a high-quality, certified component that adheres to industry standards. Whether for new installations or upgrades to existing systems, the Model JCD-4 Outdoor Current Transformer offers a robust and reliable solution for accurate current measurement in demanding environments.
Request a Quote for Model JCD-4 Outdoor Current Transformer - 8.7kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 75 kV
- Weight
- 110 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Rated Voltage
- 8,700 V
- Window Diameter
- 5.56 in
- Primary Current Range
- 1,200 A to 4,000 A
- ANSI Meter Accuracy Class
- 0.3 at B-0.1 through B-1
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 120 / 110 lbs
- Revenue Metering Approval
- Measurement Canada AE-0840 or AE-1447
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 0.3B0.9 | 1.33 |
| 1500 | 5 | 1500:5 | C200 | 0.3B0.9 | 1.33 |
| 2000 | 5 | 2000:5 | C400 | 0.3B0.9 | 1.33 |
| 3000 | 5 | 3000:5 | C400 | 0.3B0.9 | 1.33 |
| 4000 | 5 | 4000:5 | C200 | 0.3B0.9 | 1.33 |
| 1200 | 5 | 600/1200:5 | C100 | 0.3B0.9 | 2 |
| 1500 | 5 | 750/1500:5 | C100 | 0.3B0.9 | 2 |
| 2000 | 5 | 1000/2000:5 | C200 | 0.3B0.9 | 2 |
| 3000 | 5 | 1500/3000:5 | C200 | 0.3B0.9 | 2 |
| 4000 | 5 | 2000/4000:5 | C100 | 0.3B0.9 | 2 |
