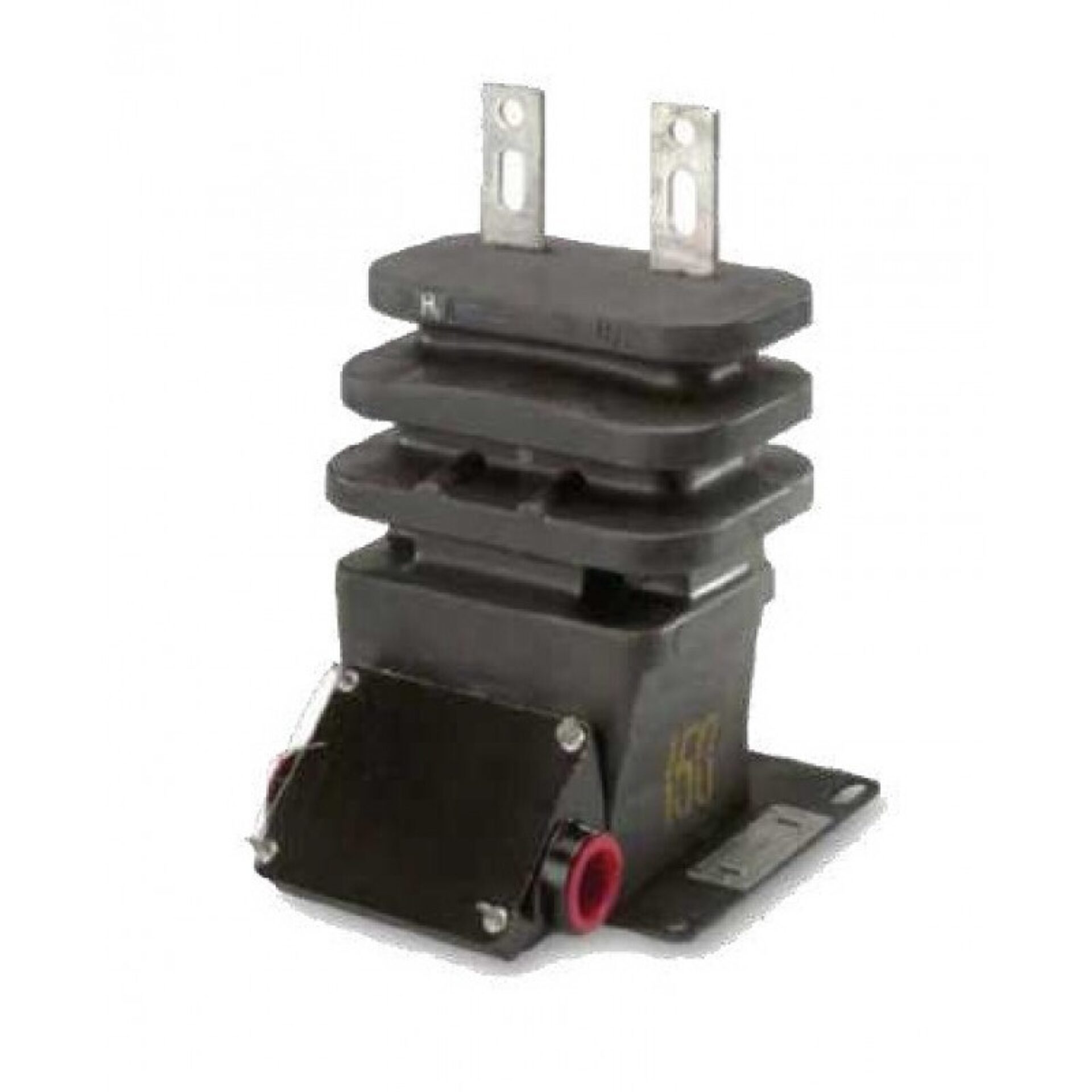

Model JCK-3 Outdoor Current Transformer - 5kV Class
Introducing the Model JCK-3 Outdoor Current Transformer, a high-quality solution, manufactured by Spectrum Industries. Designed specifically for demanding electrical applications, this current transformer offers reliable performance in outdoor environments, ensuring accurate current measurement and protection for your electrical systems. With a voltage rating of 5 kV class, the JCK-3 is ideal for utility, industrial, and commercial installations where durability and precision are paramount.
Overview
Introducing the Model JCK-3 Outdoor Current Transformer, a high-quality solution, manufactured by Spectrum Industries. Designed specifically for demanding electrical applications, this current transformer offers reliable performance in outdoor environments, ensuring accurate current measurement and protection for your electrical systems. With a voltage rating of 5 kV class, the JCK-3 is ideal for utility, industrial, and commercial installations where durability and precision are paramount.
Spectrum Industries, renowned for its commitment to quality and innovation, has partnered with to produce this robust current transformer. The JCK-3 features a rugged construction that withstands harsh weather conditions, making it suitable for outdoor use without compromising accuracy or safety. Its compact design allows for easy installation and integration into existing electrical infrastructure, providing a seamless solution for monitoring and controlling electrical currents.
This model is designed to meet or exceed industry standards, ensuring dependable operation over its lifespan. Whether you're managing power distribution, safeguarding equipment, or performing detailed electrical analysis, the -produced Spectrum Industries Model JCK-3 Outdoor Current Transformer delivers the performance and reliability you need. Trust in Spectrum Industries' expertise and our engineering excellence to support your electrical measurement and protection needs with this durable, high-performance current transformer.
Request a Quote for Model JCK-3 Outdoor Current Transformer - 5kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 35 lbs
- Mounting
- Outdoor
- Application
- Metering, Distribution
- Standards
- ANSI/IEEE C57.13
- Creep Distance
- 14 in (355.6 mm) per Features section
- Strike Distance
- 8.75 in (222.25 mm)
- Insulation Material
- HY-BUTE 60 molded butyl rubber
- Dimensions
- 13.63 in (H) x 9.38 in (W) x 11 in (D)
- Shipping Weight
- 43 lbs
- Nominal System Voltage
- 5.0 kV (per sample nameplate for the 10:5 ratio)
- Polarity
- Subtractive
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|
| 5 | 5 | 5:5 | 0.3B0.5 | 3 |
| 10 | 5 | 10:5 | 0.3B0.5 | 3 |
| 15 | 5 | 15:5 | 0.3B0.5 | 3 |
| 20 | 5 | 20:5 | 0.3B0.5 | 3 |
| 25 | 5 | 25:5 | 0.3B0.5 | 3 |
| 30 | 5 | 30:5 | 0.3B0.5 | 3 |
| 40 | 5 | 40:5 | 0.3B0.5 | 3 |
| 50 | 5 | 50:5 | 0.3B0.5 | 3 |
| 75 | 5 | 75:5 | 0.3B0.5 | 3 |
| 100 | 5 | 100:5 | 0.3B0.5 | 3 |
| 150 | 5 | 150:5 | 0.3B0.5 | 3 |
| 200 | 5 | 200:5 | 0.3B0.5 | 3 |
| 300 | 5 | 300:5 | 0.3B0.5 | 3 |
| 400 | 5 | 400:5 | 0.3B0.5 | 2.5 |
| 600 | 5 | 600:5 | 0.3B0.5 | 2 |
| 800 | 5 | 800:5 | 0.3B0.5 | 1.5 |
