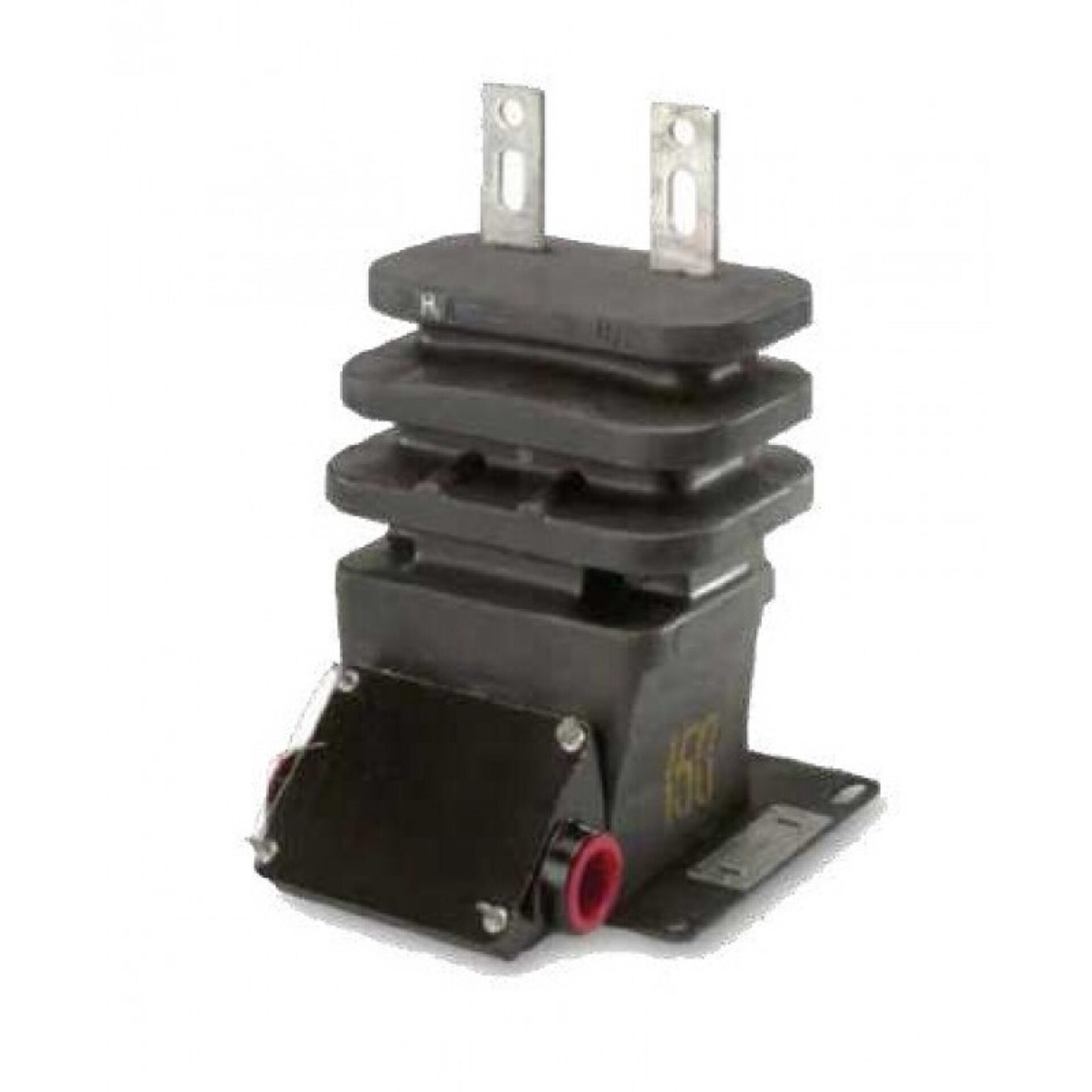

Model JCK-5 Outdoor Current Transformer - 15kV Class
Introducing the Model JCK-5 Outdoor Current Transformer, a high-quality product designed to meet the demanding needs of electrical distribution and metering applications. and brought to you by Spectrum Industries, this current transformer is engineered for durability, accuracy, and reliable performance in outdoor environments. With a 15kV class rating, the Model JCK-5 is ideal for use in utility and industrial settings where precise current measurement is essential for system monitoring and protection.
Overview
Introducing the Model JCK-5 Outdoor Current Transformer, a high-quality product designed to meet the demanding needs of electrical distribution and metering applications. and brought to you by Spectrum Industries, this current transformer is engineered for durability, accuracy, and reliable performance in outdoor environments. With a 15kV class rating, the Model JCK-5 is ideal for use in utility and industrial settings where precise current measurement is essential for system monitoring and protection.
Constructed with robust materials and designed for outdoor installation, the Model JCK-5 ensures long-term stability and resistance to harsh weather conditions. Its compact form factor allows for easy integration into existing electrical infrastructure, while its high accuracy ensures dependable readings critical for efficient system management. Whether used for revenue metering, system protection, or load analysis, this current transformer delivers consistent performance across a wide range of operating conditions.
a trusted name in electrical equipment manufacturing, the Model JCK-5 reflects a commitment to quality and innovation. Spectrum Industries proudly offers this product as part of their extensive portfolio of electrical solutions, emphasizing reliability and customer satisfaction. If you require a durable, accurate, and weather-resistant current transformer for your outdoor electrical systems, the Model JCK-5 is an excellent choice to ensure safe and efficient operation.
Request a Quote for Model JCK-5 Outdoor Current Transformer - 15kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 110 kV
- Weight
- 35 lbs
- Mounting
- Outdoor
- Application
- Metering, Distribution
- Standards
- ANSI/IEEE C57.13
- Voltage Rating
- 15,000 V
- Meter Accuracy Class
- 0.3B0.5
- Creep Distance
- 14 in
- Strike Distance
- 8.75 in
- Insulation Material
- HY-BUTE 60 Butyl Rubber
- Dimensions
- 13.63 in (h) x 9.38 in (w) x 11 in (d)
- Shipping Weight
- 43 lbs
- Polarity
- Subtractive
- Primary Terminal
- Flat copper bars, tin-plated, one bolt hole and slot
- Secondary Terminal
- Clamp-type, 0.275 in diameter hole, bronze
- Ground Terminal
- 1/4-20 round-head, welded in baseplate bracket
- Baseplate Material
- Stainless steel
Specification Table
| Primary V | Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|---|
| 15000 | 5 | 5 | 5:5 | 0.3B0.5 | 3 |
| 15000 | 10 | 5 | 10:5 | 0.3B0.5 | 3 |
| 15000 | 15 | 5 | 15:5 | 0.3B0.5 | 3 |
| 15000 | 20 | 5 | 20:5 | 0.3B0.5 | 3 |
| 15000 | 25 | 5 | 25:5 | 0.3B0.5 | 3 |
| 15000 | 30 | 5 | 30:5 | 0.3B0.5 | 3 |
| 15000 | 40 | 5 | 40:5 | 0.3B0.5 | 3 |
| 15000 | 50 | 5 | 50:5 | 0.3B0.5 | 3 |
| 15000 | 75 | 5 | 75:5 | 0.3B0.5 | 3 |
| 15000 | 100 | 5 | 100:5 | 0.3B0.5 | 3 |
| 15000 | 150 | 5 | 150:5 | 0.3B0.5 | 3 |
| 15000 | 200 | 5 | 200:5 | 0.3B0.5 | 3 |
| 15000 | 300 | 5 | 300:5 | 0.3B0.5 | 3 |
| 15000 | 400 | 5 | 400:5 | 0.3B0.5 | 2.5 |
| 15000 | 600 | 5 | 600:5 | 0.3B0.5 | 2 |
| 15000 | 800 | 5 | 800:5 | 0.3B0.5 | 1.5 |
