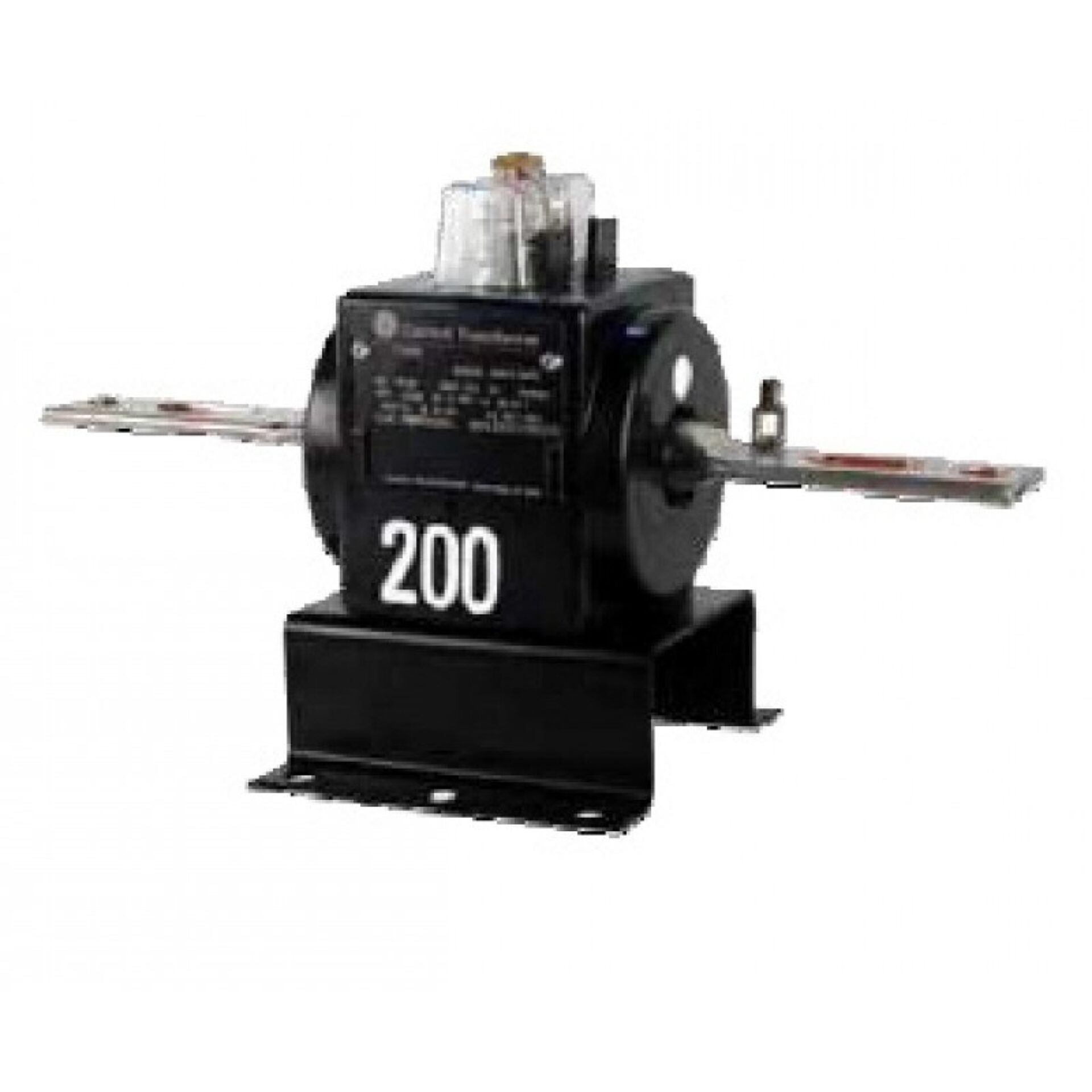

Model JCM-0C Indoor Current Transformer
Introducing the Model JCM-0C Indoor Current Transformer, a reliable and precise solution for measuring electrical current within indoor environments. and produced by Spectrum Industries, this current transformer is designed to meet the demanding needs of electrical professionals who require accurate current measurement for monitoring, testing, and ensuring the safety of electrical systems. Its compact and durable design allows for easy installation in various indoor settings, making it an essential tool for electricians, engineers, and maintenance personnel.
Overview
Introducing the Model JCM-0C Indoor Current Transformer, a reliable and precise solution for measuring electrical current within indoor environments. and produced by Spectrum Industries, this current transformer is designed to meet the demanding needs of electrical professionals who require accurate current measurement for monitoring, testing, and ensuring the safety of electrical systems. Its compact and durable design allows for easy installation in various indoor settings, making it an essential tool for electricians, engineers, and maintenance personnel.
The Model JCM-0C features advanced engineering by, renowned for their commitment to quality and innovation in electrical components. Spectrum Industries has carefully crafted this current transformer to deliver consistent performance, with high accuracy and minimal electromagnetic interference. Whether used in industrial facilities, commercial buildings, or residential applications, this product provides dependable current readings that help facilitate efficient system management and troubleshooting.
Built with user convenience in mind, the Model JCM-0C is designed for straightforward installation and operation, ensuring that professionals can quickly integrate it into their existing electrical setups. Its robust construction ensures long-lasting durability, even in demanding indoor environments. Trust the combination of ’s technological expertise and Spectrum Industries’ quality craftsmanship to provide a dependable solution for your current measurement needs.
Request a Quote for Model JCM-0C Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 5.8 lbs
- Mounting
- Indoor
- Application
- Metering
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- Primary Bar Standard
- ANSI C12.11
- Terminal Description
- Tin plated brass, compression type, 0.275" diameter cross-hole, 1/4-28 clamp screw
- Case Material
- Valox thermoplastic polyester resin
- Base Options
- Low base +0.25 lbs; High (EEI) base +2 in. height, +1.0 lbs
Specification Table
| Primary V | Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 600 | 200 | 5 | 200:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 200 | 5 | 200:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 200 | 5 | 200:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 200 | 5 | 200:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 200 | 5 | 200:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 200 | 5 | 200:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.5 | 2 | 1.5 |
