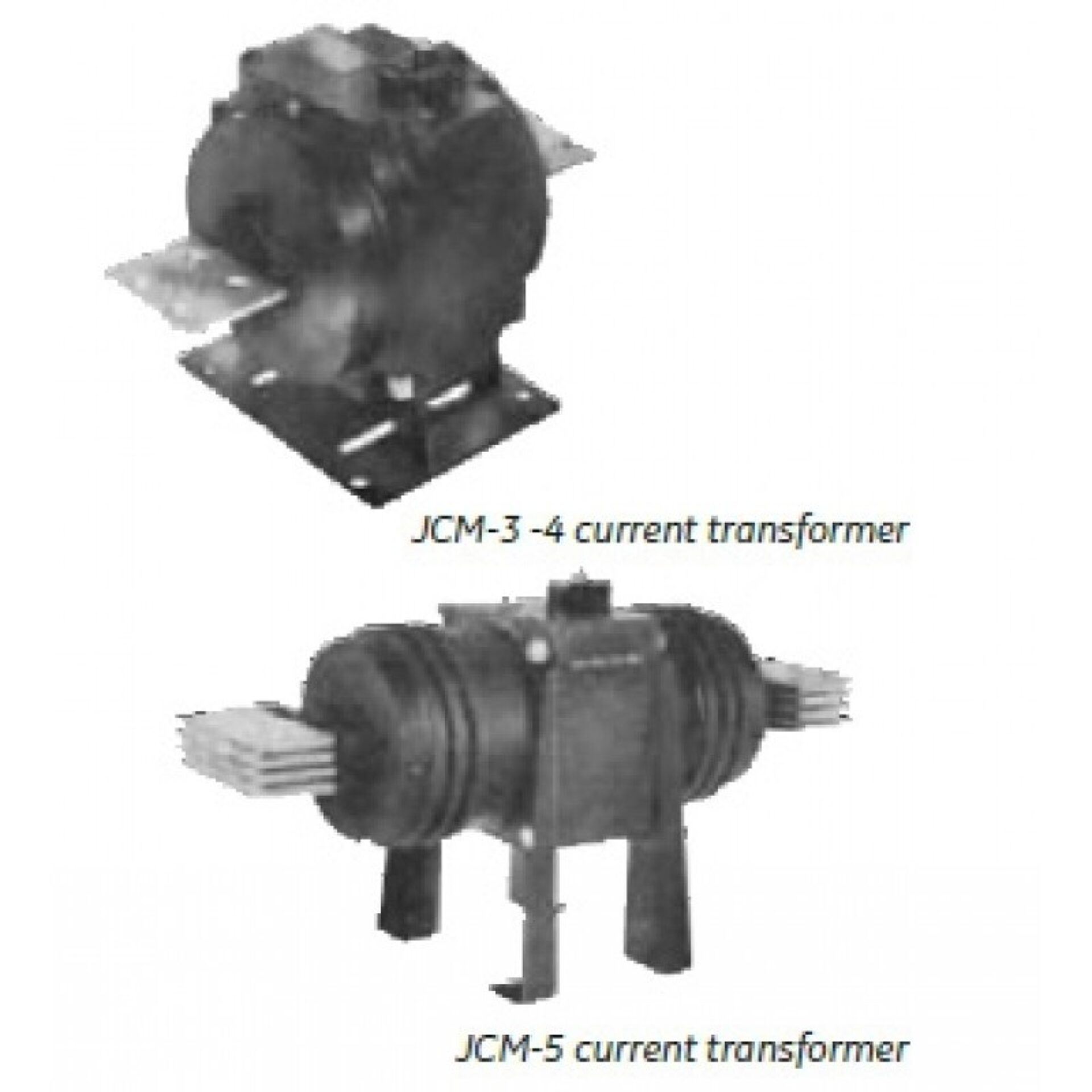

Model JCM-3 Indoor Current Transformers - 5kV Class
Introducing the Model JCM-3 Indoor Current Transformers, a high-quality solution designed to meet the rigorous demands of electrical measurement and protection applications. and produced by Spectrum Industries, this product exemplifies precision engineering and reliable performance. The JCM-3 series is specifically engineered for indoor use, providing accurate current measurement in various electrical systems while ensuring safety and durability.
Overview
Introducing the Model JCM-3 Indoor Current Transformers, a high-quality solution designed to meet the rigorous demands of electrical measurement and protection applications. and produced by Spectrum Industries, this product exemplifies precision engineering and reliable performance. The JCM-3 series is specifically engineered for indoor use, providing accurate current measurement in various electrical systems while ensuring safety and durability.
The Model JCM-3 current transformers are rated at 5 kV class, making them suitable for a wide range of industrial and commercial applications. Their robust construction ensures consistent performance even in challenging environments, and their compact design allows for easy installation within existing electrical infrastructure. These transformers are ideal for metering, protection, and control systems, offering precise current transformation to facilitate accurate monitoring and system management.
Spectrum Industries, renowned for its commitment to quality and innovation, produces these transformers under the trusted standards set by. This collaboration results in a product that combines ’s technological expertise with Spectrum Industries’ dedication to manufacturing excellence. Whether upgrading an existing system or designing a new electrical installation, the Model JCM-3 Indoor Current Transformers deliver dependable performance, helping ensure operational efficiency and safety. With their proven reliability and precision, these transformers are an excellent choice for professionals seeking durable and accurate current measurement solutions.
Request a Quote for Model JCM-3 Indoor Current Transformers - 5kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 72 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated Voltage
- 5,000 V
- Primary Current Range
- 600 A to 4,000 A
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 84 / 72 lbs
- Revenue Metering Approval
- Measurement Canada AE-0740 / AE-0310 / AE-0383 / AE-0850 / AE-1000
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 2000 | 5 | 2000:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 3000 | 5 | 3000:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 4000 | 5 | 4000:5 | C200 | 0.3B0.9 | 1 | 0.75 |
| 1200 | 5 | 600/1200:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 1500 | 5 | 750/1500:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 2000 | 5 | 1000/2000:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 3000 | 5 | 1500/3000:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 4000 | 5 | 2000/4000:5 | C100 | 0.3B0.9 | 2 | 1 |
