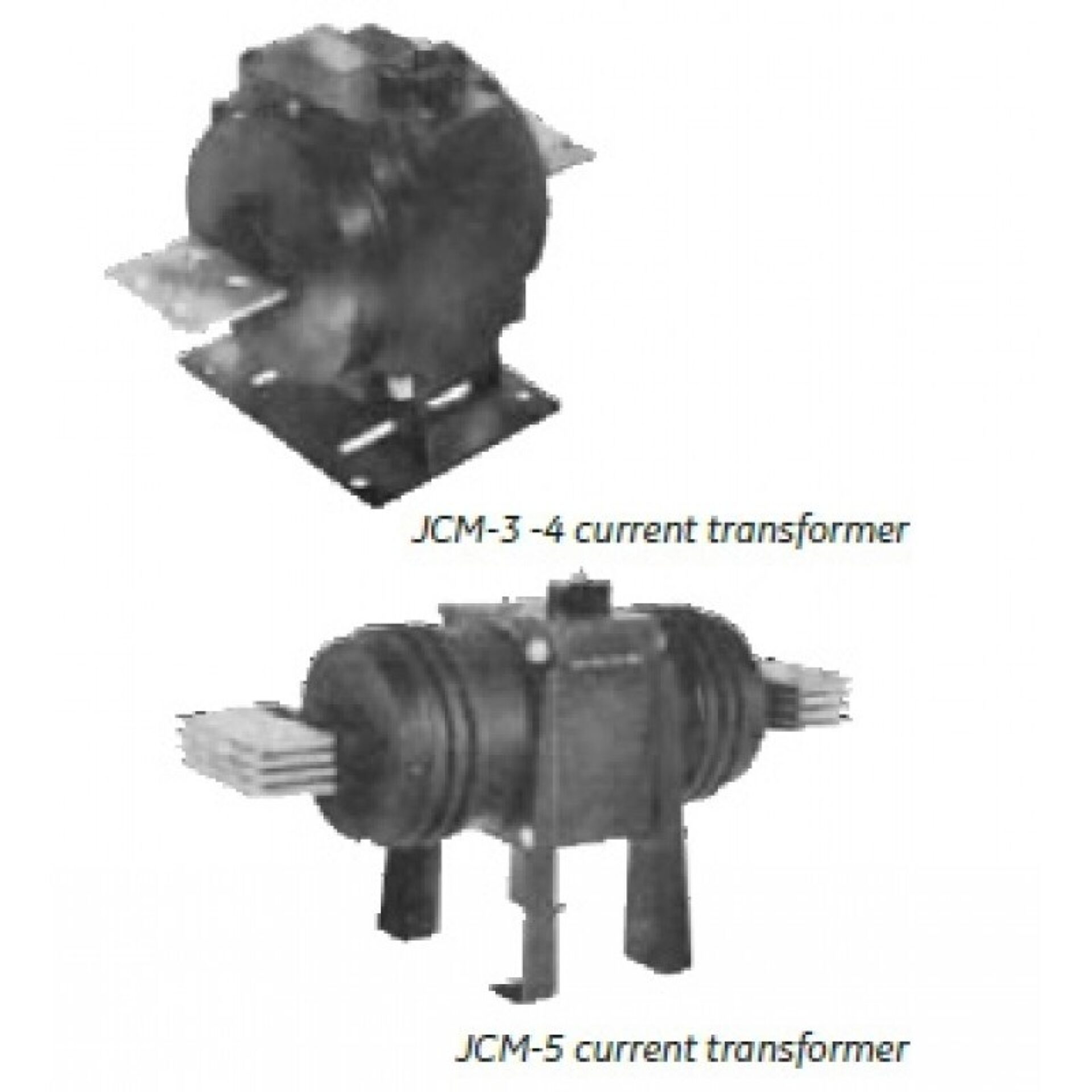

Model JCM-4 Indoor Current Transformers
Introducing the Model JCM-4 Indoor Current Transformers, a high-performance solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement in a compact and reliable package, this product is ideal for a wide range of electrical applications, including power distribution, industrial automation, and energy management systems. The JCM-4 model exemplifies our commitment to innovation and quality, ensuring that professionals can depend on accurate data for critical operational decisions.
Overview
Introducing the Model JCM-4 Indoor Current Transformers, a high-performance solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement in a compact and reliable package, this product is ideal for a wide range of electrical applications, including power distribution, industrial automation, and energy management systems. The JCM-4 model exemplifies our commitment to innovation and quality, ensuring that professionals can depend on accurate data for critical operational decisions.
Constructed with durability and ease of installation in mind, the JCM-4 Indoor Current Transformers feature a robust design that withstands demanding environments while providing consistent performance over time. Its compact form factor allows for seamless integration into existing systems without requiring extensive modifications, making it a versatile choice for both new installations and upgrades. The transformer’s precise current measurement capabilities help optimize system efficiency, enhance safety, and facilitate compliance with industry standards.
Spectrum Industries takes pride in offering products that meet the highest standards of quality and reliability, and the -produced JCM-4 is no exception. With its advanced design and dependable performance, this current transformer is an essential tool for engineers and technicians seeking accurate, reliable current measurement solutions. Whether for routine maintenance or complex system analysis, the Model JCM-4 Indoor Current Transformers by, distributed by Spectrum Industries, provide the confidence and precision necessary for modern electrical systems.
Request a Quote for Model JCM-4 Indoor Current Transformers
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 75 kV
- Weight
- 72 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated Voltage
- 8,700 V
- Primary Current Range
- 600 A to 4,000 A
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 84 / 72 lbs
- Revenue Metering Approval
- Measurement Canada AE-0740 / AE-0310 / AE-0383 / AE-0850 / AE-1000
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 2000 | 5 | 2000:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 3000 | 5 | 3000:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 4000 | 5 | 4000:5 | C200 | 0.3B0.9 | 1 | 0.75 |
| 1200 | 5 | 600/1200:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 1500 | 5 | 750/1500:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 2000 | 5 | 1000/2000:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 3000 | 5 | 1500/3000:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 4000 | 5 | 2000/4000:5 | C100 | 0.3B0.9 | 2 | 1 |
