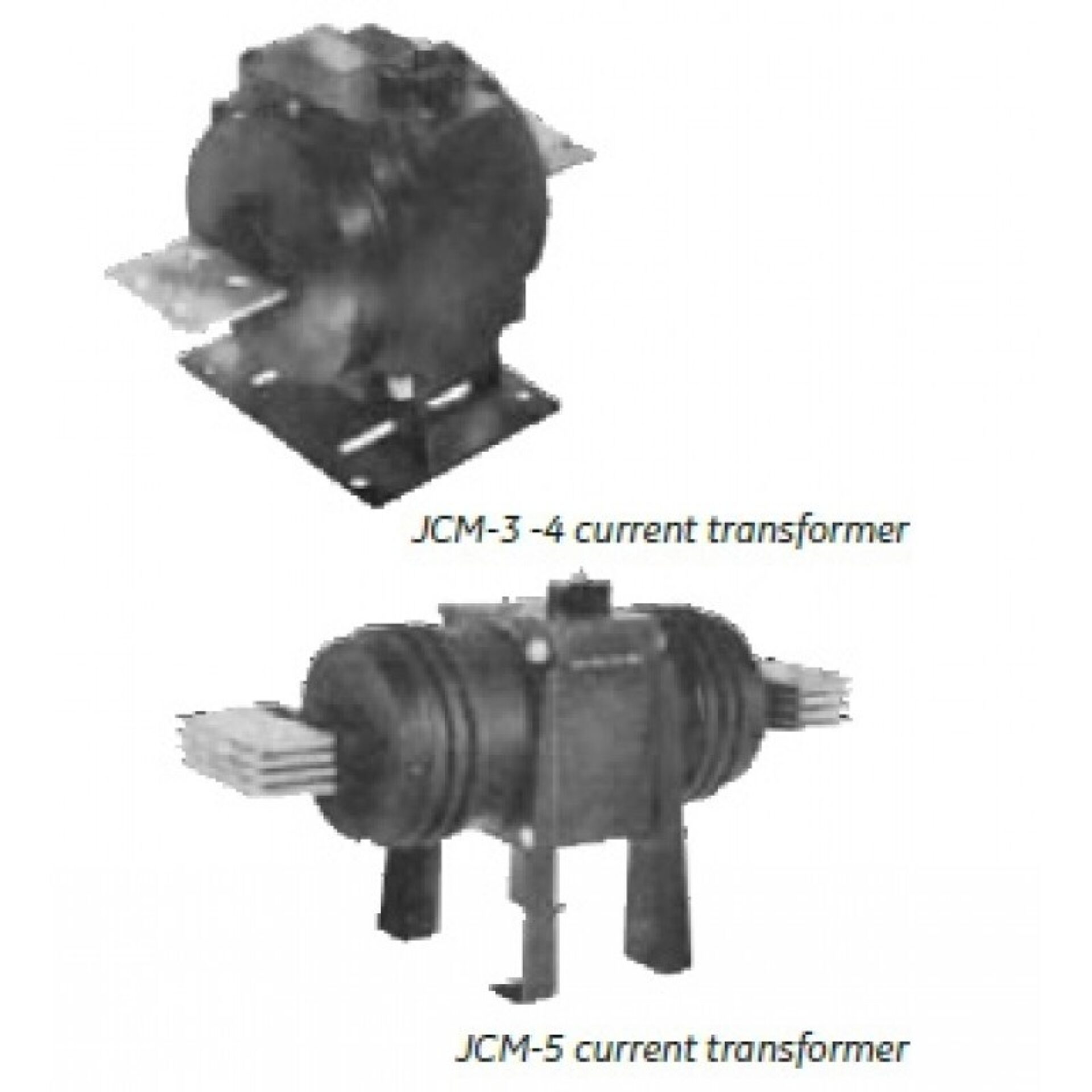

Model JCM-5 Indoor Current Transformers
Introducing the Model JCM-5 Indoor Current Transformers, a premium solution designed to meet the demanding needs of modern electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this product exemplifies precision engineering and reliable performance. The JCM-5 series is engineered to provide accurate current measurement in a compact, indoor-friendly design, making it ideal for various industrial, commercial, and utility settings.
Overview
Introducing the Model JCM-5 Indoor Current Transformers, a premium solution designed to meet the demanding needs of modern electrical measurement and monitoring applications. and brought to you by Spectrum Industries, this product exemplifies precision engineering and reliable performance. The JCM-5 series is engineered to provide accurate current measurement in a compact, indoor-friendly design, making it ideal for various industrial, commercial, and utility settings.
Built with durability and ease of use in mind, the Model JCM-5 features high-quality materials and advanced manufacturing techniques to ensure long-lasting performance. Its design allows for seamless integration into existing electrical systems, offering precise current readings essential for system analysis, load monitoring, and protective relay applications. The product's robust construction ensures stability and accuracy even in challenging environments, making it a dependable choice for professionals who require consistent, high-quality data.
a global leader in electrical equipment and solutions, the Model JCM-5 Indoor Current Transformers benefits from decades of innovation and expertise. Spectrum Industries is proud to distribute this reliable product, providing customers with a trusted tool to enhance their electrical infrastructure. Whether for new installations or system upgrades, the Model JCM-5 delivers the performance and dependability necessary to keep electrical systems running smoothly and efficiently.
Request a Quote for Model JCM-5 Indoor Current Transformers
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 110 kV
- Weight
- 109 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated Voltage
- 15,000 V
- Primary Current Range
- 600 A to 4,000 A
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 121 / 109 lbs
- Revenue Metering Approval
- Measurement Canada AE-0740 / AE-0310 / AE-0383 / AE-0850 / AE-1000
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 1500 | 5 | 1500:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 2000 | 5 | 2000:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 3000 | 5 | 3000:5 | C200 | 0.3B0.9 | 1.33 | 1 |
| 4000 | 5 | 4000:5 | C200 | 0.3B0.9 | 1 | 0.75 |
| 1200 | 5 | 600/1200:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 1500 | 5 | 750/1500:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 2000 | 5 | 1000/2000:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 3000 | 5 | 1500/3000:5 | C100 | 0.3B0.9 | 2 | 1.5 |
| 4000 | 5 | 2000/4000:5 | C100 | 0.3B0.9 | 2 | 1 |
