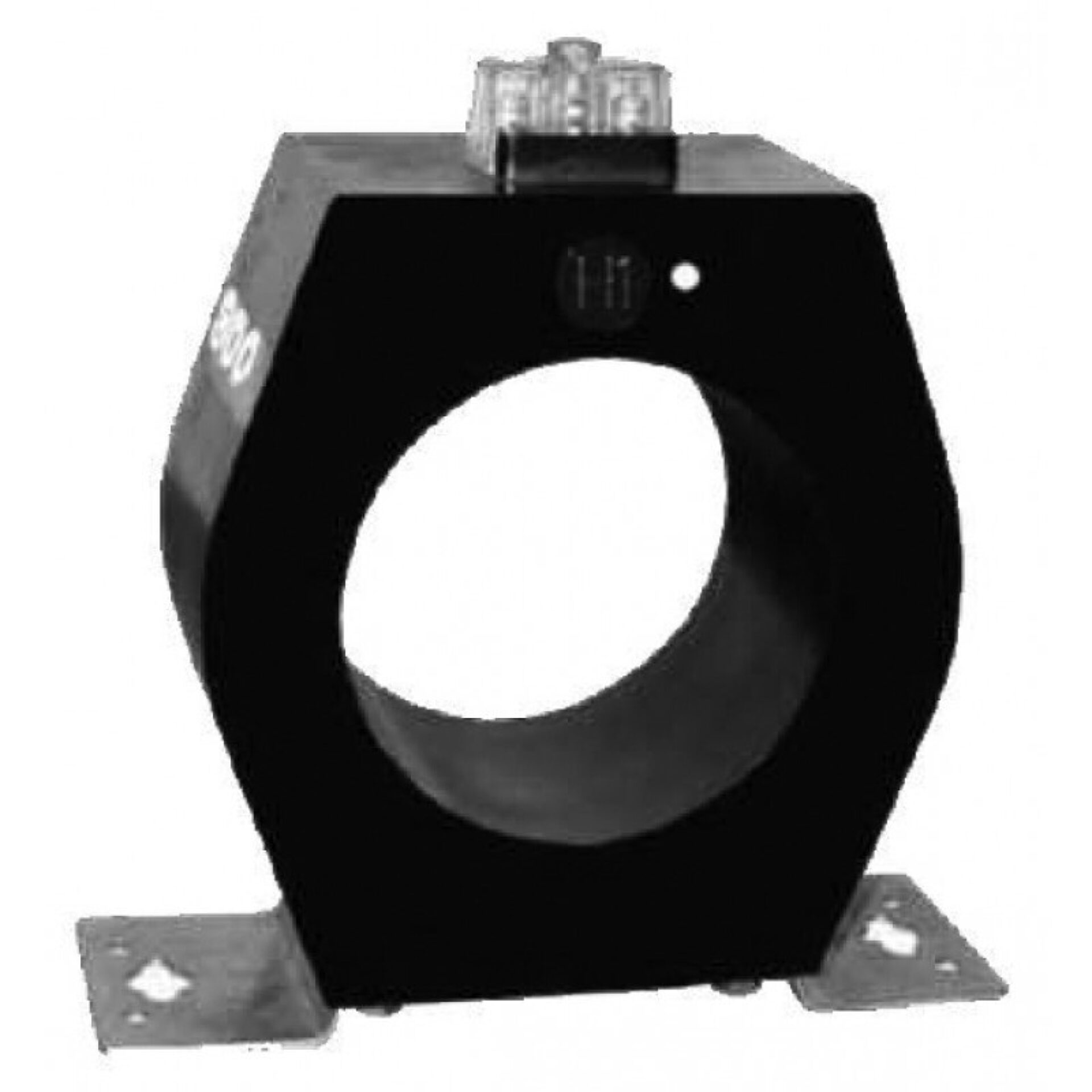

Model JCP-0C Indoor/Outdoor Current Transformer
Introducing the Model JCP-0C Indoor/Outdoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the rigorous demands of modern electrical systems, this current transformer offers reliable performance both indoors and outdoors, making it an ideal choice for a wide range of industrial and commercial applications.
Overview
Introducing the Model JCP-0C Indoor/Outdoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the rigorous demands of modern electrical systems, this current transformer offers reliable performance both indoors and outdoors, making it an ideal choice for a wide range of industrial and commercial applications.
a global leader in electrical and electronic manufacturing, the Model JCP-0C is built with precision and durability in mind. Its robust construction ensures accurate current measurement and safe operation even in challenging environments. Whether you are monitoring electrical loads in a factory setting or conducting outdoor power distribution, this current transformer provides consistent and dependable readings that help optimize system performance and ensure safety.
Spectrum Industries takes pride in offering innovative solutions that enhance electrical infrastructure. The Model JCP-0C features easy installation and compatibility with various measurement and control systems, making it a versatile addition to your electrical toolkit. Its design emphasizes accuracy, safety, and longevity, reflecting ’s commitment to quality and Spectrum Industries’ dedication to customer satisfaction.
In summary, the -produced Model JCP-0C Indoor/Outdoor Current Transformer by Spectrum Industries is a reliable, versatile, and durable solution for current measurement needs across diverse environments. It stands as a testament to the quality and innovation that both and Spectrum Industries bring to the electrical industry.
Request a Quote for Model JCP-0C Indoor/Outdoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 28 lbs
- Application
- Metering, Protection
- Standards
- UL
- Window Diameter
- 5.38 in
- Rated Voltage Class
- 0.6 kV
- UL File Number
- E93779
- Primary Current Range
- 100 to 4,000 A
- Max Line-to-Line Voltage
- 600 V
- Reference Outline Drawings
- Single Ratio 0121C34439; Dual Ratio 0121C33763
- Conduit Box Kit Part Number
- 9689693011
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|---|
| 600 | 5 | 600:5 | C100 | 0.3B1.8 | 2 |
| 800 | 5 | 800:5 | C100 | 0.3B1.8 | 2 |
| 1200 | 5 | 1200:5 | C200 | 0.3B1.8 | 2 |
| 1500 | 5 | 1500:5 | C200 | 0.3B1.8 | 2 |
| 2000 | 5 | 2000:5 | C200 | 0.3B1.8 | 1.5 |
| 3000 | 5 | 3000:5 | C200 | 0.3B1.8 | 1.33 |
| 4000 | 5 | 4000:5 | C200 | 0.3B1.8 | 1.33 |
Specification Table
| ratio | ansiAccuracyClassValues | relayClasses | trf30CAmb |
|---|---|---|---|
| 1000/2000:5 | ["0.3","0.3","0.6","0.3","0.6","0.3"] | ["C100","C200"] | ["2.0","1.5"] |
| 1500/3000:5 | ["0.3","0.3","0.3","0.3","0.6","0.3"] | ["C100","C200"] | ["2.0","1.33"] |
| 2000/4000:5 | ["0.3","0.3","0.3","0.3","0.6","0.3"] | ["C100","C200"] | ["1.5","1.33"] |
