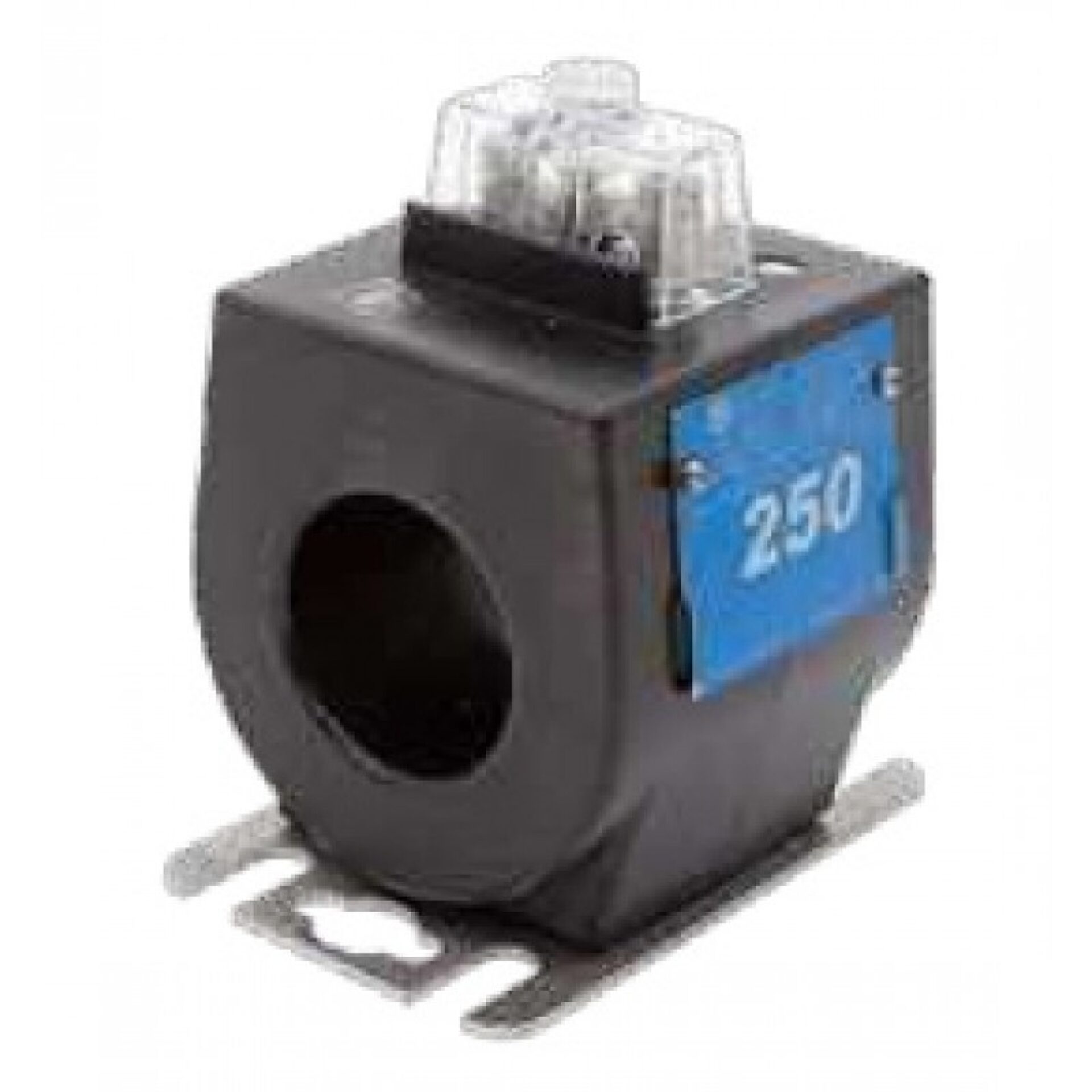

Model JCR-0W Encompass
Introducing the Model JCR-0W metering, a state-of-the-art product, brought to you by Spectrum Industries. Designed with precision and innovation in mind, the metering is a versatile solution tailored to meet the demanding needs of modern industries. Whether you're seeking reliable performance in complex environments or seeking to enhance operational efficiency, this product delivers exceptional results.
Overview
Introducing the Model JCR-0W metering, a state-of-the-art product, brought to you by Spectrum Industries. Designed with precision and innovation in mind, the metering is a versatile solution tailored to meet the demanding needs of modern industries. Whether you're seeking reliable performance in complex environments or seeking to enhance operational efficiency, this product delivers exceptional results.
a global leader in technology and engineering, the metering exemplifies the company's commitment to quality and cutting-edge design. Spectrum Industries has carefully curated this product to ensure seamless integration into various applications, offering users a robust and dependable tool that stands the test of time. Its advanced features and durable construction make it an ideal choice for professionals seeking a reliable and efficient solution.
The Model JCR-0W metering is engineered to provide optimal performance, ease of use, and long-term reliability. Its innovative design incorporates features that facilitate quick setup and straightforward operation, reducing downtime and increasing productivity. Whether used in research, industrial, or commercial settings, this product ensures consistent and accurate results, making it an invaluable addition to any technical arsenal.
In summary, the metering by, distributed through Spectrum Industries, represents a perfect blend of technological excellence and practical functionality. It is a testament to the company's dedication to delivering high-quality products that empower users to achieve their goals efficiently and confidently.
Request a Quote for Model JCR-0W Encompass
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 4 lbs
- Mounting
- Indoor
- Application
- Metering
- Voltage Class
- 0.6 kV
- Window Size
- 2.0 in
- Current Range
- 10 to 1,000 A
- IEEE Metering Accuracy Class
- 0.3B0.21 at 60 Hz
- Accuracy Class Detail
- 0.6% class from 4% to 40% of rated current; 0.3% class from 40% through Rating Factor
- Rating Factor
- 4.0 at 30C; 3.0 at 55C
- Primary Window / Bar
- 11.875 in x 2 in x 0.5 in removable solid copper, tin-plated primary bar, optional
- Secondary Terminals
- Tin plated brass, compression type, 0.275 in diameter cross-hole, 1/4-28 clamp screw, shorting device interlocked to terminal cover
- Core Material
- High quality grain oriented silicon steel, annealed under controlled factory conditions
- Case Material
- Molded thermoplastic polyester resin case
- Mounting / Baseplate
- Mounts in any position; may be suspended from bus-bar or cable; provision for two optional bases
- Base Options
- No base / Low base (stainless steel) / High base (+2 in height)
- Accessory Weights
- Primary bar add 2 lbs; Low base add 0.3 lbs; High base add 1 lbs
- Reference Drawings
- Outline 0121C45193; Primary Bar Assembly 0821C45191
- Circuit Suitability
- Single-phase two-wire circuits and polyphase circuits
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 250 | 5 | 250:5 | 4 | 3 |
| 250 | 5 | 250:5 | 4 | 3 |
| 250 | 5 | 250:5 | 4 | 3 |
| 250 | 5 | 250:5 | 4 | 3 |
| 250 | 5 | 250:5 | 4 | 3 |
| 250 | 5 | 250:5 | 4 | 3 |
