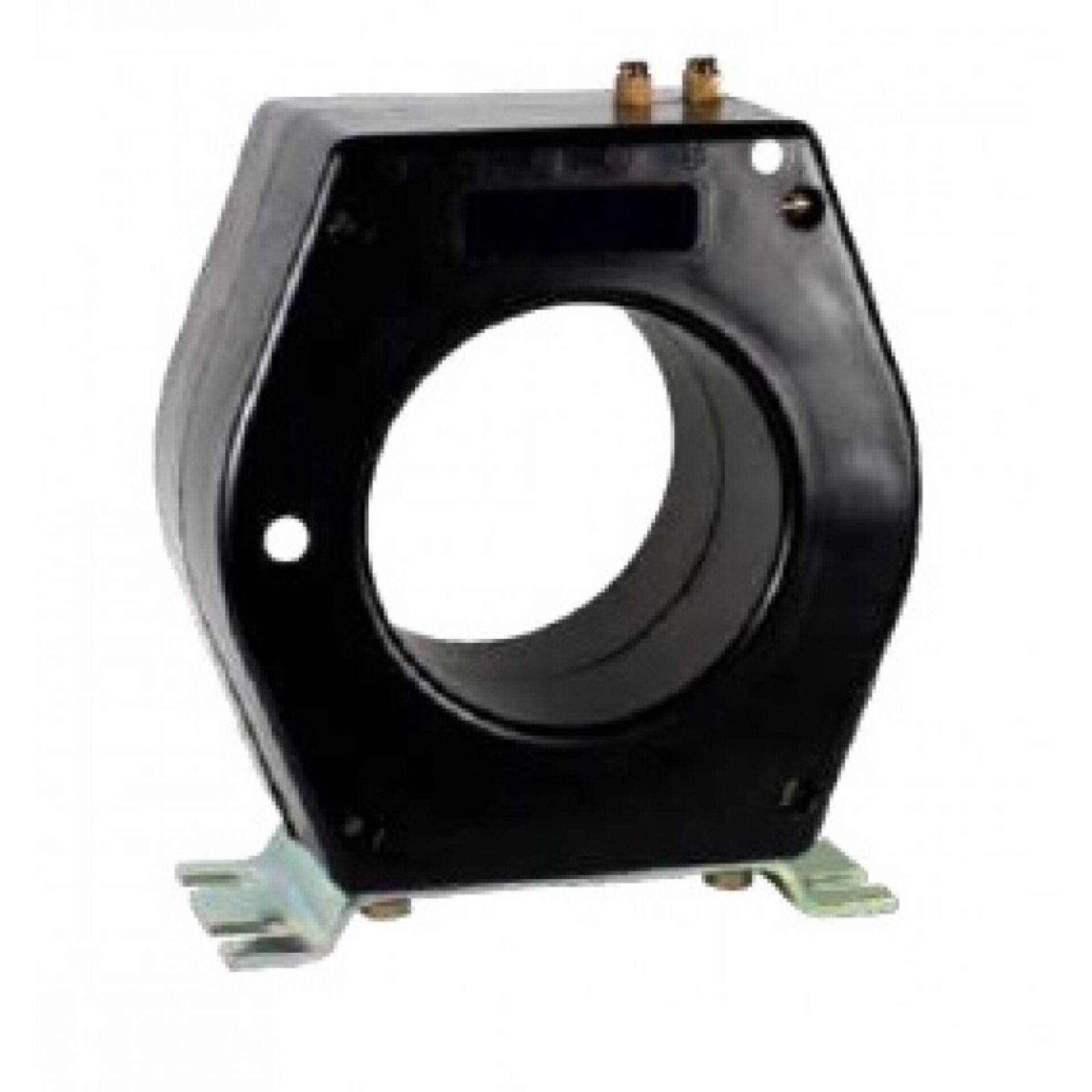

Model JCS-0C Indoor/Outdoor Current Transformer
Introducing the Model JCS-0C Indoor/Outdoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical measurement and monitoring, this current transformer offers exceptional accuracy and reliability, making it an essential component for a wide range of industrial and commercial applications.
Overview
Introducing the Model JCS-0C Indoor/Outdoor Current Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to meet the demanding needs of electrical measurement and monitoring, this current transformer offers exceptional accuracy and reliability, making it an essential component for a wide range of industrial and commercial applications.
a globally recognized leader in electrical and electronic manufacturing, the Model JCS-0C is built with precision and durability in mind. Its robust construction ensures stable performance both indoors and outdoors, providing versatile functionality in various environments. Whether used for power distribution, energy management, or system protection, this current transformer delivers consistent and precise readings, helping operators maintain optimal system performance and safety.
Spectrum Industries is proud to distribute this advanced current transformer, emphasizing quality and innovation in every product. The Model JCS-0C features easy installation and compatibility with existing systems, making it a practical choice for engineers and technicians seeking dependable measurement solutions. With ’s reputation for excellence and Spectrum Industries’ commitment to customer satisfaction, this current transformer stands out as a reliable, efficient, and long-lasting instrument for your electrical measurement needs.
Request a Quote for Model JCS-0C Indoor/Outdoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Application
- Metering, Protection
- Standards
- UL
- Window Diameter
- 2.50", 4.88", 5.25" (varies by catalog number)
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- UL File Number
- E93779
- Weight by Catalog Number
- Cat No. 750X110038: 47 lbs; Cat No. 750X110039-045: 34 lbs; Cat No. 750X110046-072: 28 lbs; optional base plate: 1.5 lbs
- Terminals
- Secondary terminals are No. 10-32 brass screws with one flat washer and one lock washer; no secondary shorting device or terminal cover provided (used in enclosed switchgear compartments).
- Case Material
- Case molded with Valox thermoplastic polyester resin
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 50 | 5 | 50:5 | C20 | 2 | 2 |
| 50 | 5 | 50:5 | C20 | 2 | 2 |
| 100 | 5 | 100:5 | C10 | 2 | 2 |
| 100 | 5 | 100:5 | C10 | 2 | 2 |
| 200 | 5 | 200:5 | C20 | 2 | 2 |
| 200 | 5 | 200:5 | C20 | 2 | 2 |
| 300 | 5 | 300:5 | C50 | 2 | 2 |
| 300 | 5 | 300:5 | C50 | 2 | 2 |
| 400 | 5 | 400:5 | C50 | 2 | 2 |
| 400 | 5 | 400:5 | C50 | 2 | 2 |
| 600 | 5 | 600:5 | C100 | 2 | 2 |
| 600 | 5 | 600:5 | C100 | 2 | 2 |
| 800 | 5 | 800:5 | C100 | 2 | 2 |
| 800 | 5 | 800:5 | C100 | 2 | 2 |
| 1000 | 5 | 1000:5 | C100 | 2 | 2 |
| 1000 | 5 | 1000:5 | C100 | 2 | 2 |
| 1200 | 5 | 1200:5 | C200 | 2 | 1.5 |
| 1200 | 5 | 1200:5 | C200 | 2 | 1.5 |
| 1500 | 5 | 1500:5 | C200 | 1.5 | 1 |
| 1500 | 5 | 1500:5 | C200 | 1.5 | 1 |
| 1600 | 5 | 1600:5 | C200 | 1.33 | 1 |
| 1600 | 5 | 1600:5 | C200 | 1.33 | 1 |
| 2000 | 5 | 2000:5 | C200 | 1 | 0.8 |
| 2000 | 5 | 2000:5 | C200 | 1 | 0.8 |
| 2500 | 5 | 2500:5 | C200 | 1 | 0.8 |
| 2500 | 5 | 2500:5 | C200 | 1 | 0.8 |
| 3000 | 5 | 3000:5 | C200 | 1 | 0.8 |
| 3000 | 5 | 3000:5 | C200 | 1 | 0.8 |
| 4000 | 5 | 4000:5 | C100 | 1 | 0.8 |
| 4000 | 5 | 4000:5 | C100 | 1 | 0.8 |
| 1200 | 5 | 1200:5MR | C200 | 2 | 1.5 |
| 2000 | 5 | 2000:5MR | C200 | 1 | 0.8 |
| 2000 | 5 | *2000:5 | C200 | 1 | 0.8 |
| 3000 | 5 | 3000:5MR | C200 | 1 | 0.8 |
| 4000 | 5 | 4000:5MR | C100 | 1 | 0.8 |
