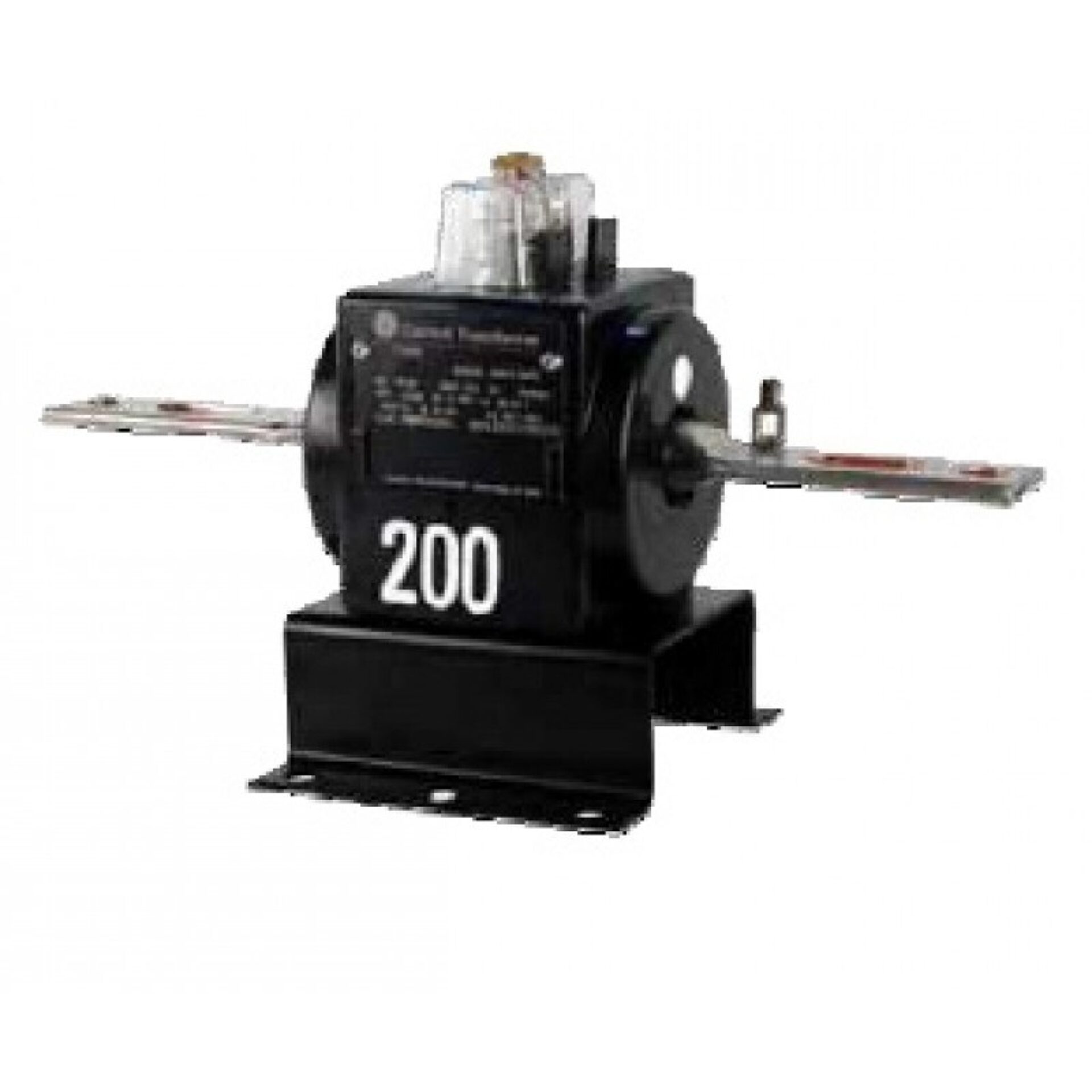

Model JCT-0C Indoor Current Transformer
Introducing the Model JCT-0C Indoor Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement within indoor electrical systems, this transformer is an essential component for ensuring the safety, efficiency, and reliability of your electrical infrastructure. Whether you're conducting routine maintenance, system monitoring, or troubleshooting, the Model JCT-0C provides accurate readings that help you make informed decisions and maintain optimal performance.
Overview
Introducing the Model JCT-0C Indoor Current Transformer, a high-quality solution, brought to you by Spectrum Industries. Designed to deliver precise current measurement within indoor electrical systems, this transformer is an essential component for ensuring the safety, efficiency, and reliability of your electrical infrastructure. Whether you're conducting routine maintenance, system monitoring, or troubleshooting, the Model JCT-0C provides accurate readings that help you make informed decisions and maintain optimal performance.
a globally recognized leader in electrical and electronic manufacturing, this current transformer combines advanced engineering with durable construction to withstand the demands of indoor environments. Its compact design allows for easy installation in a variety of settings, making it a versatile choice for professionals in electrical, industrial, and commercial sectors. The Model JCT-0C is built to deliver consistent, reliable performance over time, ensuring your systems operate smoothly and safely.
Spectrum Industries is proud to distribute this product, emphasizing quality and precision in every unit. Whether used in new installations or as part of an upgrade, the Model JCT-0C Indoor Current Transformer offers a dependable solution for accurate current measurement, helping you maintain the integrity of your electrical systems with confidence.
Request a Quote for Model JCT-0C Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 7 lbs
- Mounting
- Indoor
- Application
- Metering
- Insulation Level
- 0.6 kV; BIL 10 kV full wave
- Case Material
- Valox thermoplastic polyester resin
- Core and Coil
- High quality grain oriented silicon steel core, annealed; secondary winding of heavy enameled copper wire, evenly distributed around the core
- Secondary Terminals
- Tin plated brass, compression type, 0.275" diameter cross-hole for wiring, 1/4-28 clamp screw; shorting device interlocked to a clear plastic terminal cover, provision for sealing
- Primary Bars
- Formed from tin-plated copper tube, nonremovable, potential connector attachable above or below the bar at either end; conforms to ANSI C12.11
- Nameplate
- Laser engraved aluminum, attached to side of unit, provision for user identifying tag; nominal current rating marked in large numerals on both sides
- Mounting Orientation
- Can be mounted in any position; may be suspended from bus-bar or cable
- Low Base Weight Adder
- +0.25 lbs
- High (EEI) Base Weight Adder
- +1.0 lbs
- Reference Drawing (200:5, 400:5)
- 0121C33682
- Reference Drawing (600:5, 800:5)
- 0121C44158
- Primary Bar Dimensions, Ratio 200:5
- A = 1.50 in, B = 0.20 in
- Primary Bar Dimensions, Ratio 400:5
- A = 2.00 in, B = 0.25 in
- Primary Bar Dimensions, Ratio 600:5
- A = 2.25 in, B = 0.28 in
- Primary Bar Dimensions, Ratio 800:5
- A = 2.25 in, B = 0.28 in
Specification Table
| Primary V | Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|---|
| 600 | 200 | 5 | 200:5 | 0.3B0.2 | 2 | 1.5 |
| 600 | 200 | 5 | 200:5 | 0.3B0.2 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.2 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.2 | 2 | 1.5 |
| 600 | 600 | 5 | 600:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 600 | 5 | 600:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 800 | 5 | 800:5 | 0.3B0.5 | 1.5 | 1 |
| 600 | 800 | 5 | 800:5 | 0.3B0.5 | 1.5 | 1 |
| 600 | 200 | 5 | 200:5 | 0.3B0.2 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.2 | 2 | 1.5 |
| 600 | 600 | 5 | 600:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 800 | 5 | 800:5 | 0.3B0.5 | 1.5 | 1 |
| 600 | 200 | 5 | 200:5 | 0.3B0.2 | 2 | 1.5 |
| 600 | 400 | 5 | 400:5 | 0.3B0.2 | 2 | 1.5 |
| 600 | 600 | 5 | 600:5 | 0.3B0.5 | 2 | 1.5 |
| 600 | 800 | 5 | 800:5 | 0.3B0.5 | 1.5 | 1 |
