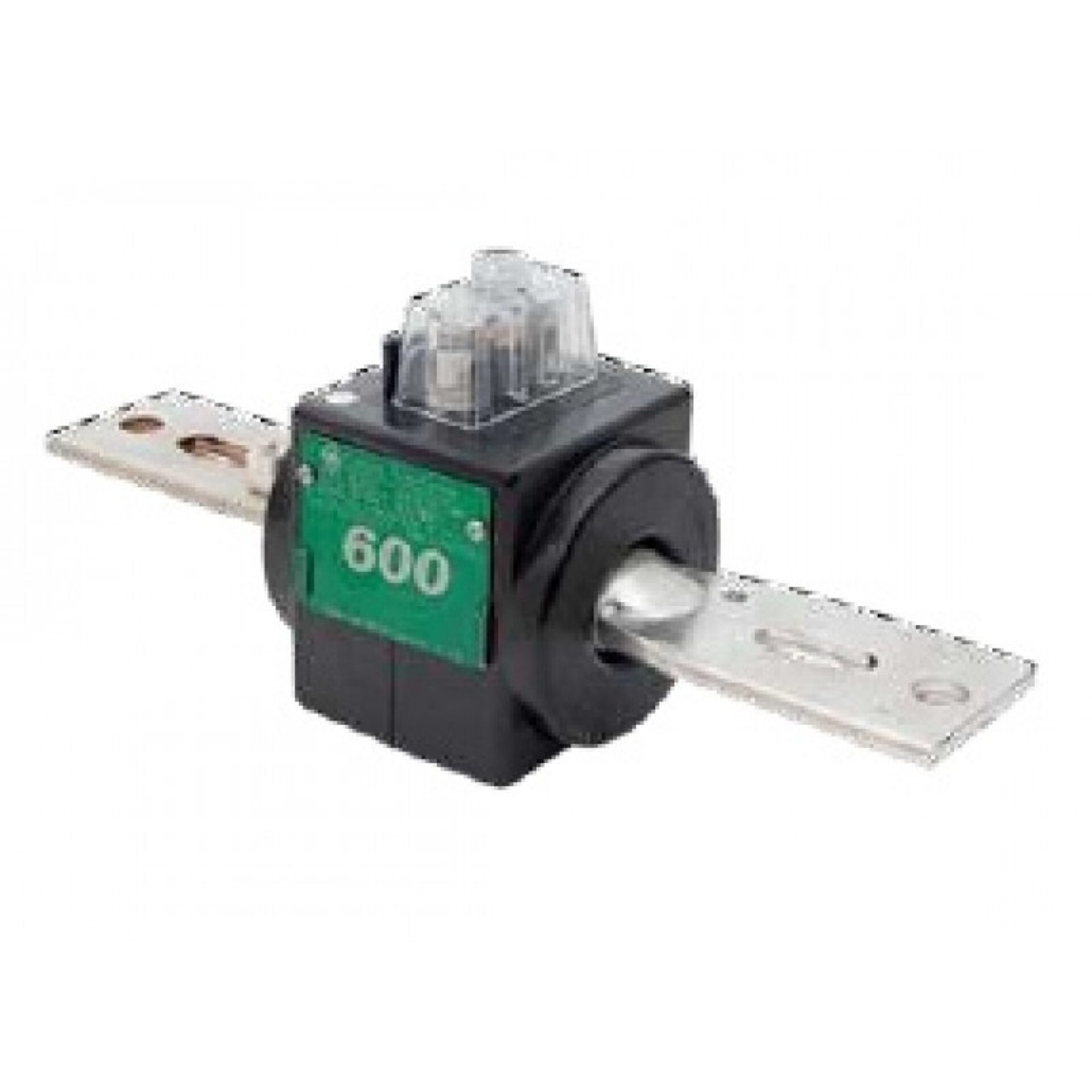

Model JCT-0S RevenueSense
Introducing the Model JCT-0S high-accuracy revenue metering a cutting-edge solution, brought to you by Spectrum Industries. Designed to meet the rigorous demands of modern revenue management, this innovative device offers precise and reliable performance to help businesses optimize their financial operations. Whether you're managing retail transactions, parking facilities, or other revenue-generating activities, the high-accuracy revenue metering provides the accuracy and efficiency needed to streamline your processes.
Overview
Introducing the Model JCT-0S high-accuracy revenue metering a cutting-edge solution, brought to you by Spectrum Industries. Designed to meet the rigorous demands of modern revenue management, this innovative device offers precise and reliable performance to help businesses optimize their financial operations. Whether you're managing retail transactions, parking facilities, or other revenue-generating activities, the high-accuracy revenue metering provides the accuracy and efficiency needed to streamline your processes.
Built with advanced technology and engineered for durability, the Model JCT-0S high-accuracy revenue metering ensures consistent operation in various environments. Its user-friendly interface allows for easy setup and operation, reducing training time and minimizing errors. The product's robust construction and innovative features make it a dependable choice for organizations seeking to enhance their revenue collection systems.
a leader in technological innovation and quality, the high-accuracy revenue metering exemplifies the company's commitment to delivering high-performance solutions. Spectrum Industries is proud to distribute this state-of-the-art product, ensuring that customers receive a reliable and effective tool to support their revenue management needs. With the Model JCT-0S high-accuracy revenue metering businesses can achieve greater accuracy, efficiency, and confidence in their revenue operations, ultimately driving better financial outcomes.
Request a Quote for Model JCT-0S RevenueSense
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 7 lbs
- Mounting
- Indoor
- Application
- Metering
- Burden / Accuracy Class Code
- 0.155B0.2
- Window Size
- 1.31 in
- Insulation / Case Material
- Case molded with Valox thermoplastic polyester resin
- Secondary Terminals
- Tin-plated brass, compression type, 0.275 in diameter cross-hole, 1/4-28 clamp screw, with interlocked shorting device
- Primary Bar
- Solid copper bar, tin-plated, non-removable, potential connector attachable above or below bar at either end
- Base Weight Adders
- Low base +0.3 lbs; High base +1 lb (increases unit height by 2 in)
- Overall Accuracy — Accuracy
- 0.15
- Overall Accuracy — Condition
- 60 Hz; 0.15% accuracy maintained from 1% of rated current through rating factor, exceeding the IEEE 0.15S special-high-accuracy requirement (per sheet footnote 1)
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 600 | 5 | 600:5 | 2 | 1.5 |
| 600 | 5 | 600:5 | 2 | 1.5 |
| 600 | 5 | 600:5 | 2 | 1.5 |
