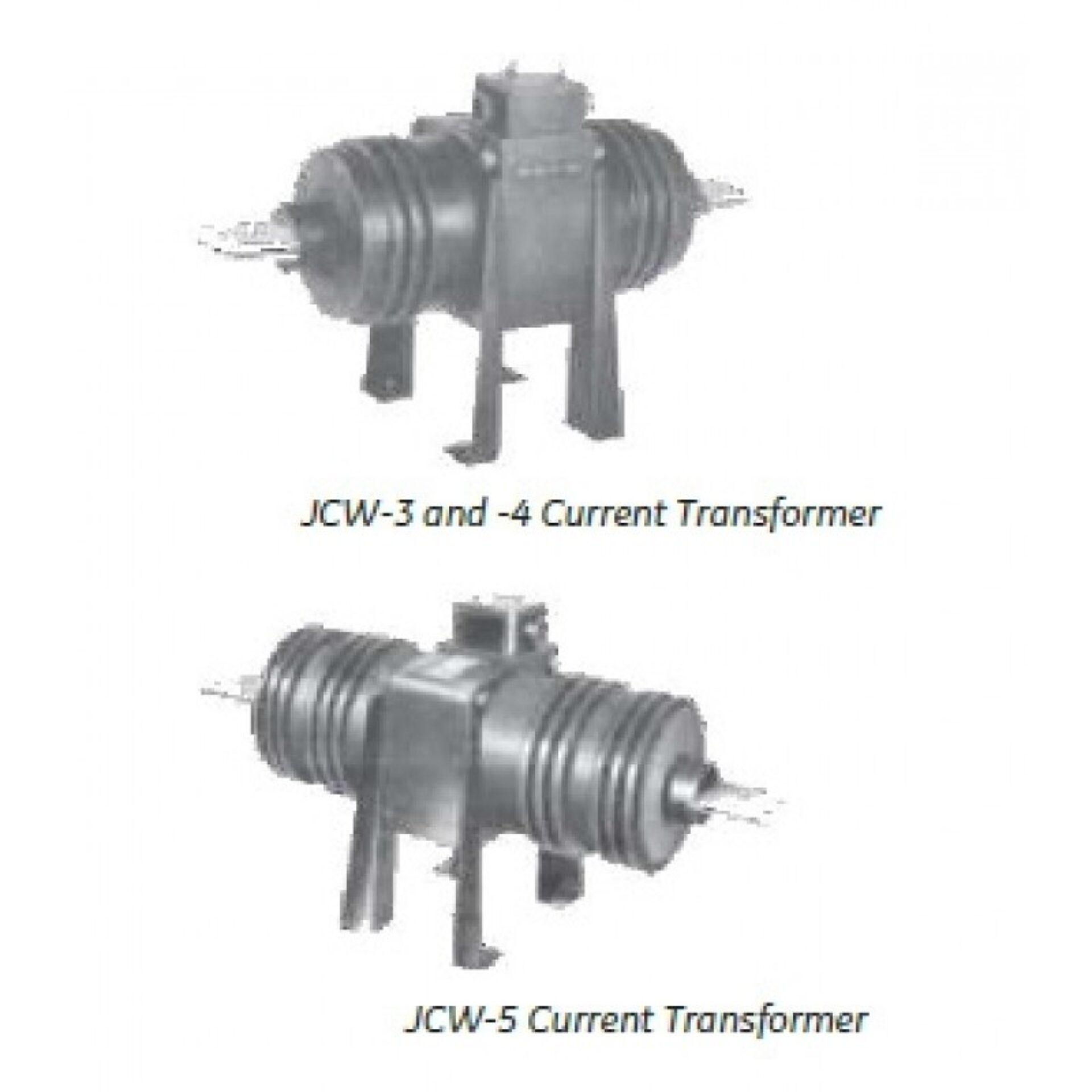

Model JCW-3 Outdoor Current Transformer - 5kV Class
Introducing the Model JCW-3 Outdoor Current Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems. and produced by Spectrum Industries, this current transformer offers exceptional performance and reliability for outdoor applications. Engineered to handle high voltage environments, the JCW-3 is rated at 5kV class, ensuring safe and accurate measurement of electrical currents in various industrial and utility settings.
Overview
Introducing the Model JCW-3 Outdoor Current Transformer, a high-quality solution designed to meet the demanding needs of modern electrical systems. and produced by Spectrum Industries, this current transformer offers exceptional performance and reliability for outdoor applications. Engineered to handle high voltage environments, the JCW-3 is rated at 5kV class, ensuring safe and accurate measurement of electrical currents in various industrial and utility settings.
The JCW-3 is built with durability in mind, featuring robust construction that withstands harsh weather conditions, temperature fluctuations, and other environmental challenges. Its outdoor design makes it an ideal choice for utility poles, substations, and other outdoor electrical infrastructure where precise current measurement is essential for system monitoring and protection.
Spectrum Industries, renowned for its commitment to quality and innovation, ensures that each current transformer meets stringent standards for safety, accuracy, and longevity. The Model JCW-3 is easy to install and maintain, providing a dependable solution for utilities and electrical engineers seeking reliable current measurement in outdoor environments. With ’s legacy of technological excellence and Spectrum Industries’ dedication to quality manufacturing, this product is a trusted choice for ensuring the efficiency and safety of electrical systems.
Request a Quote for Model JCW-3 Outdoor Current Transformer - 5kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 111 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Rated Voltage
- 5,000 V
- ANSI Meter Accuracy Class
- 0.3 at B-0.1 through B-1
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 123 / 111 lbs
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 0.3B0.9 | 1.33 |
| 1500 | 5 | 1500:5 | C200 | 0.3B0.9 | 1.33 |
| 2000 | 5 | 2000:5 | C200 | 0.3B0.9 | 1.33 |
| 3000 | 5 | 3000:5 | C200 | 0.3B0.9 | 1.33 |
| 4000 | 5 | 4000:5 | C200 | 0.3B0.9 | 1 |
| 1200 | 5 | 600/1200:5 | C100 | 0.3B0.9 | 2 |
| 1500 | 5 | 750/1500:5 | C100 | 0.3B0.9 | 2 |
| 2000 | 5 | 1000/2000:5 | C100 | 0.3B0.9 | 2 |
| 3000 | 5 | 1500/3000:5 | C100 | 0.3B0.9 | 2 |
| 4000 | 5 | 2000/4000:5 | C100 | 0.3B0.9 | 2 |
