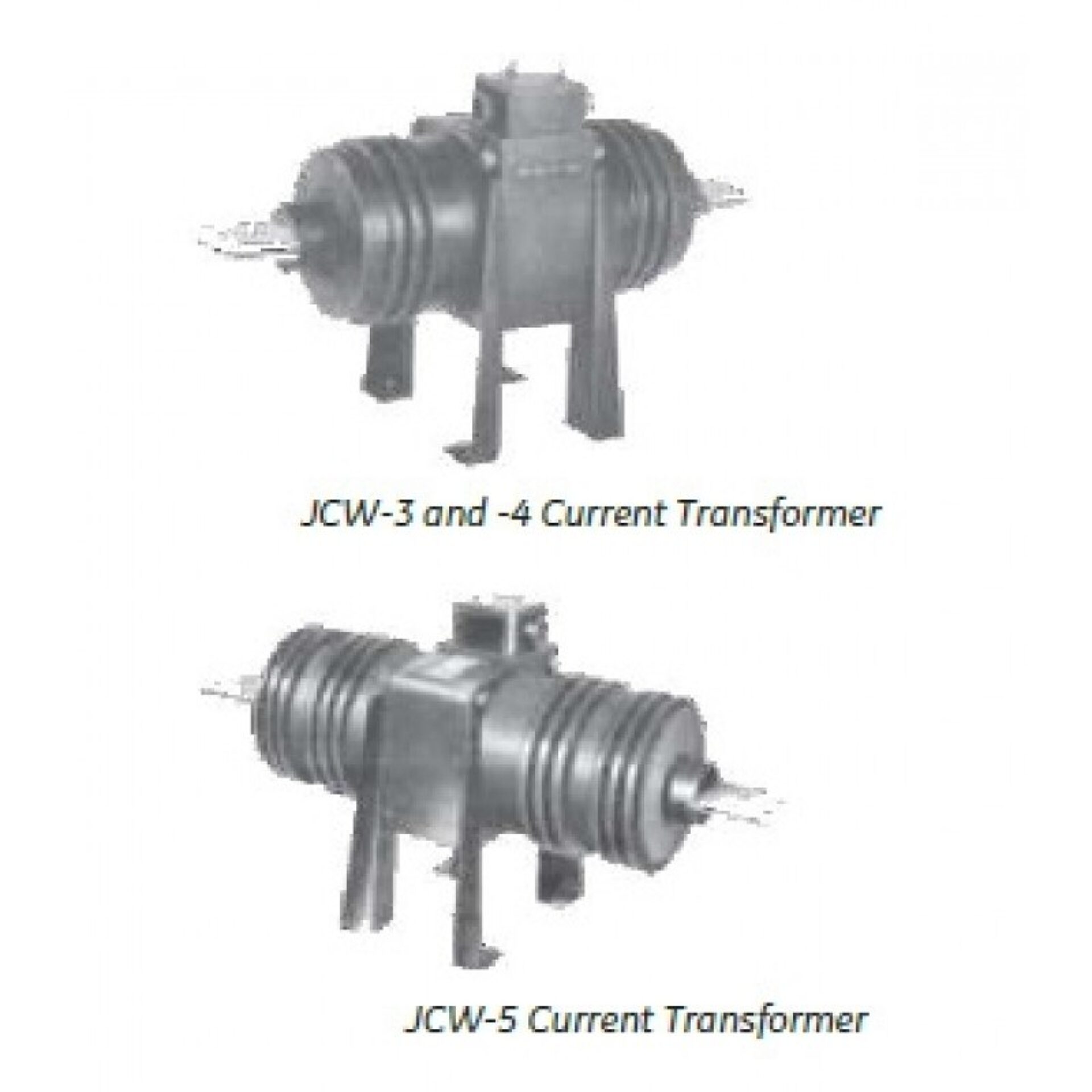

Model JCW-4 Outdoor Current Transformer - 8.7kV Class
Introducing the Model JCW-4 Outdoor Current Transformer, a reliable and high-performance solution, manufactured by Spectrum Industries. Designed to meet the demanding needs of electrical distribution systems, this current transformer offers precise measurement and enhanced safety features for outdoor applications. Its robust construction ensures durability and longevity even in harsh environmental conditions, making it an ideal choice for utility companies, industrial facilities, and infrastructure projects.
Overview
Introducing the Model JCW-4 Outdoor Current Transformer, a reliable and high-performance solution, manufactured by Spectrum Industries. Designed to meet the demanding needs of electrical distribution systems, this current transformer offers precise measurement and enhanced safety features for outdoor applications. Its robust construction ensures durability and longevity even in harsh environmental conditions, making it an ideal choice for utility companies, industrial facilities, and infrastructure projects.
The Model JCW-4 is rated at 87 kV Class, providing accurate current measurement for high-voltage systems while maintaining excellent insulation and safety standards. Its outdoor design incorporates weather-resistant materials and protective features that safeguard the device against moisture, dust, and temperature fluctuations. This ensures consistent performance and reduces maintenance requirements, ultimately contributing to the efficiency and reliability of your electrical network.
a leader in electrical and power systems technology, this current transformer benefits from advanced engineering and rigorous quality control. Spectrum Industries, known for their expertise in manufacturing electrical components, ensures that each unit adheres to the highest standards of performance and safety. Whether for new installations or upgrades to existing infrastructure, the Model JCW-4 Outdoor Current Transformer provides a dependable and precise solution for your high-voltage measurement needs.
Request a Quote for Model JCW-4 Outdoor Current Transformer - 8.7kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 75 kV
- Weight
- 111 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Rated Voltage
- 8,700 V
- ANSI Meter Accuracy Class
- 0.3 at B-0.1 through B-1
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 123 / 111 lbs
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 0.3B0.9 | 1.33 |
| 1500 | 5 | 1500:5 | C200 | 0.3B0.9 | 1.33 |
| 2000 | 5 | 2000:5 | C200 | 0.3B0.9 | 1.33 |
| 3000 | 5 | 3000:5 | C200 | 0.3B0.9 | 1.33 |
| 4000 | 5 | 4000:5 | C200 | 0.3B0.9 | 1 |
| 1200 | 5 | 600/1200:5 | C100 | 0.3B0.9 | 2 |
| 1500 | 5 | 750/1500:5 | C100 | 0.3B0.9 | 2 |
| 2000 | 5 | 1000/2000:5 | C100 | 0.3B0.9 | 2 |
| 3000 | 5 | 1500/3000:5 | C100 | 0.3B0.9 | 2 |
| 4000 | 5 | 2000/4000:5 | C100 | 0.3B0.9 | 2 |
