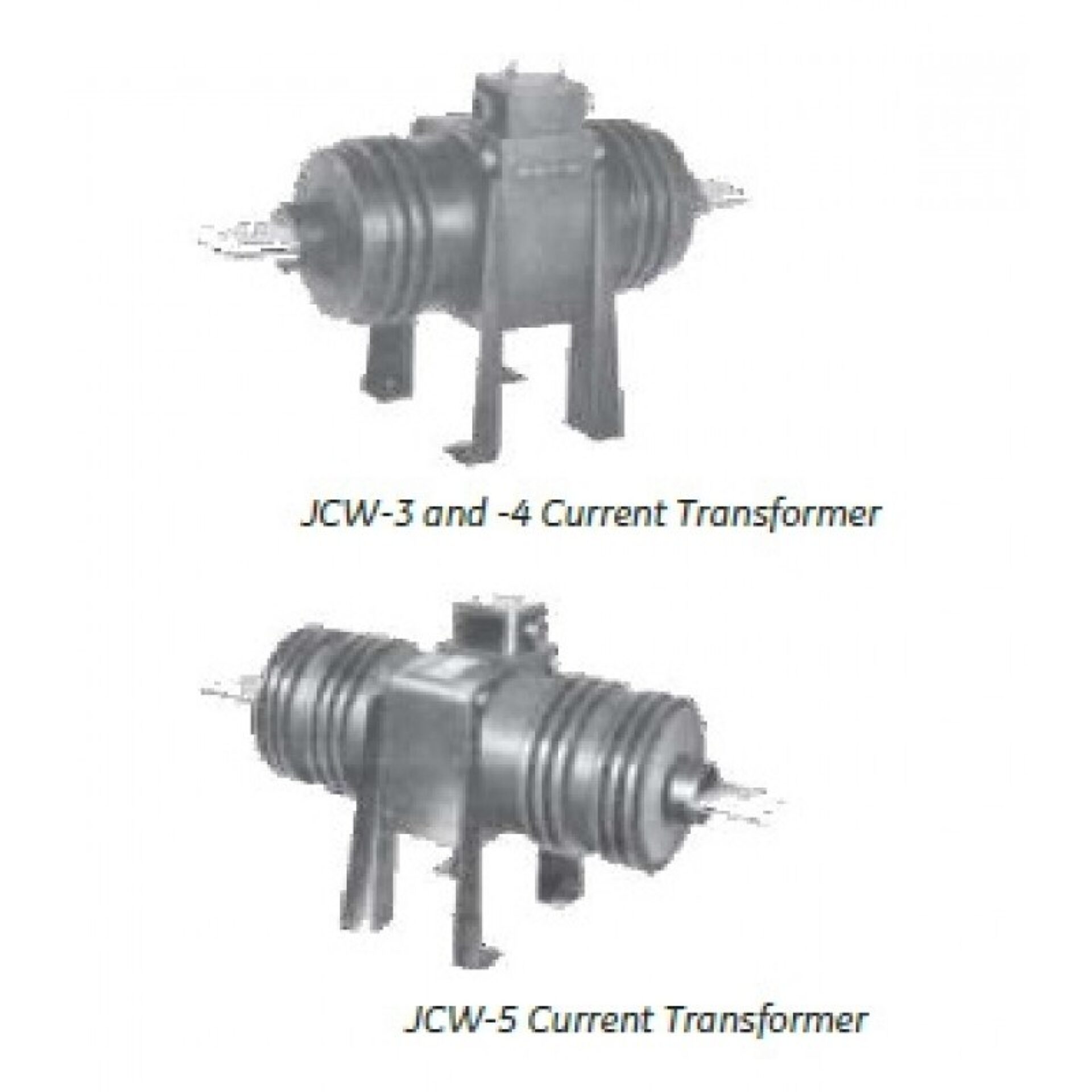

Model JCW-5 Outdoor Current Transformer - 15kV Class
Introducing the Model JCW-5 Outdoor Current Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed to meet the rigorous demands of modern power systems, this current transformer is an essential device for accurate measurement and protection in high-voltage applications. With a 15kV class rating, the JCW-5 is engineered to deliver reliable performance in outdoor environments, ensuring safety and precision across a variety of electrical infrastructure projects.
Overview
Introducing the Model JCW-5 Outdoor Current Transformer, a high-quality electrical component and brought to you by Spectrum Industries. Designed to meet the rigorous demands of modern power systems, this current transformer is an essential device for accurate measurement and protection in high-voltage applications. With a 15kV class rating, the JCW-5 is engineered to deliver reliable performance in outdoor environments, ensuring safety and precision across a variety of electrical infrastructure projects.
a globally recognized leader in electrical equipment and technology, the JCW-5 embodies the company's commitment to innovation, durability, and safety. Spectrum Industries has carefully selected and distributed this product to guarantee the highest standards of quality and compatibility with existing electrical systems. Its robust construction and weather-resistant features make it suitable for outdoor installation, providing consistent performance even in challenging conditions.
This current transformer is designed for easy installation and maintenance, offering accurate current measurement essential for system monitoring, fault detection, and protection schemes. Whether you are upgrading an existing power network or deploying a new infrastructure, the Model JCW-5 Outdoor Current Transformer, supplied by Spectrum Industries, is a dependable choice that combines advanced technology with proven reliability.
Request a Quote for Model JCW-5 Outdoor Current Transformer - 15kV Class
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 110 kV
- Weight
- 111 lbs
- Mounting
- Outdoor
- Application
- Metering, Protection
- Rated Voltage
- 15,000 V
- ANSI Meter Accuracy Class
- 0.3 at B-0.1 through B-1
- Accuracy Class
- 0.15 accuracy class available
- Shipping / Net Weight
- 123 / 111 lbs
Specification Table
| Primary A | Secondary A | Ratio (display) | Relay Class | ANSI Metering Class | Thermal Rating Factor @ 30°C |
|---|---|---|---|---|---|
| 1200 | 5 | 1200:5 | C200 | 0.3B0.9 | 1.33 |
| 1500 | 5 | 1500:5 | C200 | 0.3B0.9 | 1.33 |
| 2000 | 5 | 2000:5 | C200 | 0.3B0.9 | 1.33 |
| 3000 | 5 | 3000:5 | C200 | 0.3B0.9 | 1.33 |
| 4000 | 5 | 4000:5 | C200 | 0.3B0.9 | 1 |
| 1200 | 5 | 600/1200:5 | C100 | 0.3B0.9 | 2 |
| 1500 | 5 | 750/1500:5 | C100 | 0.3B0.9 | 2 |
| 2000 | 5 | 1000/2000:5 | C100 | 0.3B0.9 | 2 |
| 3000 | 5 | 1500/3000:5 | C100 | 0.3B0.9 | 2 |
| 4000 | 5 | 2000/4000:5 | C100 | 0.3B0.9 | 2 |
