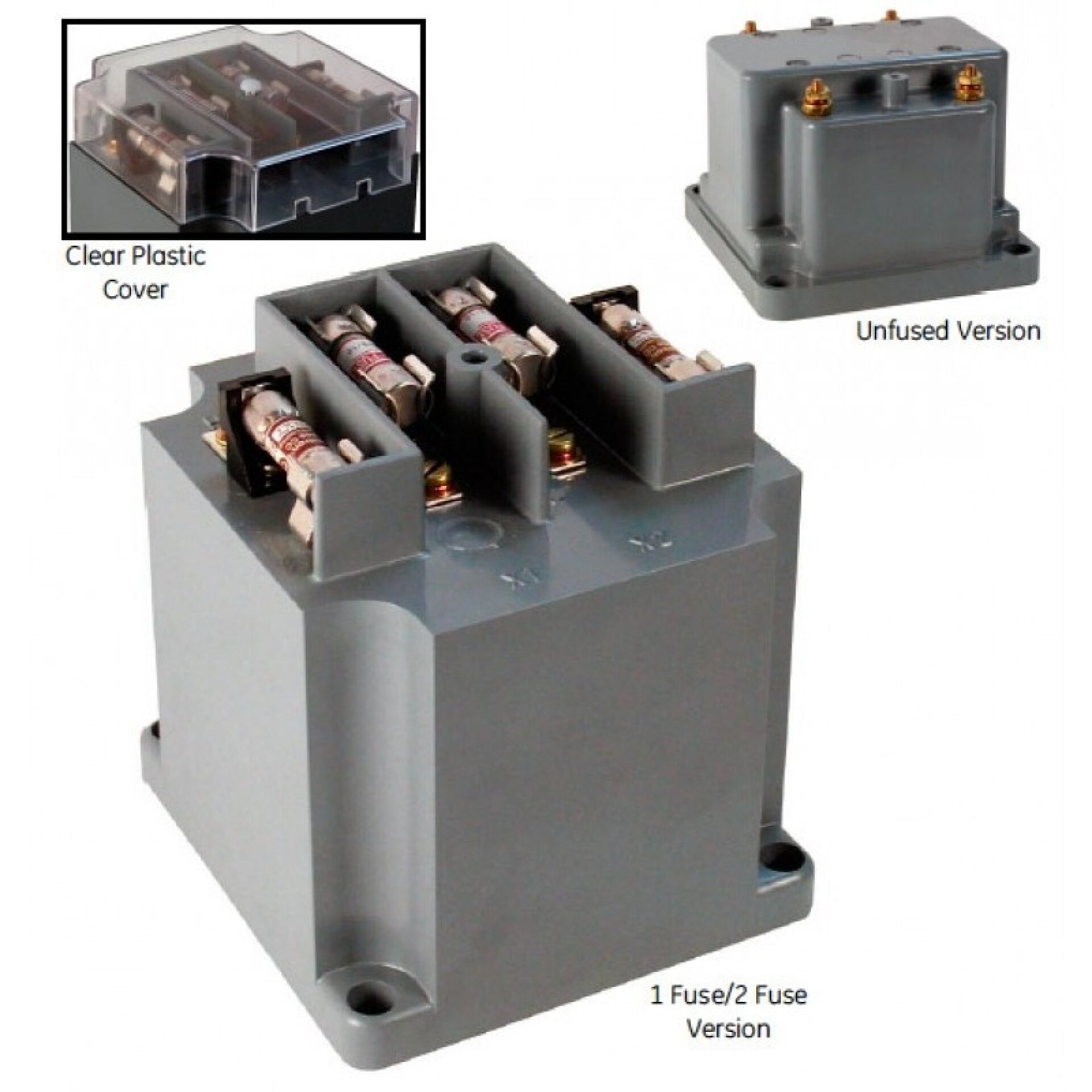

Model JE-27C Indoor Voltage Transformer
Model JE-27C Indoor Voltage Transformer - Transformers
APPLICATION: Designed for indoor service; suitable for operating meters, instruments, relays and control devices.
REGULATORY AGENCY APPROVALS: UL Recognized - File E93779
THERMAL RATING (VOLT-AMPERES)
55oC Rise above 30oC Ambient - 150 VA
30oC Rise above 55oC Ambient - 100 VA
WEIGHT: (Approximate) - 7.8 lbs
REFERENCE DRAWINGS: Outline - 0122C33698
INSULATION LEVEL: 0.6kV; BIL 10kV full wave
FREQUENCY: 60 Hz
Overview
APPLICATION: Designed for indoor service; suitable for operating meters, instruments, relays and control devices.
REGULATORY AGENCY APPROVALS: UL Recognized - File E93779
THERMAL RATING (VOLT-AMPERES)
55oC Rise above 30oC Ambient - 150 VA
30oC Rise above 55oC Ambient - 100 VA
WEIGHT: (Approximate) - 7.8 lbs
REFERENCE DRAWINGS: Outline - 0122C33698
INSULATION LEVEL: 0.6kV; BIL 10kV full wave
FREQUENCY: 60 Hz
Request a Quote for Model JE-27C Indoor Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 7.8 lbs
- Mounting
- Indoor
- Application
- Metering, Protection, Control Power
- Standards
- UL
- Insulation Class
- 0.6 kV
- Thermal Rating
- 150 VA / 100 VA
- ANSI Accuracy Class
- 0.6 W, 1.2 X, 2.4 X
- Recommended Secondary Fuse
- Type BBS 1.6 A
- Recommended Primary Fuse Type
- Class CC
- Construction
- Encapsulated in polyurethane resin
- Mounting Detail
- Any position, 4 mounting holes
- Burden — Value
- 150
- Burden — Condition
- max
- Dielectric Test — Voltage
- 10
Maximum 1000 characters
Specification Table
| Primary V | Secondary V | Ratio (display) | Fuse Rating |
|---|---|---|---|
| 69.3 | 120 | 0.578:1 | 5.0 A |
| 69.3 | 120 | 0.578:1 | 5.0 A |
| 69.3 | 120 | 0.578:1 | 5.0 A |
| 120 | 120 | 1:1 | 4.0 A |
| 120 | 120 | 1:1 | 4.0 A |
| 120 | 120 | 1:1 | 4.0 A |
| 120 | 69.3 | 1.732:1 | 2.0 A |
| 120 | 69.3 | 1.732:1 | 2.0 A |
| 120 | 69.3 | 1.732:1 | 2.0 A |
| 207.8 | 120 | 1.732:1 | 2.0 A |
| 207.8 | 120 | 1.732:1 | 2.0 A |
| 207.8 | 120 | 1.732:1 | 2.0 A |
| 240 | 120 | 2:1 | 2.0 A |
| 240 | 120 | 2:1 | 2.0 A |
| 240 | 120 | 2:1 | 2.0 A |
| 288 | 120 | 2.4:1 | 1.5 A |
| 288 | 120 | 2.4:1 | 1.5 A |
| 288 | 120 | 2.4:1 | 1.5 A |
| 300 | 120 | 2.5:1 | 1.5 A |
| 300 | 120 | 2.5:1 | 1.5 A |
| 300 | 120 | 2.5:1 | 1.5 A |
| 480 | 120 | 4:1 | 1.0 A |
| 480 | 120 | 4:1 | 1.0 A |
| 480 | 120 | 4:1 | 1.0 A |
| 600 | 120 | 5:1 | 0.75 A |
| 600 | 120 | 5:1 | 0.75 A |
| 600 | 120 | 5:1 | 0.75 A |
