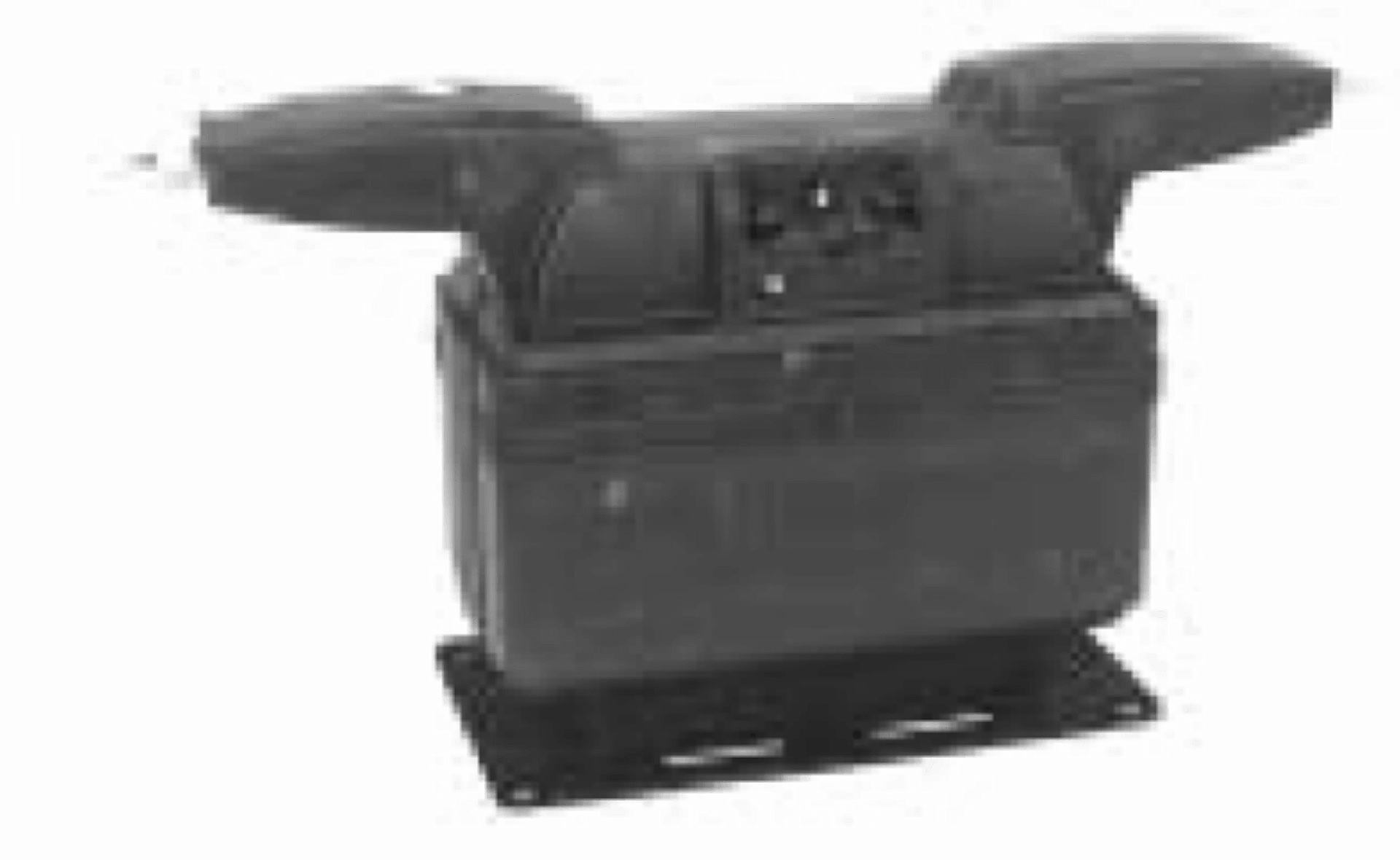

Model JKM-3 Indoor Current Transformer
Indoor current transformer for protective relaying, metering, and instrumentation; rated 5 kV.
Our JKM-3 provides reliable indoor current transformer performance for protective relaying, metering, and instrumentation.
Overview
The Model JKM-3 Indoor Current Transformer is engineered for indoor service in utility, industrial, and commercial electrical distribution installations, targeting protective relaying, metering, and instrumentation. Designed for indoor service; suitable for operating meters, relays, and control devices. Continuous Thermal Current Rating Factor 30 °C Ambient/55 ° Ambient: All models except those noted below
Constructed with precision-wound cores and robust insulation, the JKM-3 maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of indoor installations. Key ratings: 5 kV. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.
Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
Request a Quote for Model JKM-3 Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 60 kV
- Weight
- 30 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated voltage class
- 5 kV
- Net/shipping weight by build
- Single-secondary and tapped-secondary: 30 lbs net / 36 lbs shipping
- Third-party approval
- Measurement Canada Approved: AE-486 or AE-0326
- Reference drawings
- Accuracy Curve 9689241518; Excitation Curve 9932600018; Outline (single-secondary) 4147858; Outline (dual-secondary) 8949933; Outline (tapped-secondary) 8949942
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- metering, burden classes B-0.1/B-0.2/B-0.5 and B-1/B-2
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 5 | 5 | 5:5 | 1.5 | 1 |
| 10 | 5 | 10:5 | 1.5 | 1 |
| 15 | 5 | 15:5 | 1.5 | 1 |
| 20 | 5 | 20:5 | 1.5 | 1 |
| 25 | 5 | 25:5 | 1.5 | 1 |
| 30 | 5 | 30:5 | 1.5 | 1 |
| 40 | 5 | 40:5 | 1.5 | 1 |
| 50 | 5 | 50:5 | 1.5 | 1 |
| 75 | 5 | 75:5 | 1.5 | 1 |
| 100 | 5 | 100:5 | 1.5 | 1 |
| 150 | 5 | 150:5 | 1.5 | 1 |
| 200 | 5 | 200:5 | 1.5 | 1 |
| 300 | 5 | 300:5 | 1.5 | 1 |
| 400 | 5 | 400:5 | 1.5 | 1 |
| 600 | 5 | 600:5 | 1.5 | 1 |
| 800 | 5 | 800:5 | 1.33 | 1 |
| — | 5 | 50/100:5 | 1.5 | 1 |
| — | 5 | 75/150:5 | 1.5 | 1 |
| — | 5 | 100/200:5 | 1.5 | 1 |
| — | 5 | 150/300:5 | 1.5 | 1 |
| — | 5 | 200/400:5 | 1.5 | 1 |
| — | 5 | 300/600:5 | 1.5 | 1 |
| — | 5 | 400/800:5 | 1.5 | 1 |
