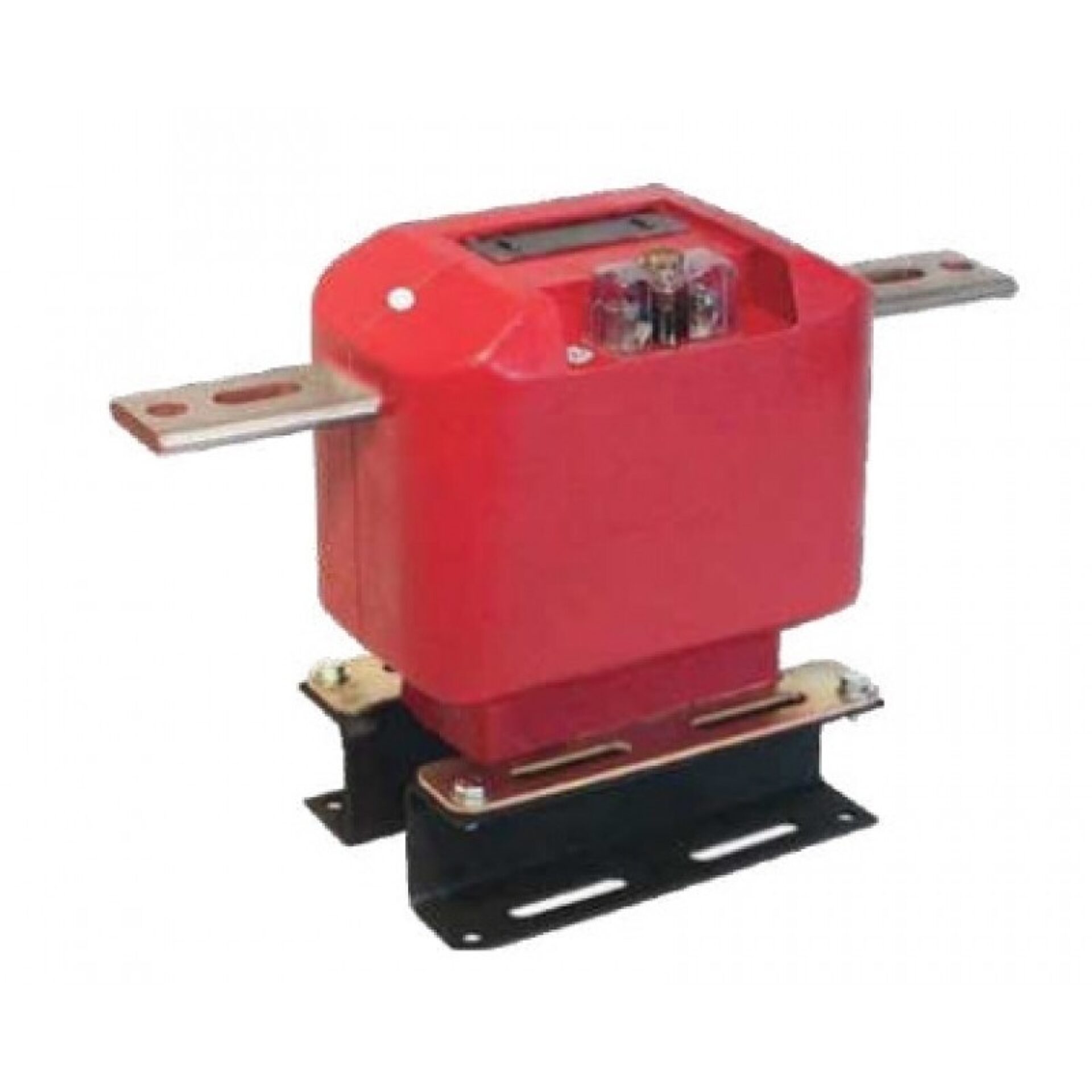

Model JKM-4C Indoor Current Transformer
Introducing the Model JKM-4C Indoor Current Transformer, a reliable and precise solution designed to meet the demanding needs of modern electrical systems. Manufactured by Spectrum Industries, this current transformer is engineered to provide accurate current measurement and monitoring within indoor environments, making it an essential component for various industrial, commercial, and utility applications. Its robust construction and high-quality materials ensure durability and consistent performance over time, even in challenging conditions.
Overview
Introducing the Model JKM-4C Indoor Current Transformer, a reliable and precise solution designed to meet the demanding needs of modern electrical systems. Manufactured by Spectrum Industries, this current transformer is engineered to provide accurate current measurement and monitoring within indoor environments, making it an essential component for various industrial, commercial, and utility applications. Its robust construction and high-quality materials ensure durability and consistent performance over time, even in challenging conditions.
The Model JKM-4C is designed for easy installation and integration into existing electrical setups. It features a compact form factor that allows for seamless placement in confined spaces, without compromising on measurement accuracy. This current transformer is capable of handling a wide range of current levels, making it versatile for different system requirements. Its precision ensures that operators can rely on accurate data for system monitoring, fault detection, and load analysis, ultimately enhancing operational efficiency and safety.
Spectrum Industries’ commitment to quality and innovation is reflected in the design of the Model JKM-4C. Whether used in new installations or as part of a maintenance upgrade, this current transformer offers dependable performance, helping users maintain optimal system performance and ensure compliance with industry standards. With the Model JKM-4C, you gain a trusted partner in electrical measurement that supports your infrastructure’s reliability and safety.
Request a Quote for Model JKM-4C Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 75 kV
- Weight
- 42 lbs
- Mounting
- Indoor
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Insulation Class
- 8.7 kV
- Reference Drawing
- 0163C34461
- Base Plate Material
- Stainless steel
- Secondary Terminal Type
- Tin-plated brass, compression type, 0.275in cross-hole, 1/4-28 clamp screw
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 5 | 5 | 5:5 | 1.5 | 1 |
| 5 | 5 | 5:5 | 1.5 | 1 |
| 10 | 5 | 10:5 | 1.5 | 1 |
| 10 | 5 | 10:5 | 1.5 | 1 |
| 15 | 5 | 15:5 | 1.5 | 1 |
| 15 | 5 | 15:5 | 1.5 | 1 |
| 20 | 5 | 20:5 | 1.5 | 1 |
| 20 | 5 | 20:5 | 1.5 | 1 |
| 25 | 5 | 25:5 | 1.5 | 1 |
| 25 | 5 | 25:5 | 1.5 | 1 |
| 30 | 5 | 30:5 | 1.5 | 1 |
| 30 | 5 | 30:5 | 1.5 | 1 |
| 40 | 5 | 40:5 | 1.5 | 1 |
| 40 | 5 | 40:5 | 1.5 | 1 |
| 50 | 5 | 50:5 | 1.5 | 1 |
| 50 | 5 | 50:5 | 1.5 | 1 |
| 75 | 5 | 75:5 | 1.5 | 1 |
| 75 | 5 | 75:5 | 1.5 | 1 |
| 100 | 5 | 100:5 | 1.5 | 1 |
| 100 | 5 | 100:5 | 1.5 | 1 |
| 150 | 5 | 150:5 | 1.5 | 1 |
| 150 | 5 | 150:5 | 1.5 | 1 |
| 200 | 5 | 200:5 | 1.5 | 1 |
| 200 | 5 | 200:5 | 1.5 | 1 |
| 300 | 5 | 300:5 | 1.5 | 1 |
| 300 | 5 | 300:5 | 1.5 | 1 |
| 400 | 5 | 400:5 | 1.5 | 1 |
| 400 | 5 | 400:5 | 1.5 | 1 |
| 500 | 5 | 500:5 | 1.33 | 1 |
| 500 | 5 | 500:5 | 1.33 | 1 |
| 600 | 5 | 600:5 | 1.5 | 1 |
| 600 | 5 | 600:5 | 1.5 | 1 |
| 800 | 5 | 800:5 | 1.33 | 1 |
| 800 | 5 | 800:5 | 1.33 | 1 |
