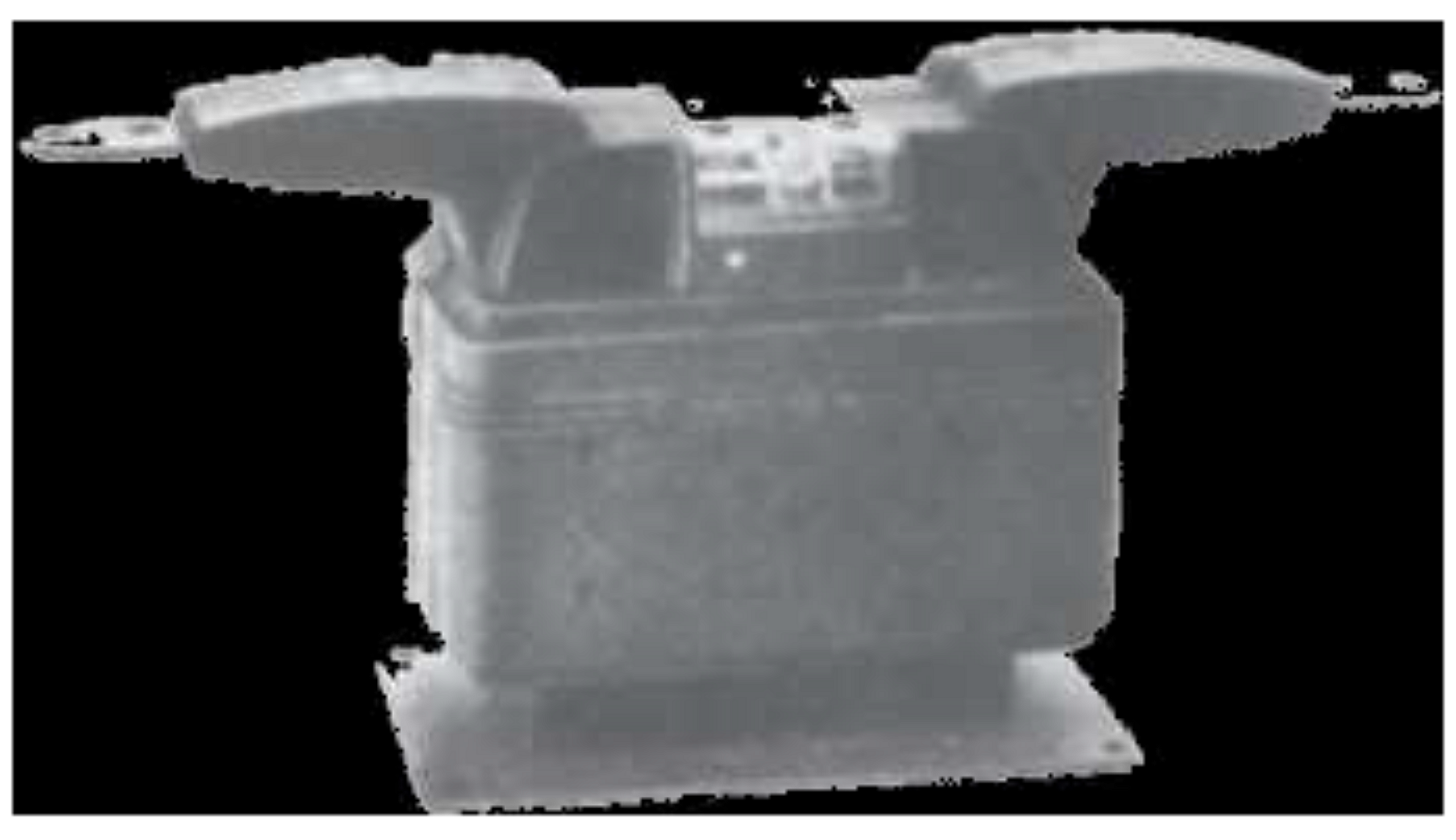

Model JKM-5A Indoor Current Transformer
Indoor current transformer for protective relaying, metering, and instrumentation; rated 110 kV.
Our JKM-5A provides reliable indoor current transformer performance for protective relaying, metering, and instrumentation.
Overview
The Model JKM-5A Indoor Current Transformer is engineered for indoor service in utility, industrial, and commercial electrical distribution installations, targeting protective relaying, metering, and instrumentation. Designed for indoor service; suitable for operating meters, relays, and control devices. The JKM-5A features 0.15 accuracy from 5% of nameplate Amps through Rating Factor Amps when applied within its burden capability
Constructed with precision-wound cores and robust insulation, the JKM-5A maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of indoor installations. Key ratings: 110 kV. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.
Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
Request a Quote for Model JKM-5A Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 110 kV
- Weight
- 47 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated Voltage Class
- 15,000 V
- Construction Type
- Wound-type, Single-Secondary
- ANSI Relay Class
- T200
- Rated Primary Current Range
- 5 A to 800 A
- Overall Accuracy — Accuracy
- 0.15
- Overall Accuracy — Condition
- 5% of nameplate Amps through Rating Factor Amps
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 5 | 5 | 5:5 | 1.5 | 1 |
| 10 | 5 | 10:5 | 1.5 | 1 |
| 15 | 5 | 15:5 | 1.5 | 1 |
| 20 | 5 | 20:5 | 1.5 | 1 |
| 25 | 5 | 25:5 | 1.5 | 1 |
| 30 | 5 | 30:5 | 1.5 | 1 |
| 40 | 5 | 40:5 | 1.5 | 1 |
| 50 | 5 | 50:5 | 1.5 | 1 |
| 75 | 5 | 75:5 | 1.5 | 1 |
| 100 | 5 | 100:5 | 1.5 | 1 |
| 150 | 5 | 150:5 | 1.5 | 1 |
| 200 | 5 | 200:5 | 1.5 | 1 |
| 300 | 5 | 300:5 | 1.5 | 1 |
| 400 | 5 | 400:5 | 1.5 | 1 |
| 600 | 5 | 600:5 | 1.5 | 1 |
