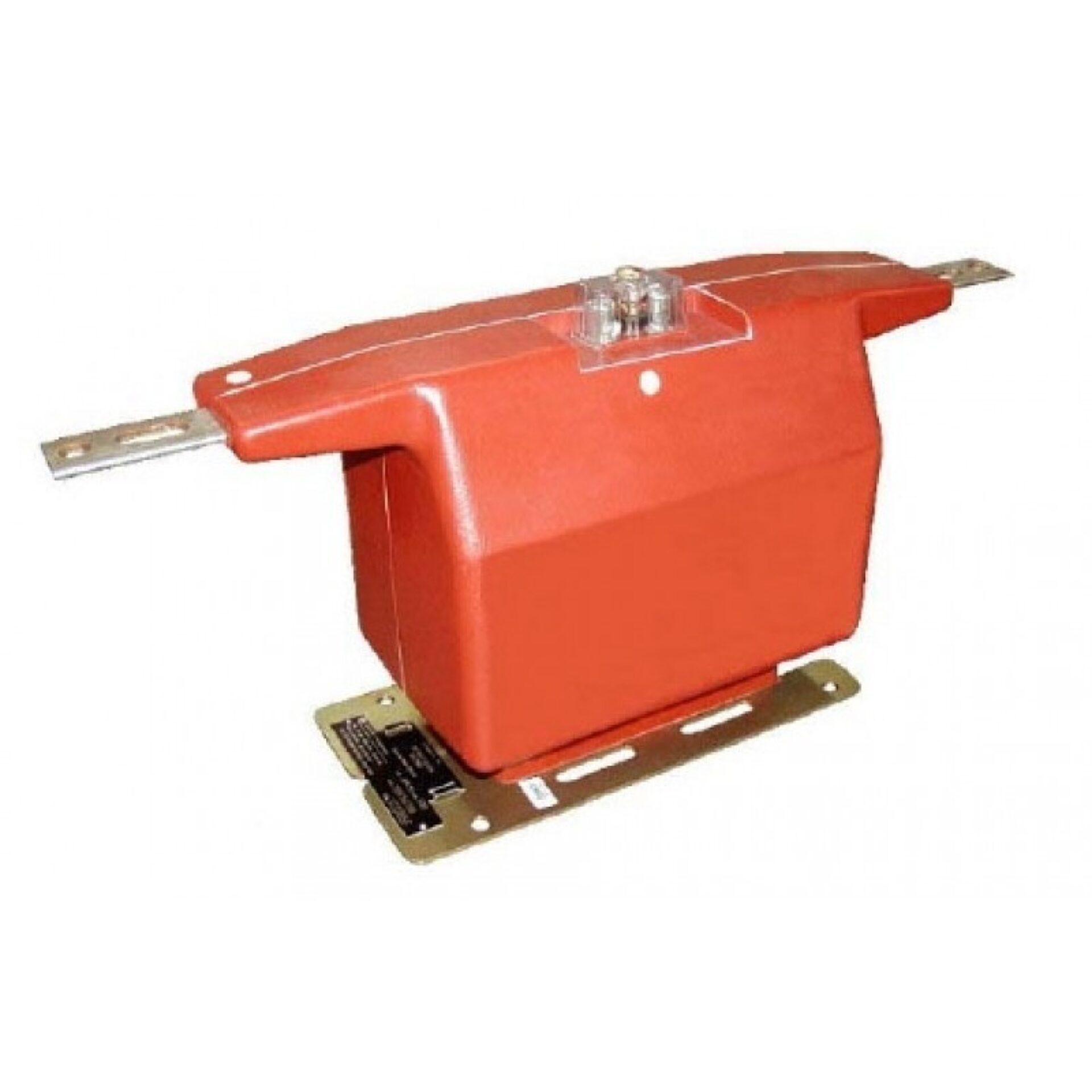

Model JKM-5C Indoor Current Transformer
Introducing the Model JKM-5C Indoor Current Transformer, an essential component designed to deliver precise current measurement capabilities within various electrical systems. Manufactured by Spectrum Industries, this high-quality current transformer is engineered to meet the demanding requirements of modern electrical applications, ensuring reliable performance and accurate data collection.
Overview
Introducing the Model JKM-5C Indoor Current Transformer, an essential component designed to deliver precise current measurement capabilities within various electrical systems. Manufactured by Spectrum Industries, this high-quality current transformer is engineered to meet the demanding requirements of modern electrical applications, ensuring reliable performance and accurate data collection.
The Model JKM-5C is specifically crafted for indoor use, making it ideal for installation in control panels, switchgear, and other enclosed environments where space and safety are paramount. Its robust construction and adherence to industry standards guarantee durability and long-term stability, even in demanding operational conditions. With a focus on safety and efficiency, this current transformer provides a safe means of isolating and measuring high current levels without compromising system integrity.
Designed with ease of installation in mind, the Model JKM-5C features user-friendly terminals and a compact form factor, allowing for seamless integration into existing electrical setups. Its precise current measurement capabilities enable accurate monitoring, fault detection, and system analysis, making it an invaluable tool for electrical engineers and maintenance professionals. Whether used in industrial, commercial, or utility applications, the Model JKM-5C Indoor Current Transformer from Spectrum Industries offers dependable performance and peace of mind for your electrical measurement needs.
Request a Quote for Model JKM-5C Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 110 kV
- Weight
- 53 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Standards
- ANSI/IEEE C57.13
- System Voltage
- 15.5 kV
- Construction
- Vacuum cast polyurethane resin encapsulation
- Primary Terminals
- Tin-plated copper bars
- Secondary Terminals
- Tin-plated brass, compression type
- Base Plate
- Stainless steel with four mounting slots
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 5 | 5 | 5:5 | 0.3B1.8 | 1.5 | 1.33 |
| 10 | 5 | 10:5 | 0.3B1.8 | 1.5 | 1.33 |
| 15 | 5 | 15:5 | 0.3B1.8 | 1.5 | 1.33 |
| 20 | 5 | 20:5 | 0.3B1.8 | 1.5 | 1.33 |
| 25 | 5 | 25:5 | 0.3B1.8 | 1.5 | 1.33 |
| 30 | 5 | 30:5 | 0.3B1.8 | 1.5 | 1.33 |
| 40 | 5 | 40:5 | 0.3B1.8 | 1.5 | 1.33 |
| 50 | 5 | 50:5 | 0.3B1.8 | 1.5 | 1.33 |
| 75 | 5 | 75:5 | 0.3B1.8 | 1.5 | 1.33 |
| 100 | 5 | 100:5 | 0.3B1.8 | 1.5 | 1.33 |
| 150 | 5 | 150:5 | 0.3B1.8 | 1.5 | 1.33 |
| 200 | 5 | 200:5 | 0.3B1.8 | 1.5 | 1.33 |
| 300 | 5 | 300:5 | 0.3B1.8 | 1.5 | 1.33 |
| 400 | 5 | 400:5 | 0.3B1.8 | 1.5 | 1.33 |
| 500 | 5 | 500:5 | 0.3B1.8 | 1.5 | 1.33 |
| 600 | 5 | 600:5 | 0.3B1.8 | 1.5 | 1.33 |
| 800 | 5 | 800:5 | 0.3B1.8 | 1.2 | 0.85 |
| 100 | 5 | 50/100:5 | 0.3B1.8 | 1.5 | 1 |
| 150 | 5 | 75/150:5 | 0.3B1.8 | 1.5 | 1 |
| 200 | 5 | 100/200:5 | 0.3B1.8 | 1.5 | 1 |
| 300 | 5 | 150/300:5 | 0.3B1.8 | 1.5 | 1 |
| 400 | 5 | 200/400:5 | 0.3B1.8 | 1.5 | 1 |
| 600 | 5 | 300/600:5 | 0.3B1.8 | 1.5 | 1 |
| 800 | 5 | 400/800:5 | 0.3B1.8 | 1.2 | 0.85 |
