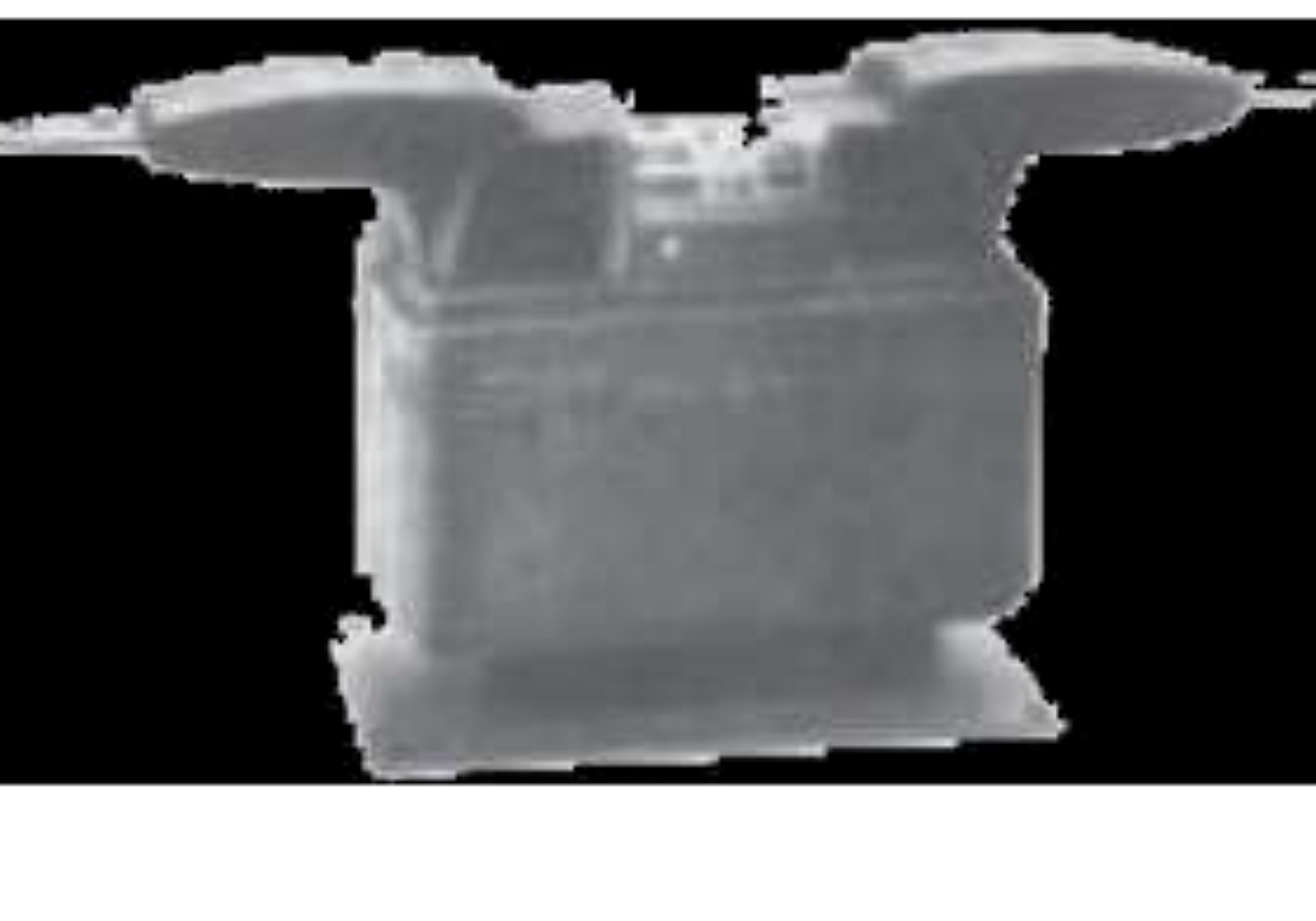

Model JKS-5 Indoor Current Transformer
Indoor current transformer for protective relaying, metering, and instrumentation.
Our JKS-5 provides reliable indoor current transformer performance for protective relaying, metering, and instrumentation.
Overview
The Model JKS-5 Indoor Current Transformer is engineered for indoor service in utility, industrial, and commercial electrical distribution installations, targeting protective relaying, metering, and instrumentation. Designed for indoor service; suitable for operating relays and control devices. It has been designed with extra-high mechanical and thermal ratings to adapt it to this application. Weight - Shipping/Net (approximate, in pounds) Single-Secondary
Constructed with precision-wound cores and robust insulation, the JKS-5 maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of indoor installations. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.
Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
Request a Quote for Model JKS-5 Indoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 95 kV
- Mounting
- Indoor
- Application
- Metering, Protection
- Rated Primary Voltage Class
- 15,000 V
- Primary Current Range
- 15 A to 800 A
- Secondary Current
- 5 A
- Net/Shipping Weight by Configuration
- Single-Secondary: 56/50 lbs (shipping/net); Dual-Secondary: 112/102 lbs (shipping/net); Tapped-Secondary: 56/50 lbs (shipping/net)
- Accuracy Class Notation
- Meter accuracy class listed per burden level (B-0.1, B-0.5, B-2); relay accuracy listed as ANSI T-class (T10-T200)
- Continuous Thermal Current Rating Factor
- 1.5 at 30C ambient / 1.0 at 55C ambient (single-secondary); 1.5 at 30C ambient / 1.1 at 55C ambient (tapped-secondary)
Specification Table
| Primary A | Secondary A | Ratio (display) | ANSI Metering Class | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|---|
| 15 | 5 | 15:5 | — | 1.5 | 1 |
| 20 | 5 | 20:5 | 1.2B0.1 | 1.5 | 1 |
| 25 | 5 | 25:5 | 1.2B0.5 | 1.5 | 1 |
| 30 | 5 | 30:5 | 0.6B0.1 | 1.5 | 1 |
| 40 | 5 | 40:5 | 1.2B0.1 | 1.5 | 1 |
| 50 | 5 | 50:5 | 0.6B0.1 | 1.5 | 1 |
| 75 | 5 | 75:5 | 0.6B0.1 | 1.5 | 1 |
| 100 | 5 | 100:5 | 0.3B0.1 | 1.5 | 1 |
| 150 | 5 | 150:5 | 0.3B0.5 | 1.5 | 1 |
| 200 | 5 | 200:5 | 0.3B0.5 | 1.5 | 1 |
| 300 | 5 | 300:5 | 0.3B0.5 | 1.5 | 1 |
| 400 | 5 | 400:5 | 0.3B1.8 | 1.5 | 1 |
| 600 | 5 | 600:5 | 0.3B1.8 | 1.5 | 1 |
| 800 | 5 | 800:5 | 0.3B0.5 | 1.5 | 1 |
| — | 5 | 50/100:5 | 0.3B0.1 | 1.5 | 1.1 |
| — | 5 | 75/150:5 | 0.3B0.5 | 1.5 | 1.1 |
| — | 5 | 100/200:5 | 0.3B0.5 | 1.5 | 1.1 |
| — | 5 | 150/300:5 | 0.3B0.5 | 1.5 | 1.1 |
| — | 5 | 200/400:5 | 0.3B1.8 | 1.5 | 1.1 |
| — | 5 | 300/600:5 | 0.3B1.8 | 1.5 | 1.1 |
| — | 5 | 400/800:5 | 0.3B0.5 | 1.5 | 1.1 |
