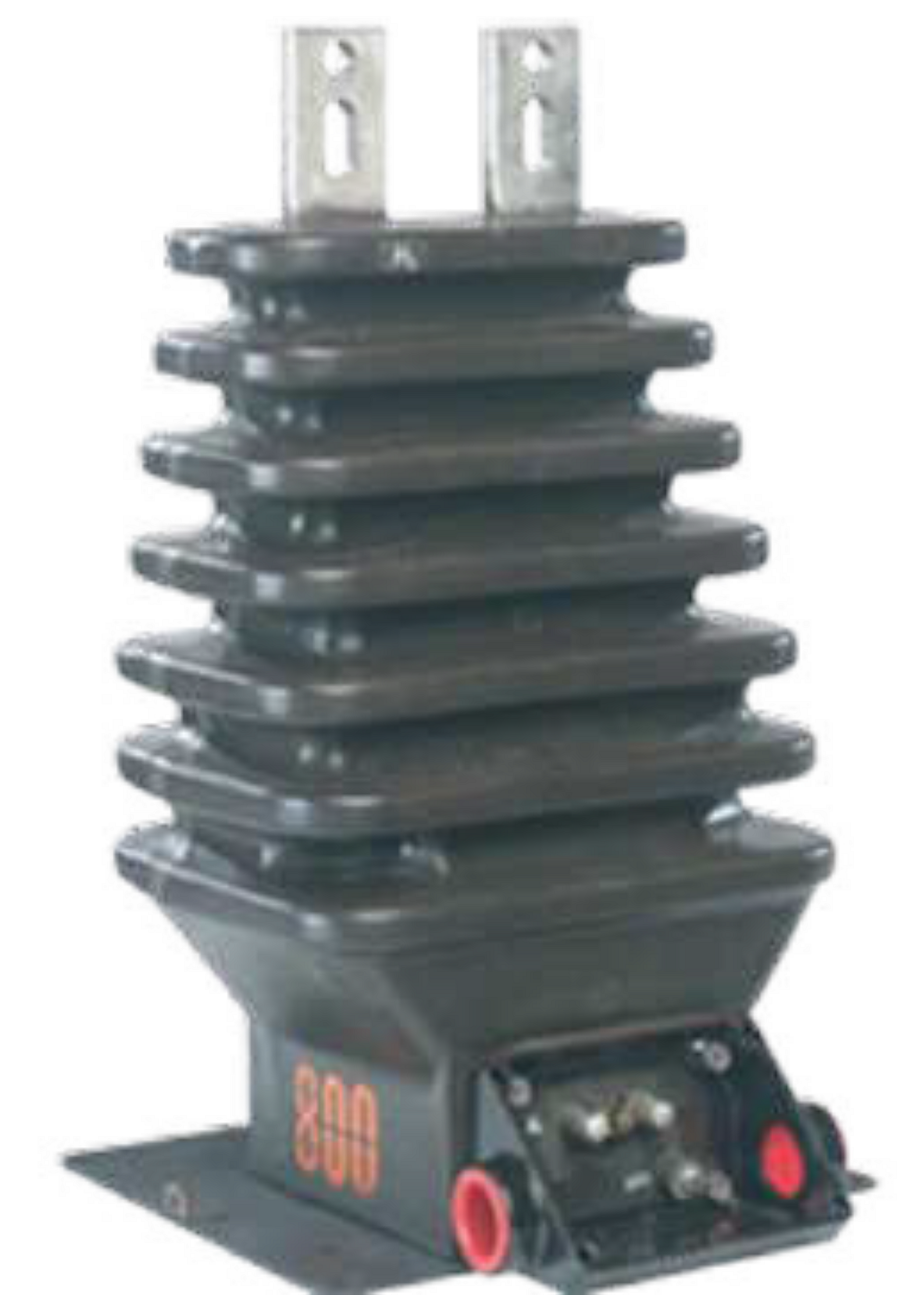

Model JKW-7ER Outdoor Current Transformer
Outdoor current transformer for protective relaying, metering, and instrumentation; rated 34.5 kV, 200 kV BIL, 2 to 1250A.
Our JKW-7ER provides reliable outdoor current transformer performance for protective relaying, metering, and instrumentation.
Overview
The Model JKW-7ER Outdoor Current Transformer is engineered for outdoor service in utility, industrial, and commercial electrical distribution installations, targeting protective relaying, metering, and instrumentation. Model JKW-7ER is a butyl-rubber butyl rubber instrument transformer, specially designed for longer life and higher reliability, and is part of our’s high-accuracy revenue metering line of high accuracy, extended range revenue metering current transformers which maintain IEEE C57.13 0.15 accuracy class from 1% of rated current up through rating factor
Constructed with precision-wound cores and robust insulation, the JKW-7ER maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of outdoor installations. Key ratings: 34.5 kV, 200 kV BIL, 2 to 1250A. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.
Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
Request a Quote for Model JKW-7ER Outdoor Current Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 200 kV
- Weight
- 60 lbs
- Mounting
- Outdoor
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Accuracy Class
- 0.15S (Special High Accuracy) per IEEE C57.13 - maintains 0.15% accuracy from 1% of rated current up through rating factor
- Voltage Class
- 34.5 kV
- Insulation Material
- HY-BUTE 60 molded butyl rubber
- Creep Distance
- 27.62 in [701.5 mm]
- Strike Distance
- 16.53 in [420 mm]
- Dimensions
- 19.88 in (h) x 10.88 in (w) x 9.51 in (d)
- Shipping Weight
- 75 lbs
- Regulatory Approval
- Approved for revenue metering by Measurement Canada AE-2465
- Polarity
- Subtractive
Specification Table
| Primary A | Secondary A | Ratio (display) | Thermal Rating Factor @ 30°C |
|---|---|---|---|
| 250 | 5 | 250:5 | 1.5 |
| 1000 | 5 | 1000:5 | 1.25 |
