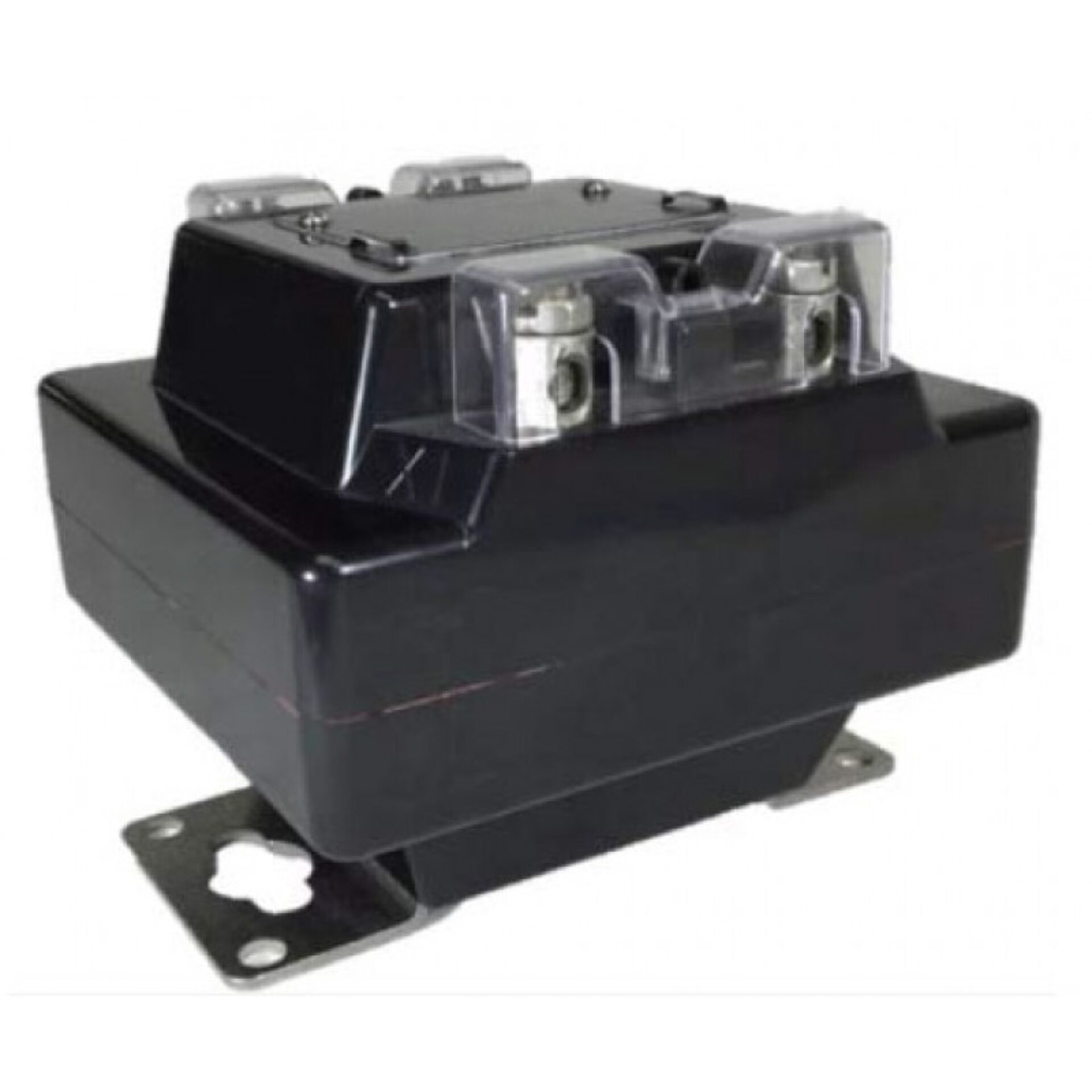

Model JVF-0C Indoor/Outdoor Voltage Transformer
Introducing the Model JVF-0C Indoor/Outdoor Voltage Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise voltage transformation for a variety of electrical applications, this transformer is an essential component for ensuring the safe and efficient operation of your electrical systems. Whether you need reliable voltage conversion for indoor or outdoor environments, the Model JVF-0C offers durability and performance you can trust.
Overview
Introducing the Model JVF-0C Indoor/Outdoor Voltage Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise voltage transformation for a variety of electrical applications, this transformer is an essential component for ensuring the safe and efficient operation of your electrical systems. Whether you need reliable voltage conversion for indoor or outdoor environments, the Model JVF-0C offers durability and performance you can trust.
a globally recognized leader in electrical equipment and technology, this voltage transformer embodies decades of engineering expertise and innovation. Its robust construction ensures resilience against harsh environmental conditions, making it suitable for outdoor installations while maintaining optimal performance indoors. The compact design allows for easy installation in a range of settings, from industrial facilities to commercial and residential applications.
Spectrum Industries takes pride in offering products that meet the highest standards of quality and reliability. The Model JVF-0C Voltage Transformer is no exception, providing consistent voltage regulation and protection for your electrical equipment. Whether you're upgrading existing systems or installing new infrastructure, this transformer is a dependable choice that combines advanced engineering with practical design. Trust Spectrum Industries and to deliver solutions that enhance the safety, efficiency, and longevity of your electrical systems.
Request a Quote for Model JVF-0C Indoor/Outdoor Voltage Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 10 kV
- Weight
- 11.5 lbs
- Application
- Metering, Protection
- Insulation Class
- 10 kV BIL, 600 V
- Construction
- Plastic shell, polyurethane encapsulated
- Primary Terminals
- H1, H2 tin-plated brass posts
- Secondary Terminals
- X1, X2 tin-plated brass posts
- Terminal Cover
- Transparent plastic
- Nameplate
- Laser-engraved aluminum, top-mounted
- Continuous Overvoltage
- 110% of rated primary voltage
- Emergency Overvoltage
- 125% of rated primary voltage
- Maintenance
- None required beyond occasional cleaning
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 120 | 120 | 1:1 | 200 | 300 |
| 240 | 120 | 2:1 | 200 | 300 |
| 277 | 120 | 2.31:1 | 200 | 300 |
| 288 | 120 | 2.4:1 | 200 | 300 |
| 300 | 120 | 2.5:1 | 200 | 300 |
| 360 | 120 | 3:1 | 200 | 300 |
| 480 | 120 | 4:1 | 200 | 300 |
| 600 | 120 | 5:1 | 200 | 300 |
