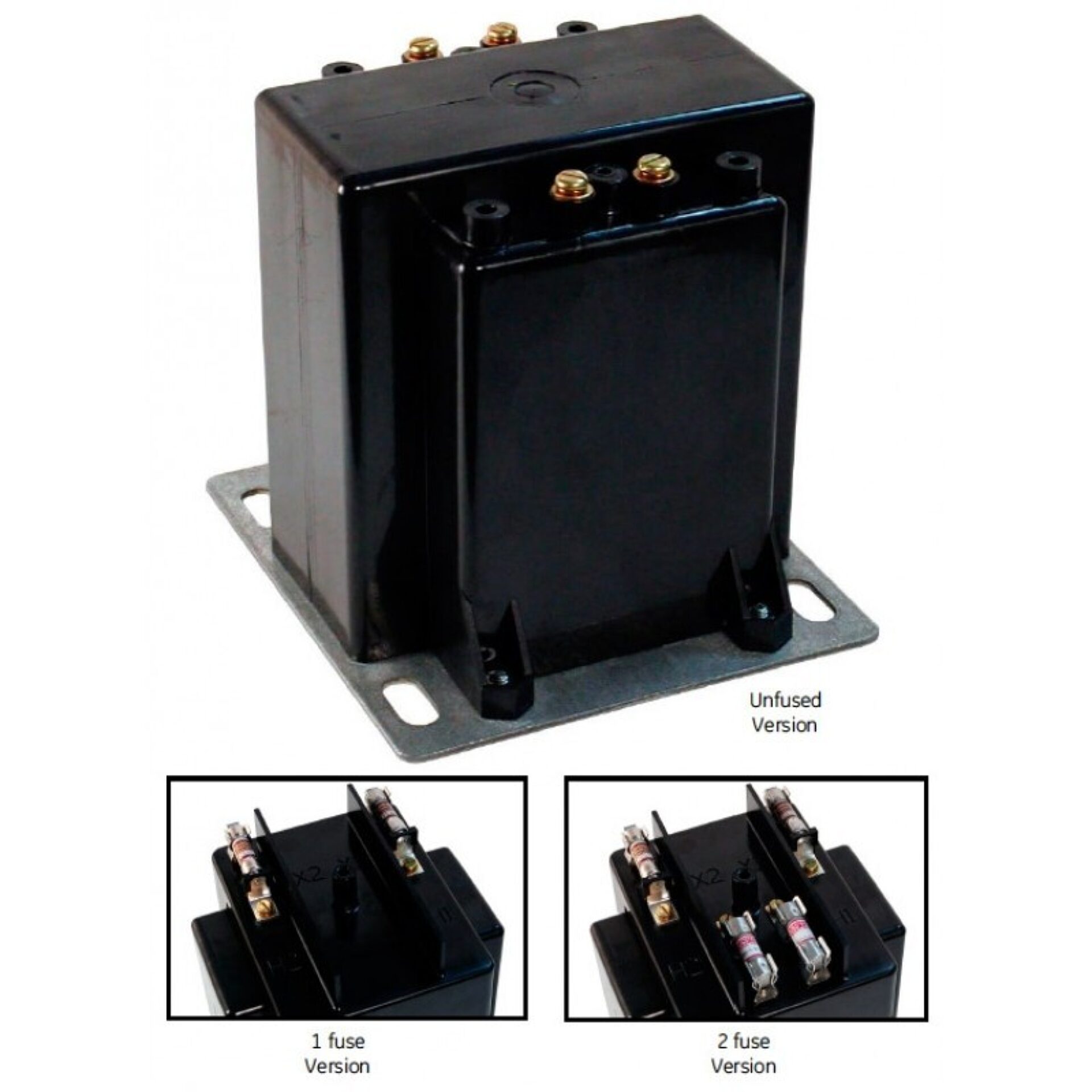

Model JVM-0C Indoor/Outdoor Voltage Transformer
Introducing the Model JVM-0C Indoor/Outdoor Voltage Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to provide accurate voltage measurement and reliable performance in a variety of environments, this transformer is an essential tool for electrical professionals and technicians alike. Whether used indoors or outdoors, the JVM-0C ensures precise voltage readings, facilitating efficient system monitoring and troubleshooting.
Overview
Introducing the Model JVM-0C Indoor/Outdoor Voltage Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to provide accurate voltage measurement and reliable performance in a variety of environments, this transformer is an essential tool for electrical professionals and technicians alike. Whether used indoors or outdoors, the JVM-0C ensures precise voltage readings, facilitating efficient system monitoring and troubleshooting.
a globally recognized leader in electrical and electronic solutions, this voltage transformer combines durability with advanced technology. Its robust construction allows it to withstand harsh outdoor conditions while maintaining consistent accuracy. The compact design makes installation straightforward, and its versatile application makes it suitable for diverse electrical systems. The JVM-0C is built to meet rigorous industry standards, ensuring safety and long-term reliability.
Spectrum Industries is proud to offer this premium product, which exemplifies our commitment to providing top-tier electrical components. Whether you need it for industrial, commercial, or residential projects, the Model JVM-0C Voltage Transformer delivers dependable performance. Trust in ’s engineering excellence and Spectrum Industries’ dedication to quality to support your electrical measurement needs with confidence.
Request a Quote for Model JVM-0C Indoor/Outdoor Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 10 kV
- Weight
- 25 lbs
- Application
- Metering, Protection
- Standards
- UL
- Insulation class
- 0.6 kV; BIL 10 kV full wave
- Thermal rating
- 750 VA @ 55C rise / 30C ambient; 500 VA @ 30C rise / 55C ambient
- Construction
- Molded thermoplastic polyester case, polyurethane resin encapsulated core and coils
- Terminals
- No. 10-32 brass screws with flat and lock washers; sealable clear plastic terminal cover
- Secondary fuse recommendation
- Type BBS, 8.0 A
- Service
- Indoor or outdoor
- Mounting
- Any position; four mounting slots in steel base plate
- Overvoltage limits
- 110% continuous; 125% emergency (110% for 480 V and 600 V primary ratings)
Specification Table
| Primary V | Secondary V | Ratio (display) | Fuse Rating |
|---|---|---|---|
| 69.3 | 120 | 0.578:1 | — |
| 69.3 | 120 | 0.578:1 | 15.0 A |
| 69.3 | 120 | 0.578:1 | 15.0 A |
| 120 | 120 | 1:1 | — |
| 120 | 120 | 1:1 | 10.0 A |
| 120 | 120 | 1:1 | 10.0 A |
| 120 | 69.3 | 1.732:1 | — |
| 120 | 69.3 | 1.732:1 | 10.0 A |
| 120 | 69.3 | 1.732:1 | 10.0 A |
| 207.8 | 120 | 1.732:1 | — |
| 207.8 | 120 | 1.732:1 | 8.0 A |
| 207.8 | 120 | 1.732:1 | 8.0 A |
| 240 | 120 | 2:1 | — |
| 240 | 120 | 2:1 | 8.0 A |
| 240 | 120 | 2:1 | 8.0 A |
| 288 | 120 | 2.4:1 | — |
| 288 | 120 | 2.4:1 | 6.0 A |
| 288 | 120 | 2.4:1 | 6.0 A |
| 300 | 120 | 2.5:1 | — |
| 300 | 120 | 2.5:1 | 6.0 A |
| 300 | 120 | 2.5:1 | 6.0 A |
| 480 | 120 | 4:1 | — |
| 480 | 120 | 4:1 | 4.0 A |
| 480 | 120 | 4:1 | 4.0 A |
| 600 | 120 | 5:1 | — |
| 600 | 120 | 5:1 | 3.0 A |
| 600 | 120 | 5:1 | 3.0 A |
