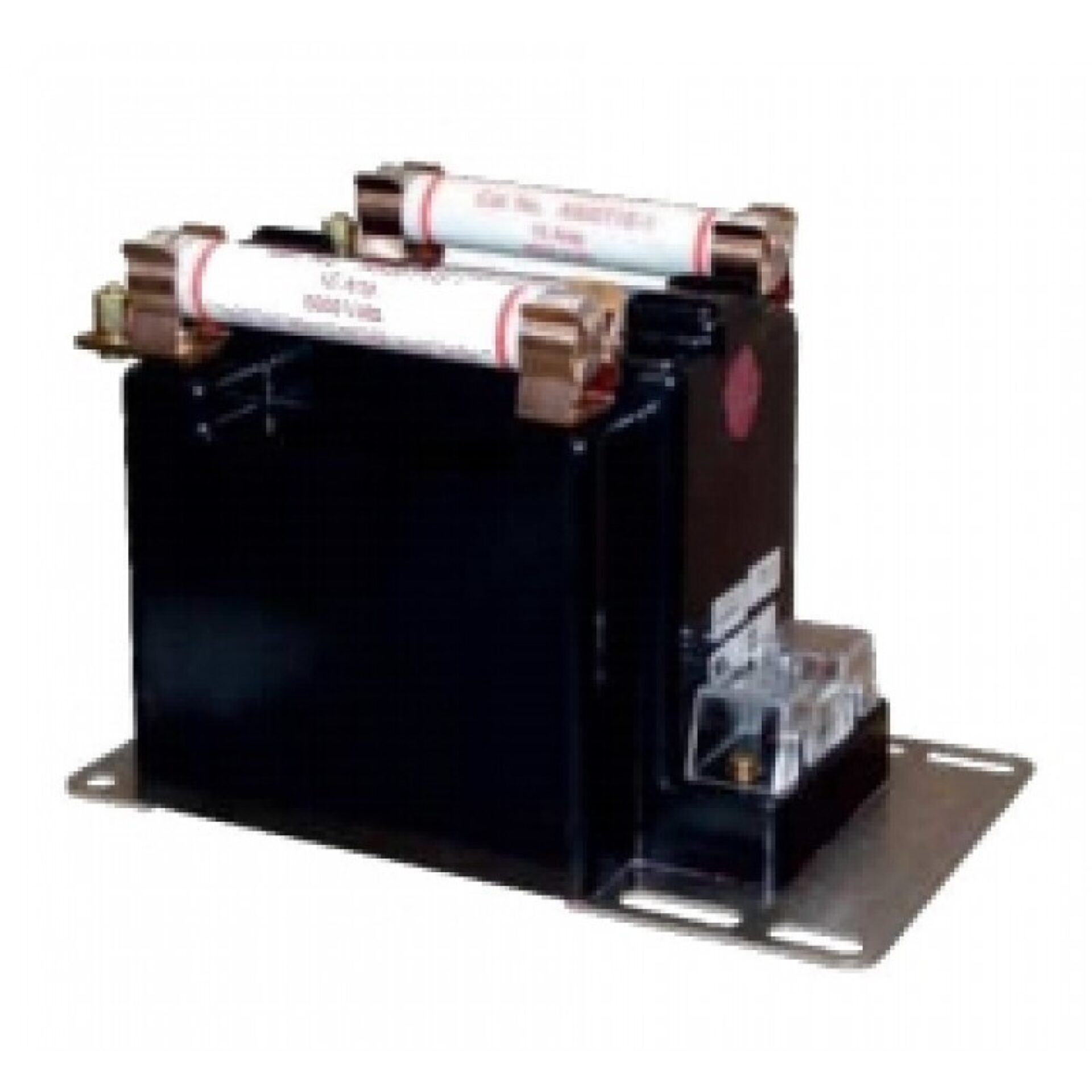

Model JVM-3C Indoor Voltage Transformer
Introducing the Model JVM-3C Indoor/Outdoor Voltage Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise voltage measurement and reliable performance, this transformer is an essential component for a variety of electrical applications. Whether used indoors or outdoors, the JVM-3C offers versatility and durability, making it suitable for both industrial and residential environments.
Overview
Introducing the Model JVM-3C Indoor/Outdoor Voltage Transformer, a high-quality product, brought to you by Spectrum Industries. Designed to deliver precise voltage measurement and reliable performance, this transformer is an essential component for a variety of electrical applications. Whether used indoors or outdoors, the JVM-3C offers versatility and durability, making it suitable for both industrial and residential environments.
a global leader in electrical equipment and systems, this voltage transformer embodies the company's commitment to innovation, safety, and efficiency. Spectrum Industries has partnered with to bring this advanced technology directly to your project, ensuring you receive a product that meets rigorous standards for quality and reliability. The JVM-3C is built to withstand harsh conditions while providing accurate voltage readings, which are crucial for maintaining optimal electrical system performance.
This transformer features a robust construction with weather-resistant capabilities, making it ideal for outdoor installations. Its compact design allows for easy integration into existing electrical setups without compromising space or accessibility. Whether monitoring voltage levels in complex industrial systems or ensuring safe operation in residential settings, the Model JVM-3C from Spectrum Industries offers dependable service and peace of mind. Trust in ’s legacy of excellence and Spectrum Industries’ dedication to quality with this versatile voltage transformer.
Request a Quote for Model JVM-3C Indoor Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 60 kV
- Weight
- 37 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Standards
- UL
- Thermal Rating
- 750 VA at 55C rise above 30C ambient; 500 VA at 30C rise above 55C ambient
- Regulatory Approval
- UL Recognized, File E145172
- Case Construction
- Core and coil enclosed in molded thermoplastic polyester case, vacuum encapsulated in polyurethane resin
- Core Material
- High quality grain-oriented silicon steel, factory annealed
- Fuse Type
- Current-limiting, E-rated, 1 in. diameter caps, 5 in. clip centers
- Terminals
- Primary: 1/4-20 brass screws (unfused) or studs with two nuts (fused); Secondary: No. 10-32 brass screws
- Base Plate / Mounting Hardware
- Stainless steel base plate with holes and slots for bolt or pipe-clamp mounting
- Overall Accuracy — Accuracy
- 0.3
- Overall Accuracy — Condition
- ANSI 0.3 W,X,M,Y; 1.2 Z classification, operated at rated voltage, 60 Hz
Specification Table
| Primary V | Ratio (display) | Fuse Rating |
|---|---|---|
| 2400 | 20:1 | — |
| 4200 | 35:1 | — |
| 4800 | 40:1 | — |
| 2400 | 20:1 | 2A |
| 2400 | 20:1 | 2A |
| 4200 | 35:1 | 1A |
| 4800 | 40:1 | 1A |
| 2400 | 20:1 | 2A |
| 2400 | 20:1 | 2A |
| 4200 | 35:1 | 1A |
| 4800 | 40:1 | 1A |
