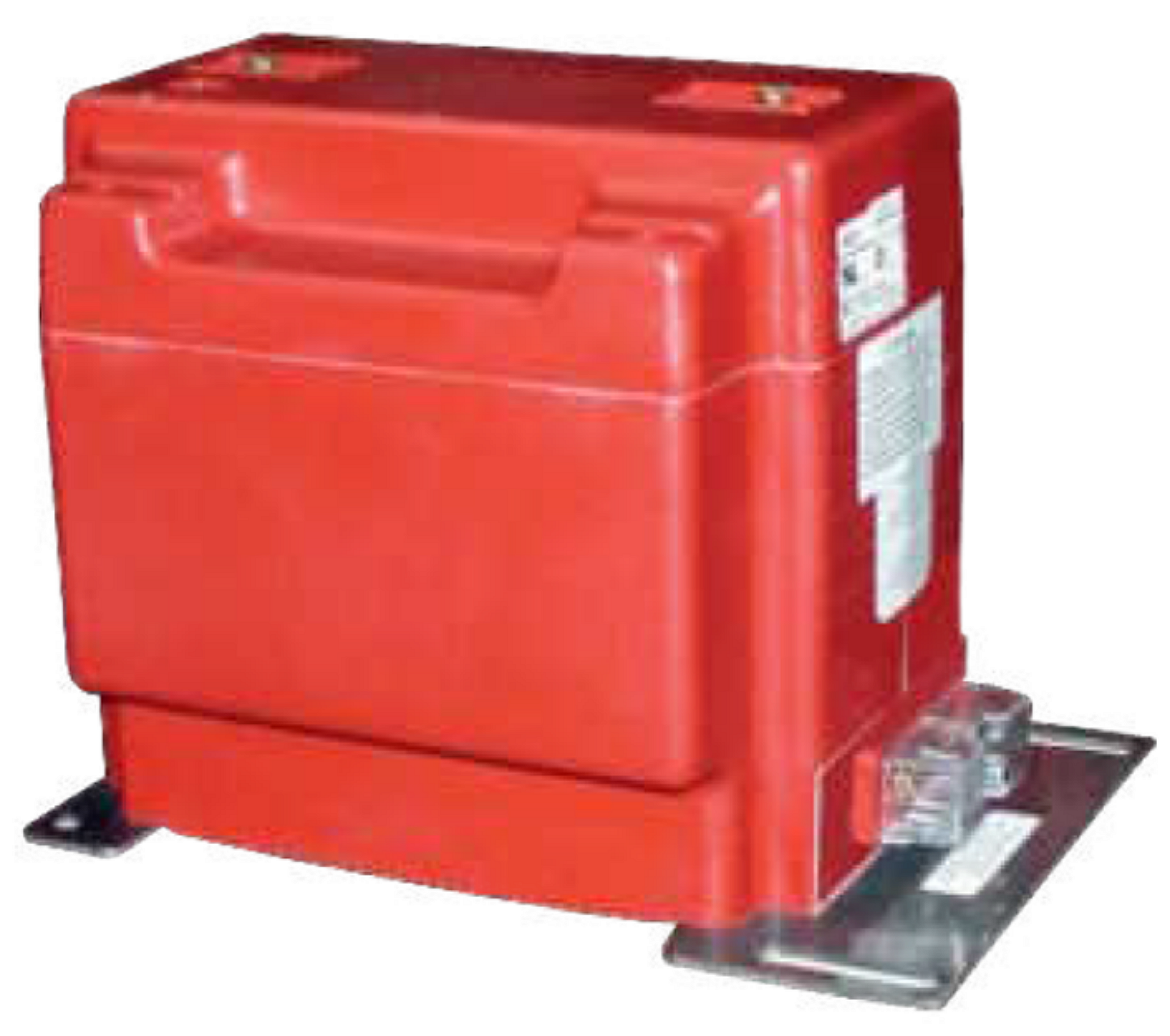

Model JVM-5C Indoor Voltage Transformer
Indoor voltage transformer for metering, protective relaying, and control power; rated 110 kV, 500 VA.
Our JVM-5C provides reliable indoor voltage transformer performance for metering, protective relaying, and control power.
Overview
The Model JVM-5C Indoor Voltage Transformer is engineered for indoor service in utility, industrial, and commercial electrical distribution installations, targeting metering, protective relaying, and control power. Designed for indoor service; suitable for operating meters, instruments, relays and control devices. Regulatory Agency Approvals UL Recognized
Constructed with precision-wound cores and robust insulation, the JVM-5C maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of indoor installations. Key ratings: 110 kV, 500 VA. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.
Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
Request a Quote for Model JVM-5C Indoor Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 110 kV
- Weight
- 85 lbs
- Mounting
- Indoor
- Application
- Metering, Protection
- Standards
- UL, ANSI/IEEE C57.13
- Insulation Level
- 75-110 kV BIL
- Primary Voltage Range
- 4,200-14,400 V
- Accuracy Classes
- Accuracy 1: 0.3 W,X,M,Y,Z / 1.2 ZZ; Accuracy 2: 0.3 W,X,M,Y / 1.2 Z; Accuracy 3: 0.3 W',X',M',Y',Z
- Overvoltage
- 110% continuous; 125% under emergency conditions
- Fusing Practice
- For Y connections, fuse only the line side of the primary
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 7200 | 120 | 60:1 |
| 8400 | 120 | 70:1 |
| 12000 | 120 | 100:1 |
| 14400 | 120 | 120:1 |
| 7200 | 120 | 60:1 |
| 7200 | 120 | 60:1 |
| 7200 | 120 | 60:1 |
| 7200 | 120 | 60:1 |
| 8400 | 120 | 70:1 |
| 8400 | 120 | 70:1 |
| 12000 | 120 | 100:1 |
| 12000 | 120 | 100:1 |
| 14400 | 120 | 120:1 |
| 14400 | 120 | 120:1 |
| 7200 | 120 | 60:1 |
| 7200 | 120 | 60:1 |
| 7200 | 120 | 60:1 |
| 7200 | 120 | 60:1 |
| 8400 | 120 | 70:1 |
| 8400 | 120 | 70:1 |
| 12000 | 120 | 100:1 |
| 12000 | 120 | 100:1 |
| 14400 | 120 | 120:1 |
| 14400 | 120 | 120:1 |
