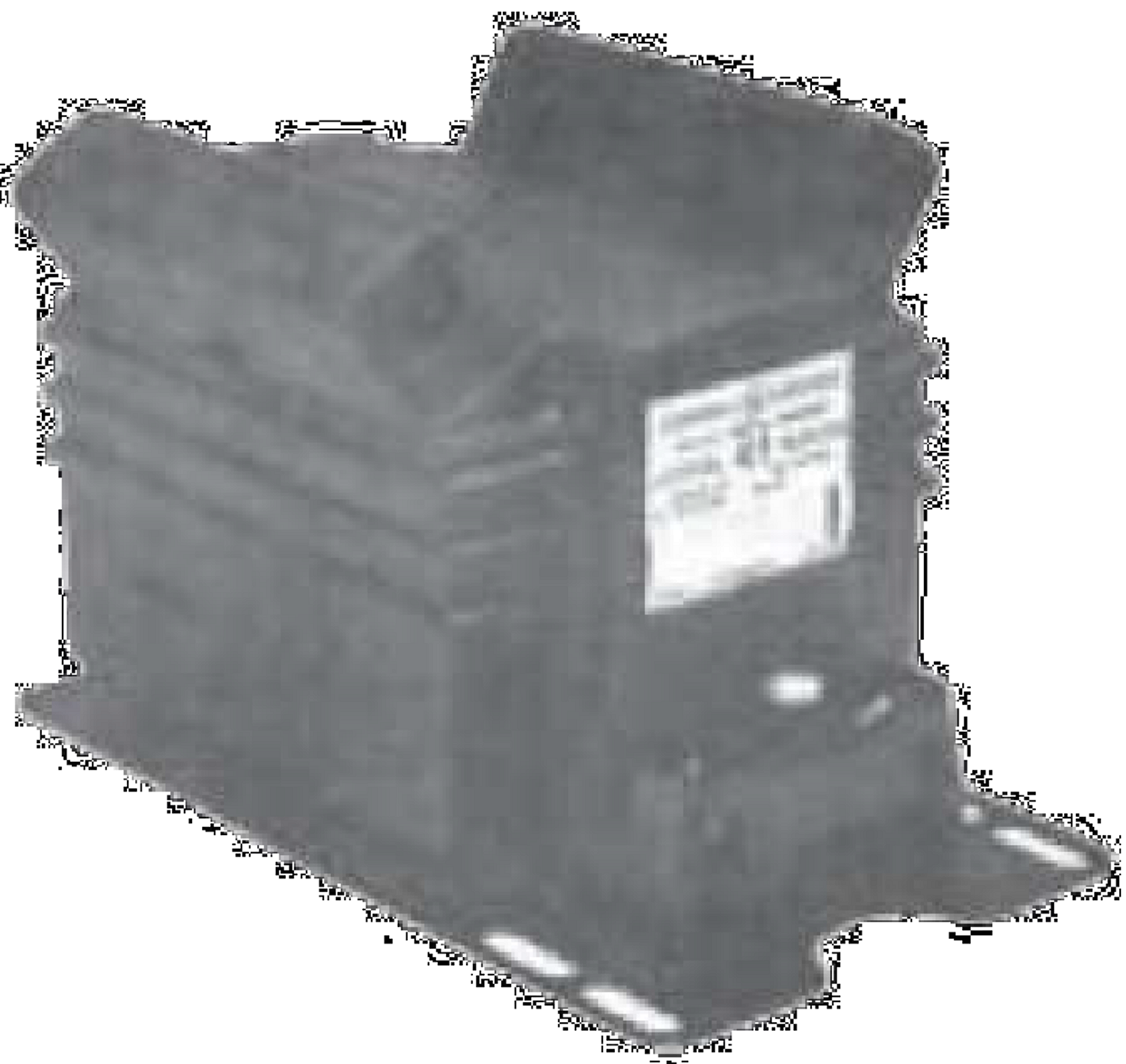

Model JVP-1 Outdoor Voltage Transformer
Outdoor voltage transformer for metering, protective relaying, and control power; rated 750 VA.
Our JVP-1 provides reliable outdoor voltage transformer performance for metering, protective relaying, and control power.
Overview
The Model JVP-1 Outdoor Voltage Transformer is engineered for outdoor service in utility, industrial, and commercial electrical distribution installations, targeting metering, protective relaying, and control power. Designed for indoor service; suitable for operating meters, instruments, relays, and control devices. Thermal Rating 55°C Rise Above 30 °C Ambient
Constructed with precision-wound cores and robust insulation, the JVP-1 maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of outdoor installations. Key ratings: 750 VA. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.
Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
Request a Quote for Model JVP-1 Outdoor Voltage Transformer
Product Specifications
- Frequency
- 50–60 Hz
- Insulation BIL
- 30 kV
- Weight
- 35 lbs
- Mounting
- Indoor
- Application
- Metering, Protection, Control Power
- Thermal Rating (55C Rise / 30C Ambient)
- 750 VA
- Thermal Rating (30C Rise / 50C Ambient)
- 500 VA
- Accuracy Classification
- 0.3 W, X, M, V; 1.2 Z
- Overvoltage Capability
- 1.10x continuous / 1.25x emergency
- Core Material
- Grain-oriented silicon steel
Specification Table
| Primary V | Secondary V | Ratio (display) | Fuse Rating |
|---|---|---|---|
| 240 | 120 | 2:1 | — |
| 240 | 120 | 2:1 | — |
| 240 | 120 | 2:1 | 5 A, 600 V |
| 480 | 120 | 2.4:1 | — |
| 480 | 120 | 2.4:1 | — |
| 480 | 120 | 2.4:1 | 5 A, 600 V |
| 480 | 120 | 2.5:1 | — |
| 480 | 120 | 2.5:1 | — |
| 480 | 120 | 2.5:1 | 5 A, 600 V |
| 480 | 120 | 4:1 | — |
| 480 | 120 | 4:1 | — |
| 480 | 120 | 4:1 | 5 A, 600 V |
| 600 | 120 | 5:1 | — |
| 600 | 120 | 5:1 | — |
| 600 | 120 | 5:1 | 5 A, 600 V |
