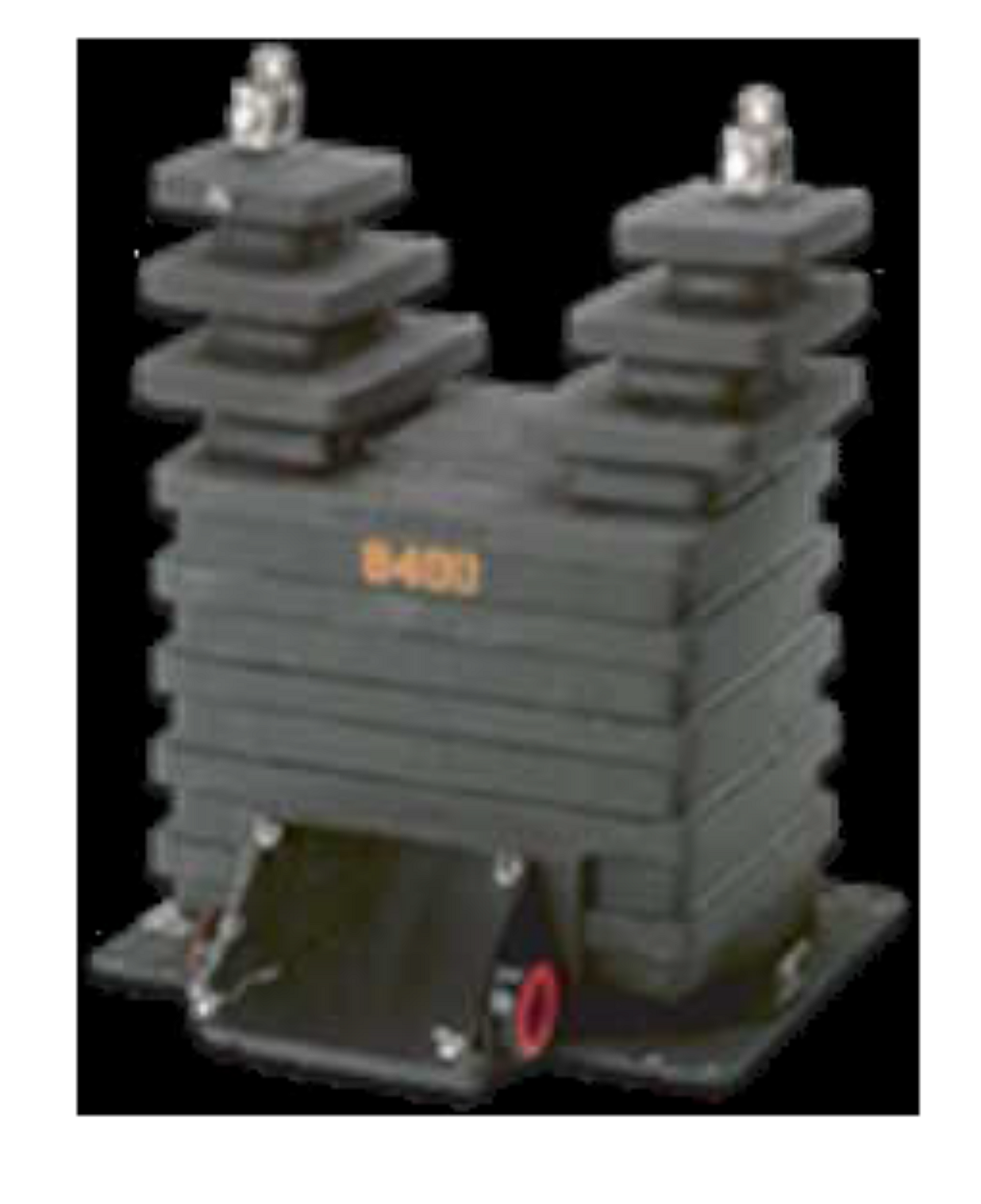

Model JVW-110 Outdoor Voltage Transformer
Outdoor voltage transformer for metering, protective relaying, and control power; rated 110 kV, 110 kV BIL, 000 VA.
Our JVW-110 provides reliable outdoor voltage transformer performance for metering, protective relaying, and control power.
Overview
The Model JVW-110 Outdoor Voltage Transformer is engineered for outdoor service in utility, industrial, and commercial electrical distribution installations, targeting metering, protective relaying, and control power. Model JVW-110 is designed for outdoor service and suitable for operating meters, instruments, relays, and control devices. JVW-110 is rated Distribution Class with lighter burden and thermal rating for more efficient application to solid-state metering and other modern relay and control power installations. This model is available in a variety of voltage, ratio and bushing types as outlined in the unit selection table below
Constructed with precision-wound cores and robust insulation, the JVW-110 maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of outdoor installations. Key ratings: 110 kV, 110 kV BIL, 000 VA. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.
Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
Request a Quote for Model JVW-110 Outdoor Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 110 kV
- Weight
- 105 lbs
- Mounting
- Outdoor
- Application
- Metering, Distribution
- Standards
- ANSI/IEEE C57.13
- Shipping Weight
- 120 lbs
- Dimensions
- 16.88" (h) x 14.25" (w) x 13.05" (d)
- Creep Distance
- 20.38" [517.7 mm]
- Strike Distance
- 12" [305 mm]
- Insulation Material
- HY-BUTE 60 Butyl Rubber
- Primary Winding Style
- Lattice-Type
- Thermal Rating
- 1,000 VA (55 C rise above 30 C)
- Measurement Canada Approval
- AE-1066
- Single-Bushing Overvoltage Rating
- 1.40x rated voltage for 1 minute, line-to-ground on grounded systems
- Double-Bushing Reduced-Voltage Operation
- Line-to-ground primary voltage = line-to-line voltage / sqrt(3), approx 58%
- Accuracy Class (60 Hz Burden)
- 0.3 W, X, M, Y
Specification Table
| Primary V | Secondary V | Ratio (display) |
|---|---|---|
| 7200 | 120 | 60:1 |
| 7620 | 120 | 63.5:1 |
| 8400 | 120 | 70:1 |
| 7200 | 120 | 60:1 |
| 7620 | 120 | 63.5:1 |
| 8400 | 120 | 70:1 |
| 12000 | 120 | 100:1 |
| 13200 | 120 | 110:1 |
| 13800 | 120 | 115:1 |
| 14400 | 120 | 120:1 |
