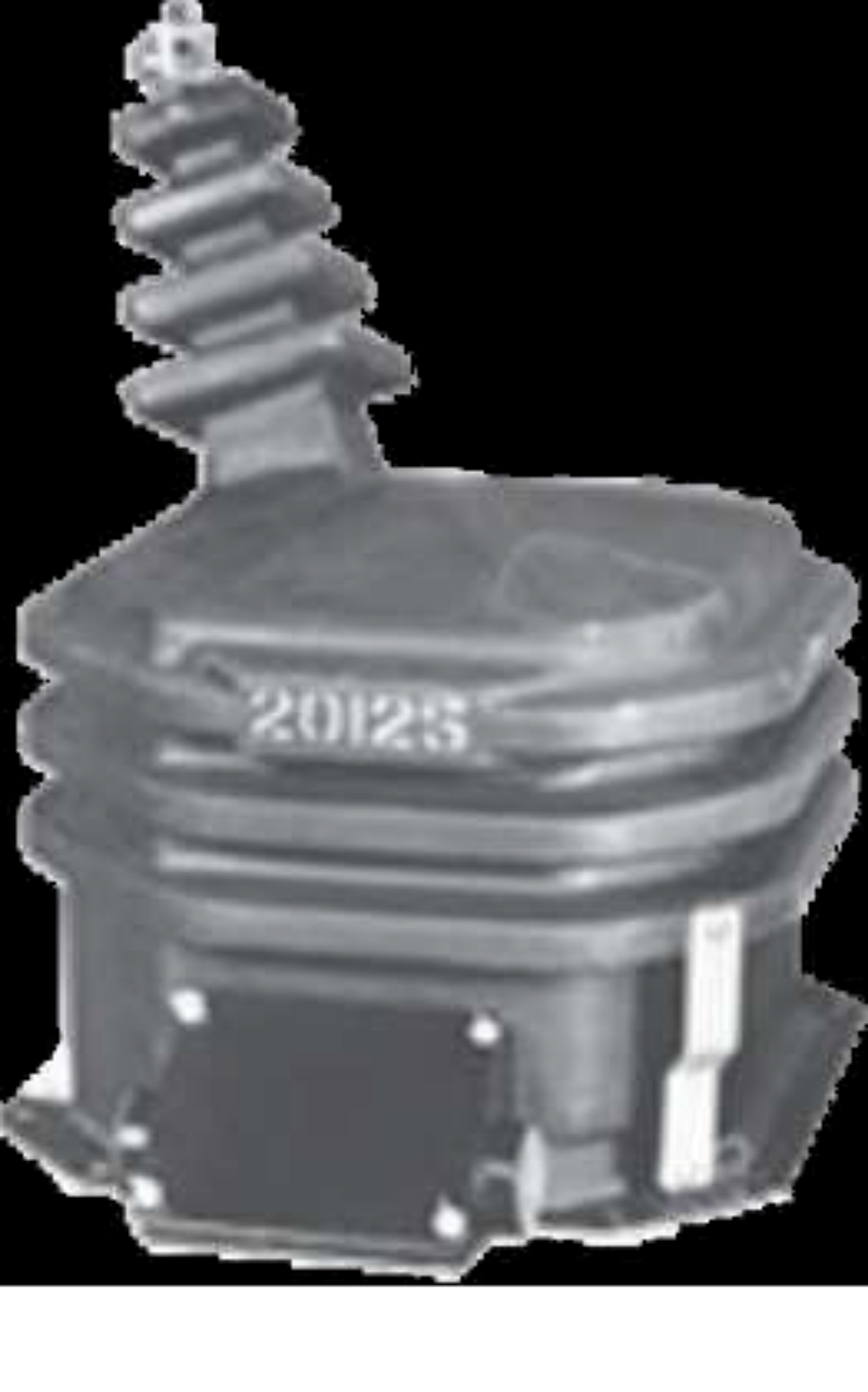

Model JVW-150 Outdoor Voltage Transformer

Name: Spectrum Industries
Price range: $

Outdoor voltage transformer for metering, protective relaying, and control power; rated 25 kV, 750 VA.

Our JVW-150 provides reliable outdoor voltage transformer performance for metering, protective relaying, and control power.

Ratio

Contact sales

Overview

The Model JVW-150 Outdoor Voltage Transformer is engineered for outdoor service in utility, industrial, and commercial electrical distribution installations, targeting metering, protective relaying, and control power. Designed for outdoor service; the model JVW-150 is a metering voltage transformer specifically designed to meet the requirements of 25 kV outdoor metering applications. Thermal Rating 55 °C Rise Above 30 °C Ambient

Constructed with precision-wound cores and robust insulation, the JVW-150 maintains rated accuracy through repeated thermal cycling, mechanical vibration, and environmental exposure typical of outdoor installations. Key ratings: 25 kV, 750 VA. Design conforms to IEEE C57.13 (where applicable) for instrument-transformer accuracy and dielectric testing.

Typical deployments include substation switchgear, generator and transformer protection, revenue metering, feeder and motor protection, and control-room instrumentation. Refer to the attached data sheet for complete ratio, burden, accuracy class, and dimensional details; contact our engineering team for custom ratings, extended range, or non-standard configurations.
