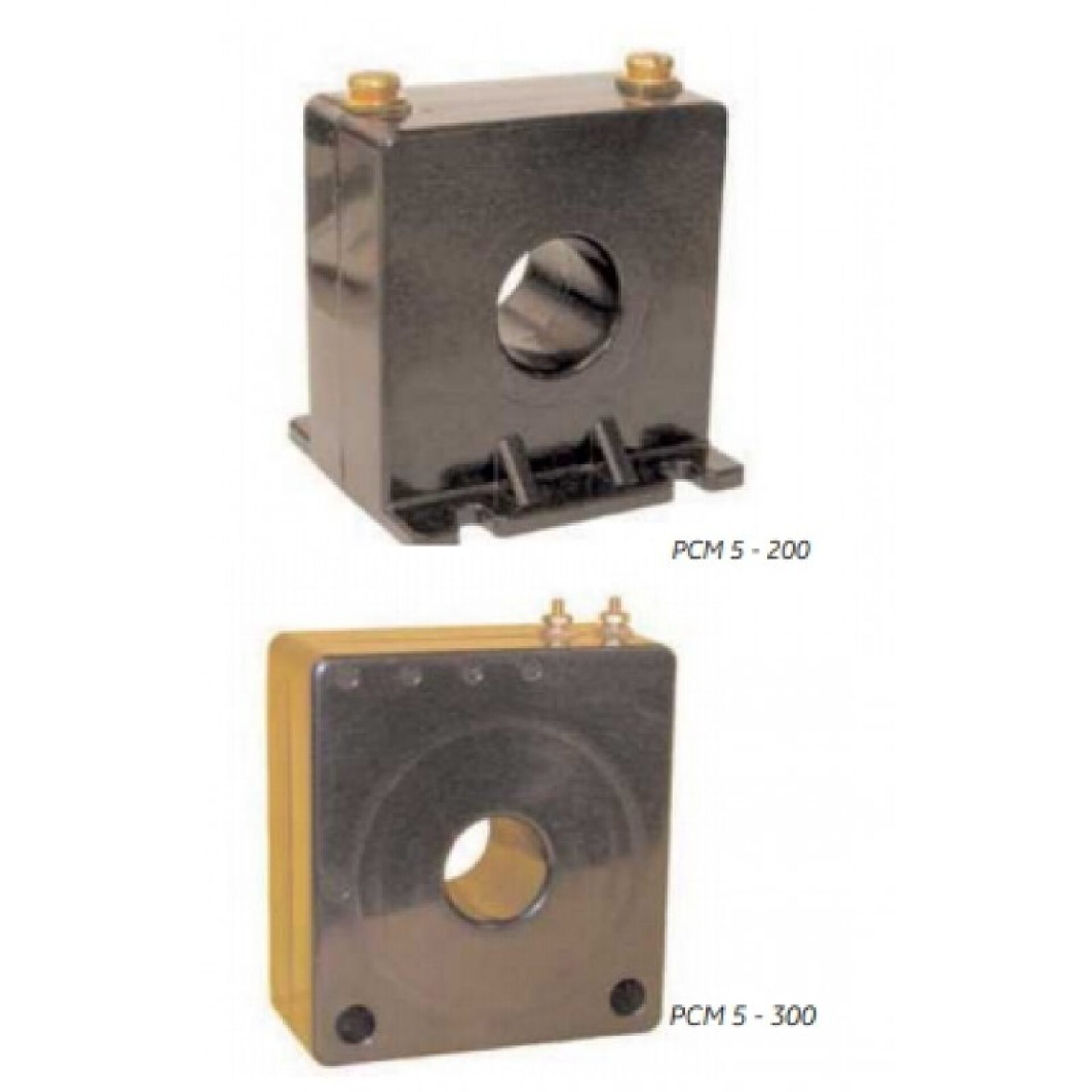

Model PCM AC Current Transducer 0 - 600 Amps
Model PCM AC Current Transducer 0 - 600 Amps - Transducers
Operating Range: Input 0 to 5 thru 300 Amps ac. Output: 4-20 mA dc.
Frequency: 50-400 Hz.
Ambient Temperature Range:
Effect on accuracy + 0.04%/ oC
Operating: -30 oC to +60 oC
Storage: -55 oC to +85 oC
Insulation Level:
600 Volts, 10 kV BIL full wave
Accuracy:
+ 0.5% F.S. maximum.
1 % maximum to peak ripple on dc output. peak ripple on output.
• Output load (RL): 0-600 ohms.
• Maximum output: 30 mA dc.
• Supply Voltage Range: 24V dc + 10 %.
• Response Time: <200ms (10 %-90 %)
• Repeatability: <0.1 %
• PCM 5- 200 terminal are brass screws No. 10-32 with one flatwasher, lockwasher and regular nut.
• PCM 300 terminal are brass studs No. 8- 32 with one flatwasher, lockwasher and nut.
Approximate weight 1.5 lbs
Available as PCM5, PCM10, PCM20, PCM30, PCM50, PCM75, PCM100, PCM150, PCM200 and PCM300
Overview
Operating Range: Input 0 to 5 thru 300 Amps ac. Output: 4-20 mA dc.
Frequency: 50-400 Hz.
Ambient Temperature Range:
Effect on accuracy + 0.04%/ oC
Operating: -30 oC to +60 oC
Storage: -55 oC to +85 oC
Insulation Level:
600 Volts, 10 kV BIL full wave
Accuracy:
+ 0.5% F.S. maximum.
1 % maximum to peak ripple on dc output. peak ripple on output.
• Output load (RL): 0-600 ohms.
• Maximum output: 30 mA dc.
• Supply Voltage Range: 24V dc + 10 %.
• Response Time: <200ms (10 %-90 %)
• Repeatability: <0.1 %
• PCM 5- 200 terminal are brass screws No. 10-32 with one flatwasher, lockwasher and regular nut.
• PCM 300 terminal are brass studs No. 8- 32 with one flatwasher, lockwasher and nut.
Approximate weight 1.5 lbs
Available as PCM5, PCM10, PCM20, PCM30, PCM50, PCM75, PCM100, PCM150, PCM200 and PCM300
Request a Quote for Model PCM AC Current Transducer 0 - 600 Amps
Product Specifications
- Frequency
- 50–400 Hz
- Operating Temperature
- -30°C to 60°C
- Insulation BIL
- 10 kV
- Weight
- 1.5 lbs
- Application
- Metering, Energy Management
- Standards
- UL
- Accuracy
- ± 0.05 % F.S. maximum
- Maximum output
- 30 mA dc
- Supply Voltage Range
- 24V dc + 10 %
- Response Time
- <200ms (10 %-90 %)
- Repeatability
- <0.1 %
- Frequency
- 50-400 Hz
- Ambient Temperature Range
- Effect on accuracy ± 0.04 %/ oC
- Insulation level
- 600 Volts, 10 kV BIL full wave
Maximum 1000 characters
Specification Table
| Input Min | Input Max | Output Min | Output Max | Output Unit |
|---|---|---|---|---|
| 0 | 5 | 4 | 20 | mA |
| 0 | 10 | 4 | 20 | mA |
| 0 | 20 | 4 | 20 | mA |
| 0 | 30 | 4 | 20 | mA |
| 0 | 50 | 4 | 20 | mA |
| 0 | 75 | 4 | 20 | mA |
| 0 | 100 | 4 | 20 | mA |
| 0 | 150 | 4 | 20 | mA |
| 0 | 200 | 4 | 20 | mA |
| 0 | 300 | 4 | 20 | mA |
