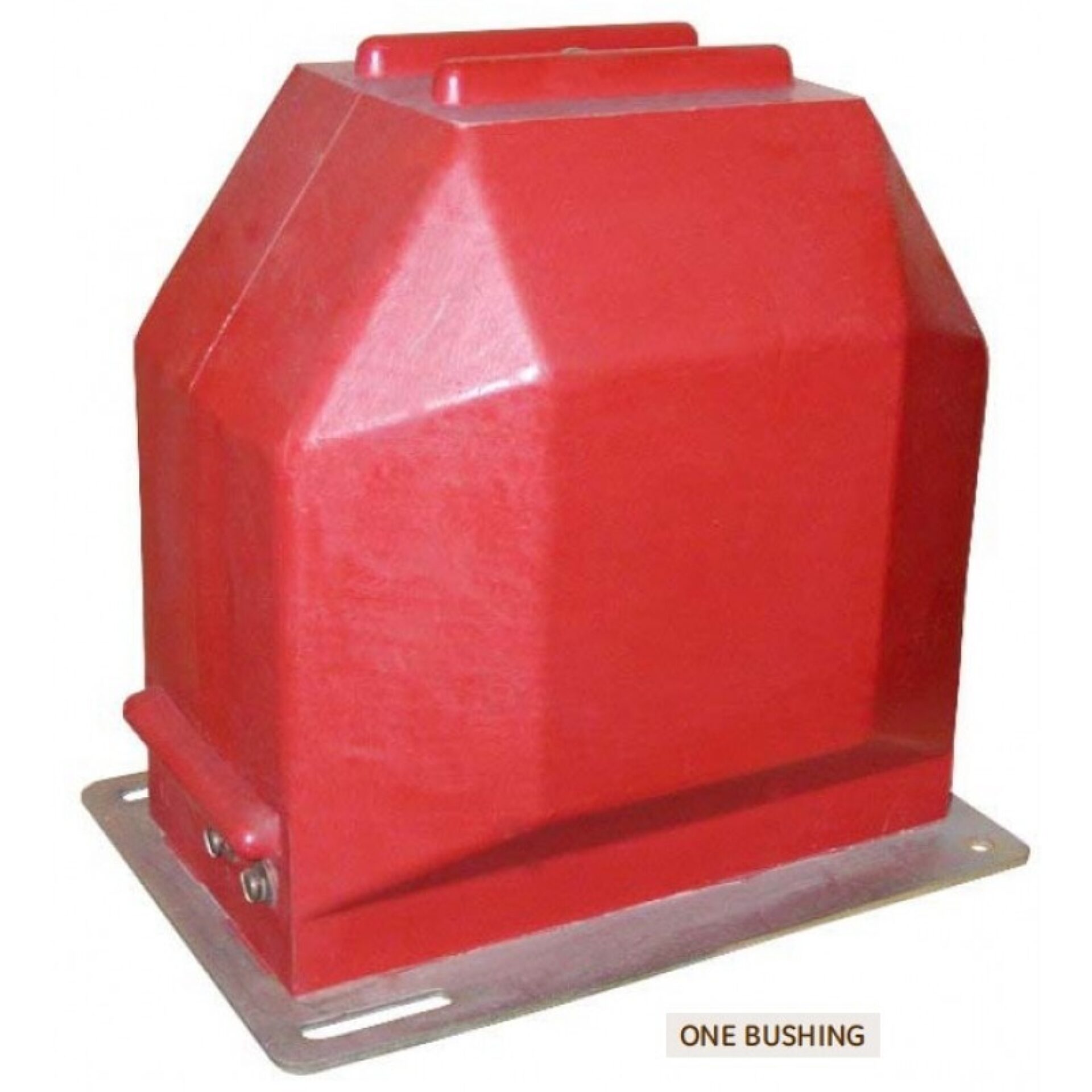

Model PT6-1-125 Medium Voltage Indoor Voltage Transformer
Model PT6-1-125 Medium Voltage Indoor Voltage Transformer
ACCURACY CLASS:
0.3 WXMYZ 1.2ZZ at 100% rated voltage with 120V based ANSI burden.
0.3 WXMY, 1.2Z at 58% rated voltage with 69.3V based ANSI burden.
FREQUENCY: 60 Hz.
MAXIMUM SYSTEM VOLTAGE: 25.5kV, BIL 125kV.
THERMAL RATING:
1500 VA at 30°C amb.
1000 VA at 55°C amb.
WEIGHT: Approximate weight 125 lbs.
Overview
ACCURACY CLASS:
0.3 WXMYZ 1.2ZZ at 100% rated voltage with 120V based ANSI burden.
0.3 WXMY, 1.2Z at 58% rated voltage with 69.3V based ANSI burden.
FREQUENCY: 60 Hz.
MAXIMUM SYSTEM VOLTAGE: 25.5kV, BIL 125kV.
THERMAL RATING:
1500 VA at 30°C amb.
1000 VA at 55°C amb.
WEIGHT: Approximate weight 125 lbs.
Request a Quote for Model PT6-1-125 Medium Voltage Indoor Voltage Transformer
Product Specifications
- Frequency
- 60 Hz
- Insulation BIL
- 125 kV
- Weight
- 125 lbs
- Mounting
- Indoor
- Application
- Metering
- Standards
- ANSI/IEEE C57.13
- Thermal rating at 30 C ambient
- 1500 VA
- Thermal rating at 55 C ambient
- 1000 VA
- Maximum system voltage
- 25.5 kV
- Bushings
- One bushing
- Encapsulation
- Polyurethane resin, vacuum encapsulated
- Primary terminals
- 3/8-16 brass screws
- Secondary terminals
- 1/4-20 brass screws
- Recommended primary fuse
- 25 kV, 0.5E / 1.0E
- Minimum spacing unit to unit
- 1.50 in
- Minimum spacing HV to ground in air
- 8.50 in
- Revenue metering approval (Canada)
- Industry Canada Approval No. AE-0676 Rev.2
Maximum 1000 characters
Specification Table
| Primary V | Secondary V | Ratio (display) | Thermal Rating Factor @ 30°C | Thermal Rating Factor @ 55°C |
|---|---|---|---|---|
| 10200 | 120 | 85:1 | 1500 | 1000 |
| 12000 | 120 | 100:1 | 1500 | 1000 |
| 13200 | 120 | 110:1 | 1500 | 1000 |
| 13800 | 120 | 115:1 | 1500 | 1000 |
| 14400 | 120 | 120:1 | 1500 | 1000 |
| 18000 | 120 | 150:1 | 1500 | 1000 |
| 21000 | 120 | 175:1 | 1500 | 1000 |
| 24000 | 120 | 200:1 | 1500 | 1000 |
